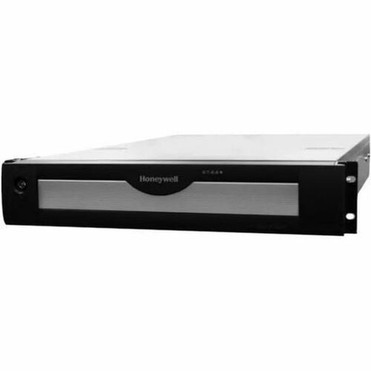

Honeywell MAXPRO HNMSE48D08T Video Surveillance Station - 8 TB HDD - Network Video Recorder - HDMI - DVI - Full HD Recording (HNMSE48D08T)
- MAXPRO HNMSE48D08T Video Surveillance Station
- Rack Rails
Total Number of Channels: 48
Connectivity Technology: Wired
Recording Formats: Full HD
HD Recording: Yes
System Components: Network Video Recorder
Hard Drive Capacity: 8 TB
Optical Drive Type: DVD-Writer
Standard Memory: 16 GB
Video Formats: Motion JPEG,MPEG-4,H.264,H.265
Maximum Resolution: 1920 x 1080
Maximum Frame Rate: 1920 fps
Ethernet: Yes
Remote Management: Yes
USB: Yes
Number of USB Ports: 5
Number of VGA Out: 1
HDMI: Yes
DVI: Yes
Operating System Supported: Windows
Power Consumption: 500 W
Height: 3.50" (88.90 mm)
Width: 17.20" (436.88 mm)
Depth: 26" (660.40 mm)
NVR Weight: 19.50 kg
Minimum Operating Temperature: 41°F (5°C)
Maximum Operating Temperature: 104°F (40°C)
Package Contents:
Country of Origin: United States
Limited Warranty: 3 Year
- Provides the processor and storage enclosure in one chassis, resulting in both space and cost savings
- Rack mountable with six removable drives, SATA hard drives used for operating system partition and video storage
- Record and monitor up to 64 channels at 1920 fps @ 4CIF/VGA or 1920 fps @ 720p HD or 1280 fps @ 1080p (4 Mbps bitrate) HD per MAXPRO NVR SE. Network bandwidth/throughput supported per NVR with Incoming: 160 Mbps, Outgoing: 280 Mbps; Total: 440 Mbps.
- Archival support of 16 channels @ 4 Mbps bitrate each/64 Mbps total archival throughput capacity per MAXPRO NVR SE, with outgoing archival storage throughput of 200 Mbps
- Multi-stream support with maximum 128 streams per MAXPRO NVR SE. Support for configuring one preferred stream for continuous recording and one preferred stream for live video / motion based recording per camera
- Supports one-way audio (for specific IP cameras) with live, playback and clip export on desktop clients for up to 64 IP channels
- Includes HDMI, DVI-D and VGA ports for dual monitor support
- Supports displaying 16 cameras at one time on the NVR local monitor and rendering performance using GPU of up to 4 1080p HD @ 30 fps/2 4K @ 30 fps on local client
- 1 solid-state drive with operating system and six removable bays with storage hard drives (optional 4 TB, 6 TB, 8 TB, 10 TB, 12 TB or 16 TB SATA hard drives)
- Internal storage capacity from 4 TB to 96 TB
- Includes dual 1 GB Network ports optimized to separate record and viewing data to ensure 100% recording and smooth playback even with multiple client connections
- 2U rack mount form factor with locking front bezel. Rack rails included for use with four post racking systems
[custom-specifications]
| Specifications | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | HNMSE48D08T |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Line | MAXPRO |
| Product Model | HNMSE48D08T |
| Product Name | MAXPRO HNMSE48D08T Video Surveillance Station |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 48 |
| Connectivity Technology | Wired |
| Recording Formats | Full HD |
| HD Recording | Yes |
| System Components | Network Video Recorder |
| Storage | |
| Hard Drive Capacity | 8 TB |
| Optical Drive Type | DVD-Writer |
| Memory | |
| Standard Memory | 16 GB |
| Video | |
| Video Formats | Motion JPEG,MPEG-4,H.264,H.265 |
| Maximum Resolution | 1920 x 1080 |
| Maximum Frame Rate | 1920 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Number of USB Ports | 5 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| DVI | Yes |
| Software | |
| Operating System Supported | Windows |
| Power Description | |
| Power Consumption | 500 W |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 26" (660.40 mm) |
| NVR Weight | 19.50 kg |
| Environmental Conditions | |
| Minimum Operating Temperature | 41°F (5°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
3 Year
