Connectivity Technology: CableScanning Capability: Barcode Symbology Supported: 1D:
2D:
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- QR Code
- Micro QR Code
Postal decode symbologies:
- Australian Post
- British Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
Stacked decode symbologies:
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- Macro PDF
- Micro PDF417
- UPC A/E Composites
Image Sensor Type: ImagerScan Pattern: Omni-directionalCable Type Included: USBStand Included: YesReading Angle (Skew): 65°Reading Angle (Pitch): 65°Reading Angle (Roll): 360°Maximum Ambient Light: 100000 luxDrop Specification: 6.0 ft (1.8 m)
Minimum Print Contrast: 15%Minimum Element Resolution (Code 39): 5 mil (0.13 mm)Maximum Element Resolution (Code 39): 10 mil (0.25 mm)Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)Maximum Element Resolution (DataMatrix): 15 mil (0.38 mm)Maximum Element Resolution (PDF417): 10 mil (0.25 mm)Host Interface: USBForm Factor: HandheldProduct Color: BlackHeight: 4.29" (109 mm)Width: 2.68" (68 mm)Length: 6.54" (166 mm)Weight (Approximate): 161 gPackage Contents: - HP Engage Imaging Barcode Scanner II
- Scanner stand
- 2.0 m (6.5 ft) USB Type-A Cable
Ingress Protection (IP) Rating: IP52Platform Supported: PCEnvironmentally Friendly: Yes
[custom-specifications]
SpecificationsManufacturer: HP Inc.
Manufacturer Part Number: 5YQ08AT
Manufacturer Website Address: http://www.hp.com
Brand Name: HP

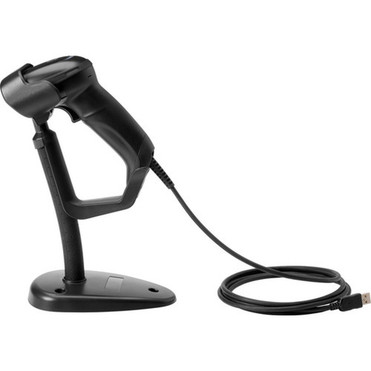

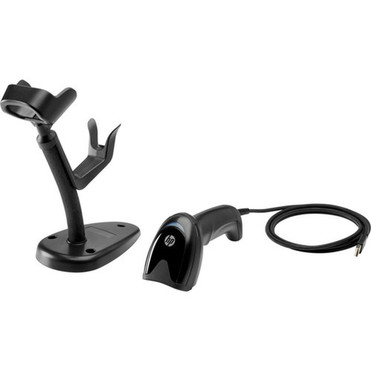

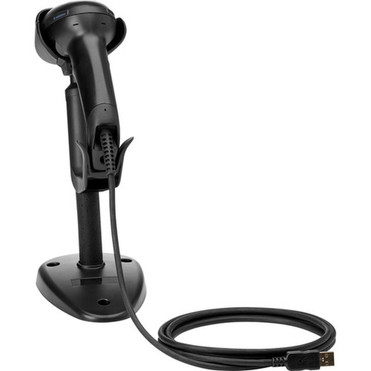

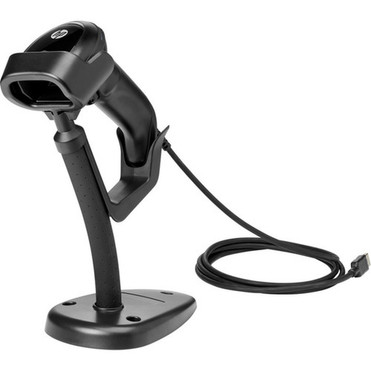

Product Name: Engage Imaging Barcode Scanner II
Product Type: Barcode Scanner
Technical InformationConnectivity Technology: Cable
Scanning Capability:
Barcode Symbology Supported:
1D:
2D:
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- QR Code
- Micro QR Code
Postal decode symbologies:
- Australian Post
- British Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
Stacked decode symbologies:
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- Macro PDF
- Micro PDF417
- UPC A/E Composites
Image Sensor Type: Imager
Scan Pattern: Omni-directional
Cable Type Included: USB
Stand Included: Yes
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Drop Specification:
6.0 ft (1.8 m)
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 10 mil (0.25 mm)
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Maximum Element Resolution (DataMatrix): 15 mil (0.38 mm)
Maximum Element Resolution (PDF417): 10 mil (0.25 mm)
Interfaces/PortsHost Interface: USB
Physical CharacteristicsForm Factor: Handheld
Product Color: Black
Height: 4.29" (109 mm)
Width: 2.68" (68 mm)
Length: 6.54" (166 mm)
Weight (Approximate): 161 g
MiscellaneousPackage Contents:
- HP Engage Imaging Barcode Scanner II

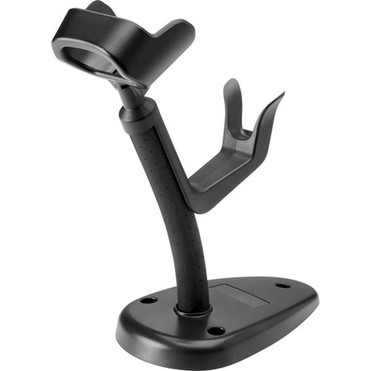

- Scanner stand
- 2.0 m (6.5 ft) USB Type-A Cable
Ingress Protection (IP) Rating: IP52
Platform Supported: PC
Environmentally Friendly: Yes
