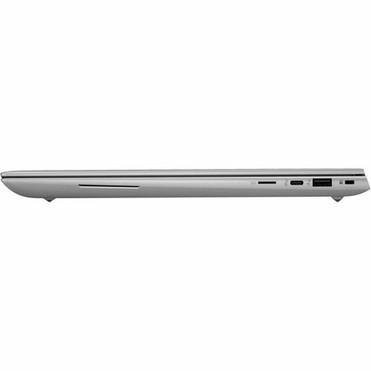

HP AN6D4UT#ABA ZBook Studio G11 16" Touchscreen Mobile Workstation - Intel Core Ultra 7165H vPro - 32 GB RAM - 1 TB SSD - WQUXGA OLED
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the ZBook Studio G11 is powered by an Intel Core Ultra 7 165H processor with 14 cores and 22 threads, capable of reaching up to 5 GHz turbo speeds. This CPU integrates an AI Boost NPU delivering 11 TOPS for accelerating AI workloads, alongside Intel vPro technology for enhanced manageability and security in enterprise environments.
The system is equipped with 32 GB of fast DDR5-5600 memory in a dual-channel configuration, providing ample bandwidth for multitasking and memory-intensive applications. Storage is handled by a 1 TB M.2 SSD, offering quick boot times and rapid data access. Graphics are driven by a combination of an NVIDIA RTX 1000 discrete GPU with 6 GB of dedicated GDDR6 memory and Intel Arc integrated graphics, supporting both high-performance rendering and power-efficient operation.
Key Product Advantages
This mobile workstation stands out with its exceptional display quality, powerful AI-accelerated processing, and professional-grade graphics, all packaged in a highly portable form factor.
Superior Visual Experience
The 16-inch WQUXGA OLED touchscreen delivers 3840 x 2400 resolution with 100% DCI-P3 color gamut, 400 cd/m² brightness, and a 100,000:1 contrast ratio, ensuring vibrant, accurate colors and deep blacks for creative and technical work.
- OLED technology for true blacks
- 100% DCI-P3 color coverage
- Touch-enabled for intuitive interaction
AI-Enhanced Performance
The integrated AI Boost NPU accelerates AI tasks such as video call enhancements, simulation workloads, and smart application features, improving responsiveness and efficiency in modern workflows.
- 11 TOPS NPU performance
- Optimized for AI-rich applications
- Boosts productivity in professional software
Professional Graphics Capability
With an NVIDIA RTX 1000 GPU featuring 6 GB of GDDR6 memory, this workstation handles GPU-accelerated tasks in applications like CAD, video editing, and data visualization with ease, supported by dedicated graphics memory for sustained performance.
- 6 GB dedicated GDDR6 VRAM
- Supports CUDA and RTX technologies
- Ideal for 3D modeling and rendering
Deployment / Use Cases
The HP ZBook Studio G11 is designed for professionals who require desktop-level performance in a mobile package. Its combination of power, display quality, and portability makes it ideal for fieldwork, client presentations, and remote collaboration.
Common deployment scenarios include on-site engineering and architecture projects, where users need to run CAD or BIM software; media production teams editing video or graphics while traveling; and data scientists running complex simulations or machine learning models outside the office. The workstation's vPro support also makes it suitable for IT-managed corporate environments, ensuring secure remote management and compliance.
Creative and Design Work
Perfect for graphic designers, video editors, and 3D artists who need color-accurate displays and powerful rendering capabilities on the go.
Engineering and Technical Analysis
Supports software like AutoCAD, SolidWorks, and MATLAB for engineers and analysts working in field locations or collaborative spaces.
Localization and Operating System
This workstation comes pre-installed with Windows 11 Pro in English, providing a familiar and secure operating environment for business and professional use. The keyboard is localized to English and includes a backlight for comfortable typing in low-light conditions.
Windows 11 Pro offers features like BitLocker encryption, remote desktop access, and enhanced security controls, aligning with enterprise requirements. The English OS and keyboard layout ensure compatibility with standard software and minimize localization issues for users in English-speaking markets.
Relevant factors for this section include AI-powered, Processor Manufacturer, Processor Type, Processor Model. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The ZBook Studio G11 features a slim and lightweight design, measuring 0.71 inches thick and weighing 3.81 pounds, making it one of the most portable workstations in its class. Its dimensions of 14.02 x 9.53 inches provide a compact footprint without sacrificing screen size.
Constructed with durability in mind, it includes a robust chassis suitable for travel. The 6-cell battery supports extended use, and the 150 W power adapter ensures quick recharging. The device also meets environmental certifications like EPEAT Gold and TCO Certified, reflecting HP's commitment to sustainability.
- Width
- 14.02" (356 mm)
- Depth
- 9.53" (242 mm)
- Height
- 0.71" (18 mm)
- Weight
- 11.96 oz (339 g)
What's in the Box
The package includes all essential components to get started right away.
Highlights
- 16-inch WQUXGA OLED touchscreen with 3840 x 2400 resolution and 100% DCI-P3 color gamut
- Intel Core Ultra 7 165H processor with 14 cores, AI Boost NPU (11 TOPS), and vPro technology
- 32 GB DDR5-5600 RAM (expandable to 64 GB) and 1 TB M.2 SSD for fast performance
- NVIDIA RTX 1000 discrete graphics with 6 GB GDDR6 memory for professional applications
- Windows 11 Pro English operating system with English backlit keyboard
- Thunderbolt 4 ports, Wi-Fi 7 (802.11be), and Bluetooth for versatile connectivity
- Fingerprint reader, IR camera, and camera privacy shutter for enhanced security
- Lightweight design at 3.81 lb (1.73 kg) with a slim 0.71-inch profile
- 6-cell battery and 150 W power adapter with USB Power Delivery support
- EPEAT Gold, TCO Certified, and Energy Star certifications for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | AN6D4UT#ABA |
| Brand Name | HP |
| Product Line | ZBook Studio G11 |
| Product Name | ZBook Studio 16 inch G11 Mobile Workstation PC |
| Product Type | Mobile Workstation |
| Technical Information | |
| AI-powered | Yes |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core Ultra 7 |
| Processor Model | 165H |
| Maximum Turbo Speed | 5 GHz |
| Processor Core | Tetradeca-core (14 Core) |
| Processor Threads | 22 |
| vPro Technology | Yes |
| NPU Name | AI Boost |
| NPU Performance | 11 TOPS |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Supported System Memory | 64 GB |
| System Memory Technology | DDR5 SDRAM |
| System Memory Speed | 5600 MHz |
| System Memory Form Factor | SoDIMM |
| Installed Slot Memory | 32 GB |
| Installed Slot Memory Configuration | 2 x 16 GB |
| Total Number of Memory Slots | 2 |
| Number of Occupied Memory Slots | 2 |
| Number of Free Memory Slots | 0 |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Screen Size | 16" |
| Screen Mode | WQUXGA |
| Display Screen Type | OLED |
| Display Screen Technology | BrightView |
| Screen Resolution | 3840 x 2400 |
| Brightness | 400 cd/m² |
| Color Gamut | 100% DCI-P3 |
| Contrast Ratio | 100,000:1 |
| Standard Refresh Rate | 60 Hz |
| Touchscreen | Yes |
| Graphics Controller Manufacturer | NVIDIA,Intel |
| Graphics Controller Model | RTX 1000,Arc Graphics |
| Graphics Memory Capacity | 6 GB |
| Graphics Memory Technology | GDDR6,DDR5 SDRAM |
| Graphics Memory Accessibility | Dedicated,Shared |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| Bluetooth | Yes |
| Built-in Devices | |
| Camera Privacy Shutter | Yes |
| Front Camera/Webcam | Yes |
| Infrared Camera | Yes |
| Finger Print Reader | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 SuperSpeed USB Type-C 10Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4) |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Input Devices | |
| Keyboard Localization | English |
| Keyboard Backlight | Yes |
| Battery Information | |
| Number of Cells | 6-cell |
| Battery Weight | 11.96 oz (339 g) |
| Power Description | |
| Maximum Power Supply Wattage | 150 W |
| AC Adapter Frequency | 47 Hz,63 Hz |
| USB Power Delivery Support | Yes |
| Physical Characteristics | |
| Height | 0.71" (18 mm) |
| Width | 14.02" (356 mm) |
| Depth | 9.53" (242 mm) |
| Weight (Approximate) | 3.81 lb (1730 g) |
| Miscellaneous | |
| Package Contents | ZBook Studio 16 inch G11 Mobile Workstation PC Power Cord AC Adapter |
| Charger Included | Yes |
| Energy Star | Yes |
| Features | Miracast Technology,Low Blue Light |
| Windows Hello Compatible | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What processor does the HP ZBook Studio G11 have, and how does it support AI workloads?
The HP ZBook Studio G11 is equipped with an Intel Core Ultra 7 165H processor, featuring 14 cores and 22 threads with turbo speeds up to 5 GHz. It includes an integrated AI Boost NPU that delivers 11 TOPS of performance, specifically designed to accelerate AI-driven tasks such as video call enhancements, simulations, and smart application features, improving responsiveness and efficiency in professional workflows.
What are the display specifications of this mobile workstation?
This workstation features a 16-inch WQUXGA OLED touchscreen display with a resolution of 3840 x 2400. It offers 100% DCI-P3 color gamut coverage, 400 cd/m² brightness, and a high contrast ratio of 100,000:1. The OLED technology ensures vibrant colors, deep blacks, and excellent viewing angles, making it ideal for creative and technical work that requires color accuracy and detail.
How much memory and storage are included, and can they be upgraded?
The system comes with 32 GB of DDR5-5600 RAM installed in a dual-channel configuration (2 x 16 GB), providing fast data access for multitasking. It supports up to 64 GB of system memory across two SO-DIMM slots, allowing for future upgrades. Storage includes a 1 TB M.2 SSD, which offers quick boot times and ample space for applications and files, with potential for expansion based on available slots.
What graphics capabilities does the NVIDIA RTX 1000 GPU provide?
The NVIDIA RTX 1000 GPU features 6 GB of dedicated GDDR6 memory, delivering strong performance for GPU-accelerated tasks in applications like 3D rendering, video editing, and CAD software. It supports technologies such as CUDA and RTX for enhanced visual quality and efficiency, making it suitable for professional multimedia and engineering workloads where discrete graphics are essential.
What connectivity options are available on the ZBook Studio G11?
Connectivity includes two Thunderbolt 4 ports for high-speed data transfer and display output, one SuperSpeed USB Type-C port with 10 Gbps signaling rate (supporting USB Power Delivery and DisplayPort 1.4), and a total of two USB ports. It also features Wi-Fi 7 (IEEE 802.11be) for fast wireless networking, Bluetooth for peripheral connections, and an integrated fingerprint reader and IR camera for security.
What operating system and keyboard localization are included?
The workstation comes pre-installed with Windows 11 Pro in English, offering advanced features like BitLocker encryption and remote management for business use. The keyboard is localized to English and includes a backlight for typing in low-light conditions, ensuring compatibility with standard software and a user-friendly experience for English-speaking professionals.
