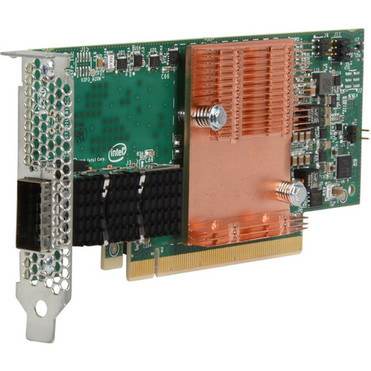

HPE 100Gigabit Ethernet Card, PCI Express 3.0 x16, 829335-B21 - PCI Express 3.0 x16 - 1 Port(s) - Optical Fiber - 100GBase-X - Plug-in (829335-B21)

Marketing Information: Are you looking for a 100Gb Intel® Omni-Path Adapters for your HPE ProLiant XL and DL Server families? HPE 100Gb Intel Omni-Path Adapters are designed for customers who deploy High Performance Computing (HPC) systems with their HPE ProLiant XL and DL Server families in the data center. The HPE 100 Gb 1p OP101 QSFP28 x16 OPA Adapter is available today.

It is a low-profile PCIe card that supports one QSFP28 port with 100 Gb/s performance. By managing the traffic at a fine-grain Flow Control Digits (FLITs) level, the adapters and switches are able to make extremely granular switching decisions to optimize the performance.

Features

HPE 100Gb Intel Omni-Path Adapter for HPE ProLiant XL and DL Servers

The HPE 100Gb Intel Omni-Path Adapters deliver up to 100 Gb/s bandwidth and a sub-microsecond low latency for high performance workloads.

The adapters use an advanced "on-load" design that delivers performance that scales with core count.

The adapters, along with Intel Omni-Path Switches, support advanced features for traffic flow optimization through fine-grain flow control and dynamic lane scaling that enable high resiliency, high performance and optimized traffic movement.

Host Interface: PCI Express 3.0 x16

Total Number of Ports: 1

Expansion Slot Type: QSFP

Media Type Supported: Optical Fiber

Network Technology: 100GBase-X

Form Factor: Plug-in Card

Width: 6.60" (167.64 mm)

Depth: 2.71" (68.83 mm)

Weight (Approximate): 240.4 g

Device Supported: Server
