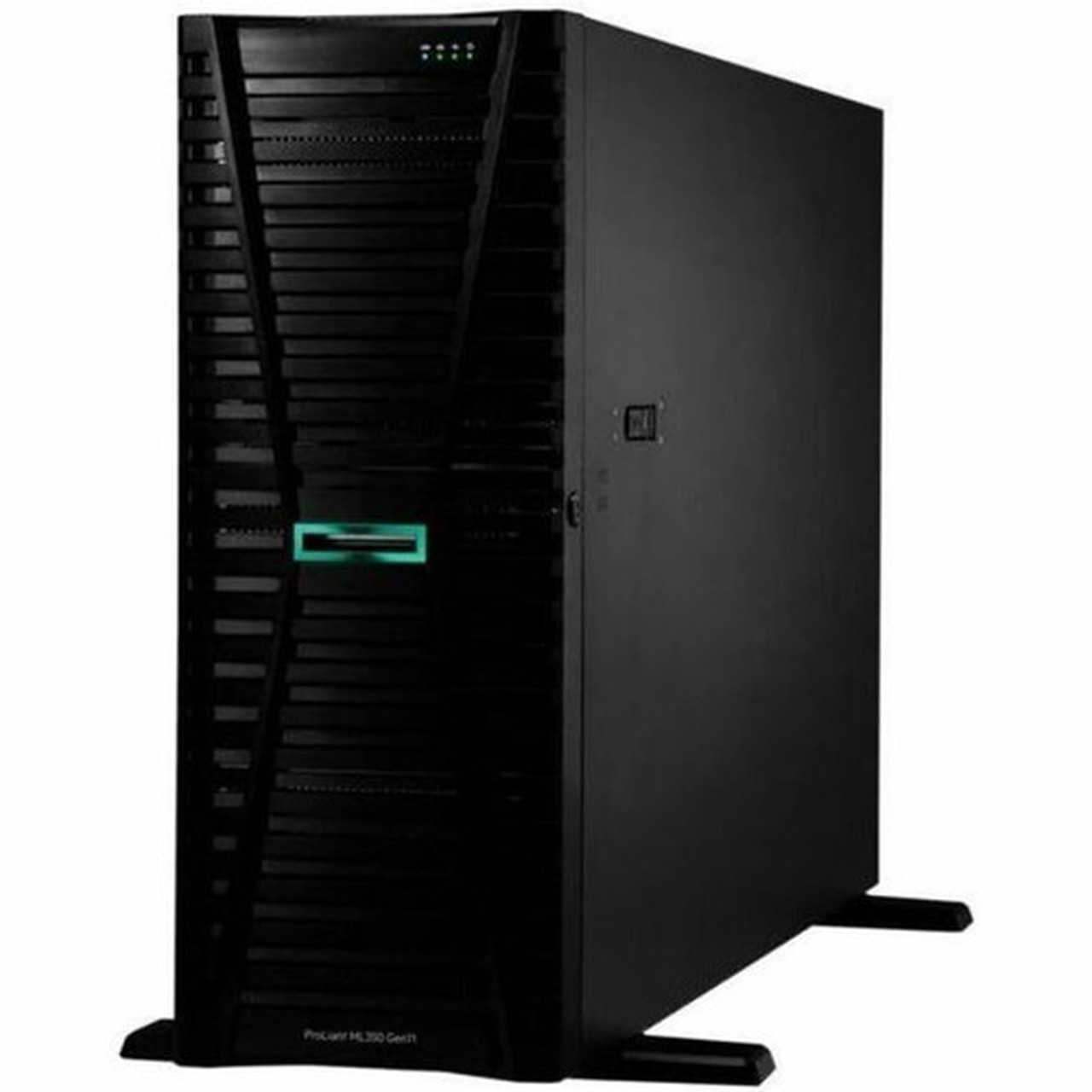

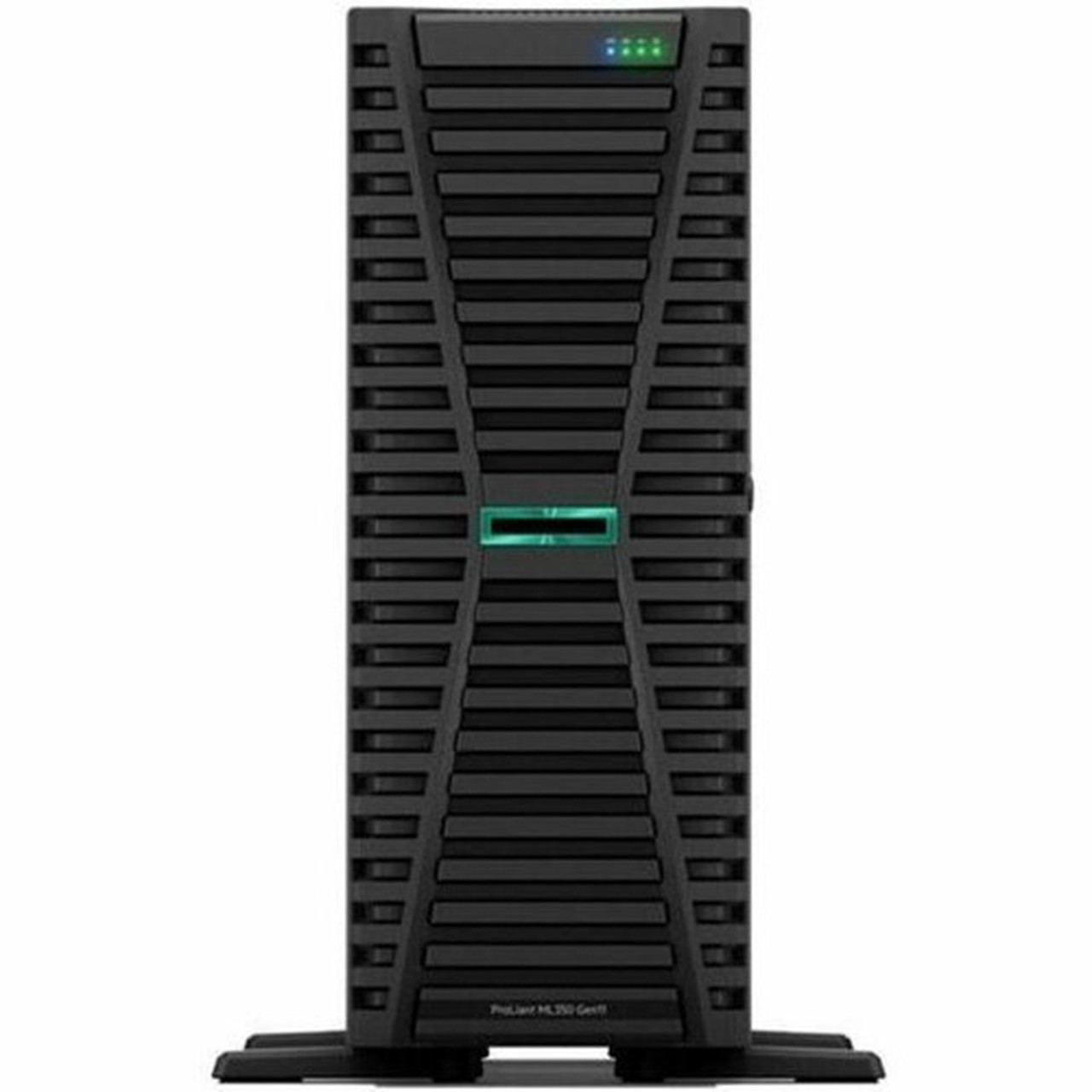

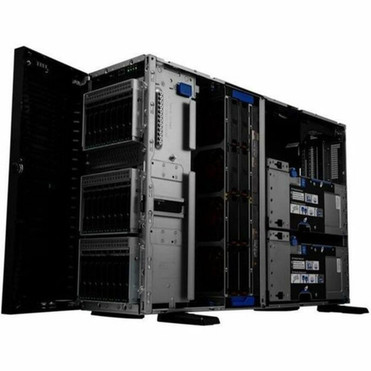

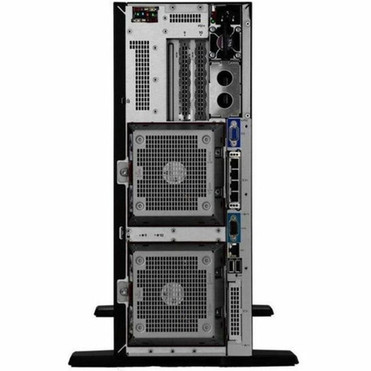

HPE P69313-005 ProLiant ML350 G11 4U Tower Server - Intel Xeon Gold 5416S 2 GHz 16-Core - 64 GB DDR5 RAM - 960 GB SSD - 9 Drive Bays
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ML350 G11 is the Intel Xeon Gold 5416S processor, featuring 16 cores running at 2 GHz with 30 MB of cache. This 4th Gen Xeon processor is paired with the Intel C741 chipset and 64 GB of DDR5 SDRAM operating at high speeds with ECC and registered buffering for data integrity. The memory subsystem supports expansion up to 8 TB across multiple DIMM slots.
Storage is configured with two 480 GB SSDs in a 960 GB total capacity via Serial ATA/600 interfaces. The MR408i-o storage controller provides Serial Attached SCSI and Serial ATA support with hardware RAID capabilities for data protection. The server includes nine total drive bays—eight internal 2.5" small form factor bays that are hot-swappable and one external 5.25" bay—offering substantial storage expansion potential.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Manufacturer, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ProLiant ML350 G11 stands out with its balanced combination of performance, expandability, and manageability. Its tower form factor reduces initial deployment complexity while providing the internal capacity to scale with business needs.
High-Density Storage Expansion
With eight hot-swappable 2.5" drive bays and support for RAID configurations, this server allows for flexible storage scaling and redundancy without downtime.
- Hot-swappable drive bays for easy maintenance
- RAID support for data protection
- Support for both SAS and SATA drives
Enterprise Management Tools
HPE iLO Standard with Intelligent Provisioning provides embedded remote management capabilities, while HPE OneView Standard offers streamlined infrastructure management.
- Remote server management via iLO
- Intelligent Provisioning for simplified deployment
- Optional advanced licensing for expanded features
Redundant Power Architecture
Dual 800W hot-swappable power supplies with redundancy ensure continuous operation even during power supply maintenance or failure scenarios.
- 800W power supplies for ample headroom
- Hot-swappable design for maintenance without shutdown
- Input voltage support for 120V and 230V environments
Deployment / Use Cases
The ML350 G11 is particularly well-suited for small to medium businesses, remote offices, and departmental server rooms where rack space may be limited but performance requirements are substantial. Its tower form factor makes it ideal for environments without dedicated data center infrastructure.
Common deployment scenarios include virtualization hosts running multiple virtual machines, file and print servers for office networks, database servers for business applications, and backup servers with substantial local storage. The server's four PCIe 5.0 expansion slots allow for adding network cards, storage controllers, or specialized accelerators to tailor the system to specific workload requirements.
Virtualization Platform
With 16 processor cores and support for up to 8 TB of memory, this server can host numerous virtual machines for consolidated IT infrastructure.
- 16 cores for VM density
- Large memory capacity for multiple workloads
- Broad OS support including hypervisors
Business Application Server
The reliable performance and storage capacity make this server suitable for database applications, email servers, and line-of-business software.
- SSD storage for responsive database performance
- ECC memory for data integrity
- Gigabit Ethernet for network connectivity
Physical Profile
The ML350 G11 utilizes a 4U tower chassis measuring 18.19" high, 6.85" wide, and 28.03" deep (462 x 174 x 712 mm) with an approximate weight of 81.97 lbs (37.18 kg). This substantial footprint provides ample internal space for components while maintaining a form factor suitable for office environments. The tower design includes front bezel security features and standard padlock/Kensington lock slots for physical security.
- Width
- 6.85" (174 mm)
- Depth
- 28.03" (712 mm)
- Height
- 4U
- Weight
- 81.97 lb (37180 g)
What's in the Box
This server ships with all essential components for immediate deployment.
Package contents include ProLiant ML350 G11 Server 6-foot IEC C-13/C-14 Jumper Cord, ProLiant ML350 G11 Server. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Xeon Gold 5416S 2 GHz 16-core processor for demanding workloads
- 64 GB DDR5 ECC Registered memory with expandability to 8 TB
- 960 GB SSD storage (2 x 480 GB) with Serial ATA/600 interface
- Nine total drive bays including eight hot-swappable 2.5" SFF bays
- MR408i-o storage controller with SAS/SATA support and RAID capabilities
- Four PCIe 5.0 x8 expansion slots for added functionality
- Dual 800W hot-swappable redundant power supplies
- Four Gigabit Ethernet ports for network connectivity
- HPE iLO Standard remote management with Intelligent Provisioning
- 3-year warranty with parts, labor, and next business day onsite support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P69313-005 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | ML350 G11 |
| Product Name | ProLiant ML350 G11 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Xeon Gold |
| Processor Generation | 4th Gen |
| Processor Model | 5416S |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Speed | 2 GHz |
| Cache | 30 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 8 TB |
| Memory Technology | DDR5 SDRAM |
| Number of Occupied Memory Slots | 2 |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Storage | |
| Number of Solid State Drives | 2 |
| Total Solid State Drive Capacity | 960 GB |
| Solid State Drive Interface | Serial ATA/600 |
| Controllers | |
| Controller Type | Serial Attached SCSI (SAS),Serial ATA |
| Controller Model | MR408i-o |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 9 |
| Number of External 5.25" Bays | 1 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 4 |
| PCI Express Details | 4 x8 PCIe 5.0 slots |
| Riser Card | 4 x8 PCIe 5.0 slots with primary riser cage |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses) |
| DisplayPort | Yes |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux,SuSE Linux Enterprise Server,Ubuntu,Citrix XenServer,Windows Server,Oracle Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 800 W |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Package Contents | ProLiant ML350 G11 Server 6-foot IEC C-13/C-14 Jumper Cord |
| Security Features | UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-3 validation (iLO 6 certification in progress) Common Criteria certification (iLO 6 certification in progress) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Tamper-free updates -- components digitally signed and verified Secure Recovery -- recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of NAND TPM (Trusted Platform Module) 2.0 Front bezel key-lock feature -- standard, available in both Tower and Rack models Padlock slot, standard Kensington Lock slot, standard |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Physical Characteristics | |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 18.19" (462 mm) |
| Width | 6.85" (174 mm) |
| Depth | 28.03" (712 mm) |
| Weight (Approximate) | 81.97 lb (37180 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
User Manual
FAQ
What processor does this HPE ProLiant ML350 G11 server include?
This server includes one Intel Xeon Gold 5416S processor with 16 cores running at 2 GHz. It features 30 MB of cache and is based on the 4th Gen Intel Xeon Scalable architecture. The system supports a second processor for expansion, allowing you to double the compute capacity as your needs grow.
How much memory is installed and what is the maximum supported?
The server comes with 64 GB of DDR5 SDRAM installed across two memory slots. This memory features Error Correcting Code (ECC) and registered buffering for enhanced reliability. The system supports expansion up to 8 TB of memory, providing substantial headroom for memory-intensive applications and virtualization workloads.
What storage configuration does this server have?
This configuration includes 960 GB of solid-state storage across two 480 GB SSDs using Serial ATA/600 interfaces. The storage is managed by an MR408i-o controller that supports both Serial Attached SCSI and Serial ATA drives. The system includes hardware RAID support for creating redundant storage configurations to protect against drive failures.
How many drive bays are available for expansion?
The server provides nine total drive bays: eight internal 2.5" small form factor bays that are hot-swappable, and one external 5.25" bay. The hot-swappable capability allows you to replace drives without powering down the server, ensuring continuous operation during maintenance. This design supports substantial storage expansion as your data needs increase.
What remote management features are included?
The server includes HPE iLO Standard with Intelligent Provisioning embedded for out-of-band management. This allows you to monitor, configure, and troubleshoot the server remotely. HPE OneView Standard is also available for download, providing infrastructure management capabilities. Advanced features like HPE iLO Advanced and HPE OneView Advanced are available through optional licenses.
What power supply configuration does this server use?
The system includes two 800W hot-swappable power supplies configured for redundancy. This means if one power supply fails, the other can continue to power the server without interruption. The hot-swappable design allows you to replace a faulty power supply while the server remains operational. The power supplies support both 120V and 230V input voltages.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2 GHz processor for everyday performance and multitasking.
