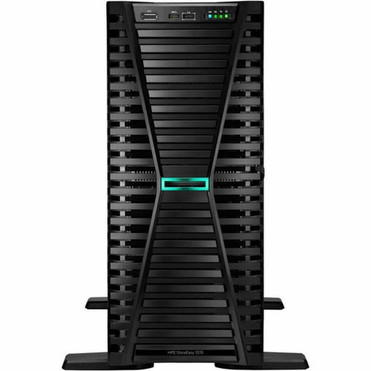

HPE S2A25A StoreEasy 1570 NAS Storage System - 8TB SATA - Intel Xeon Bronze 3408U 8-Core 1. 80GHz - 16GB DDR5 - Windows Server IoT 2022 - 4-Bay Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the StoreEasy 1570 is an Intel Xeon Bronze 3408U processor with eight cores running at 1.80 GHz, paired with 16 GB of DDR5 memory to handle concurrent storage workloads and management tasks efficiently.
Storage is delivered through four 2TB SATA/600 hard drives configured in a 8TB total capacity, with the system supporting up to 112 TB across its four bays. A Serial Attached SCSI (SAS) controller enables hardware RAID across levels 0, 1, 5, 6, 10, 50, 60, 1 ADM, and 10 ADM for flexibility in balancing performance, capacity, and redundancy.
Network connectivity is provided by two Gigabit Ethernet ports, supporting protocols such as CIFS/SMB, NFS, HTTP/HTTPS, FTP/FTPS, and iSCSI for versatile file and block access. The system includes one PCI Express x16 expansion slot for additional network or storage adapters.
Key Product Advantages
Balanced Performance & Capacity
Combines an eight-core Xeon processor with 16 GB of DDR5 memory and 8 TB of fast SATA storage, suitable for departmental file serving, backup targets, or light application hosting.
- Intel Xeon Bronze 3408U 1.80 GHz octa-core CPU
- 16 GB DDR5 SDRAM for responsive storage operations
- 4 x 2TB SATA/600 drives for 8 TB of ready-to-use capacity
Comprehensive Data Protection
Hardware RAID via a SAS controller supports multiple RAID levels, including nested configurations like RAID 50 and 60, offering options for performance, redundancy, or a mix of both.
- SAS controller for hardware RAID acceleration
- Support for RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
- Fault tolerance and improved I/O performance
Protocol Flexibility
Windows Server IoT 2022 provides native support for SMB 3.x, NFS, and iSCSI, allowing the system to serve files to Windows, Linux, and virtualized environments seamlessly.
- CIFS/SMB, NFSv2/v3/v4.1 for file sharing
- iSCSI for block storage to servers and VMs
- HTTP/HTTPS, FTP/FTPS for web and transfer services
Deployment / Use Cases
The HPE StoreEasy 1570 is well-suited for small to medium businesses, remote offices, or departments needing a dedicated, Windows-based storage appliance. Its out-of-the-box configuration with Windows Server IoT 2022 simplifies setup for file sharing, centralized backups, or as a target for virtualization storage.
Common deployment scenarios include acting as a primary file server for user home directories and departmental shares, a backup repository for endpoint or server backups, or an iSCSI target for Hyper-V or VMware environments. The tower form factor and included operating system make it a turnkey solution for IT teams without dedicated storage expertise.
Departmental File Server
Provide centralized, RAID-protected storage for user documents, project files, and shared resources with native Windows permissions and SMB protocol support.
Backup & Archival Storage
Serve as a backup target for software like Veeam or Windows Server Backup, leveraging the 8 TB capacity and expandability to 112 TB for retention needs.
Localization and Operating System
This system comes pre-installed with Microsoft Windows Server IoT 2022, a dedicated edition optimized for embedded and appliance use cases. It delivers full file server, storage management, and networking capabilities without the overhead of desktop GUI components, resulting in a streamlined, secure platform for storage services.
The operating system includes support for the latest SMB 3.1.1 protocol for efficient and secure file sharing, along with NFS for cross-platform compatibility. Management can be performed remotely via standard Windows administration tools, PowerShell, or the Windows Admin Center.
This section brings together practical product details such as Number of Hard Drives Supported, Number of Hard Drives Installed, Total Hard Drive Capacity Supported, Number of Processors Installed, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The StoreEasy 1570 utilizes a tower chassis measuring 18.19" (462 mm) in height, 7.68" (195 mm) in width, and 23.11" (587 mm) in depth, with an approximate weight of 73.19 lb (33.2 kg). This design is optimized for standalone placement on a floor or shelf.
For environments preferring rack mounting, the system supports a 4.5U rack height configuration, allowing integration into standard server racks if needed. Power is supplied by a single 500-watt power supply with a C13 connector, providing efficient operation for the installed components.
- Width
- 7.68" (195 mm)
- Depth
- 23.11" (587 mm)
- Height
- 18.19" (462 mm)
- Weight
- 73.19 lb (33200 g)
Highlights
- Intel Xeon Bronze 3408U octa-core processor at 1.80 GHz for reliable compute performance
- 16 GB of DDR5 SDRAM memory to support concurrent storage operations and management tasks
- 8 TB of installed SATA/600 storage across four 2TB drives, expandable to 112 TB total
- Hardware RAID via SAS controller supporting levels 0, 1, 5, 6, 10, 50, 60, 1 ADM, and 10 ADM
- Dual Gigabit Ethernet ports for network connectivity and load balancing
- Pre-installed Microsoft Windows Server IoT 2022 for out-of-the-box file and block services
- Support for SMB, NFS, iSCSI, HTTP/HTTPS, and FTP/FTPS protocols
- Tower form factor with optional 4.5U rack-mount capability
- PCI Express x16 expansion slot for adding network or storage adapters
- 500-watt power supply with C13 connector for efficient operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | S2A25A |
| Brand Name | HPE |
| Product Line | StoreEasy |
| Product Model | 1570 |
| Product Name | StoreEasy 1570 8TB SATA Performance Storage with Microsoft Windows Server IoT 2022 |
| Product Type | SAN/NAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 4 |
| Number of Hard Drives Installed | 4 |
| Total Hard Drive Capacity Supported | 112 TB |
| Total Hard Drive Capacity Installed | 8 TB |
| Hard Drive Interface | Serial ATA/600 |
| Hard Drive Configuration | 4 x 2TB |
| Clustering Supported | No |
| Processor & Chipset | |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Xeon Bronze |
| Processor Model | 3408U |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 1.80 GHz |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Expansion Slot Type | PCI Express x16 |
| Controllers | |
| Controller Type | Serial Attached SCSI (SAS) |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM |
| Interfaces/Ports | |
| Drive Interface | Serial ATA/600 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Software | |
| Operating System | Windows Server IoT 2022 |
| Management & Protocols | |
| Protocols | CIFS/SMB,SMB 2.0,SMB 2.1,SMB 3.0,SMB 3.0.2,SMB 3.1.1,NFSv2,NFSv3,NFSv4.1,WEBDAV,HTTP,HTTPS,FTP,FTPS,iSCSI |
| Power Description | |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13 |
| Maximum Power Supply Wattage | 500 W |
| Physical Characteristics | |
| Height | 18.19" (462 mm) |
| Width | 7.68" (195 mm) |
| Depth | 23.11" (587 mm) |
| Form Factor | Tower |
| Rack Height | 4.5U |
| Weight (Approximate) | 73.19 lb (33200 g) |
User Manual
FAQ
What processor does the HPE StoreEasy 1570 use?
The system is equipped with an Intel Xeon Bronze 3408U processor, featuring eight cores (octa-core) running at a base clock speed of 1.80 GHz. This processor provides efficient performance for storage management, file serving, and light computational tasks within the NAS environment.
How much storage is installed and what is the maximum capacity?
This configuration includes 8 TB of installed storage, achieved with four 2TB SATA/600 hard drives. The system supports a maximum total hard drive capacity of 112 TB across its four drive bays, allowing for significant expansion as storage needs grow.
What RAID levels are supported by this NAS?
The integrated Serial Attached SCSI (SAS) controller supports a wide range of RAID levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, and 10 ADM. This flexibility allows administrators to choose configurations optimized for performance, redundancy, or a balance of both, depending on the workload requirements.
What operating system is pre-installed?
The HPE StoreEasy 1570 ships with Microsoft Windows Server IoT 2022 pre-installed. This edition is tailored for embedded and appliance use, providing full file server, storage management, and networking capabilities without unnecessary desktop components, resulting in a secure and streamlined platform.
What network connectivity options are available?
The system includes two Gigabit Ethernet (RJ-45) ports, supporting protocols such as CIFS/SMB, NFS, iSCSI, HTTP/HTTPS, and FTP/FTPS. This dual-port setup enables network teaming for increased bandwidth or failover, and supports both file and block storage access for diverse client environments.
Can this system be rack-mounted?
Yes, the StoreEasy 1570 is designed with a tower form factor but supports rack mounting at a 4.5U height. This allows deployment flexibility, whether placed on a floor or integrated into a standard server rack, making it suitable for office or data center environments.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 1.80 GHz processor for everyday performance and multitasking.
