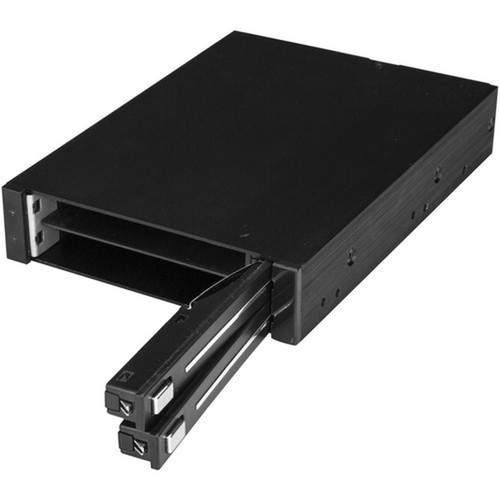

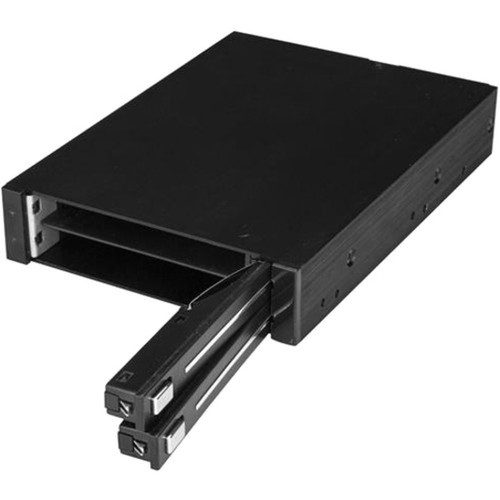

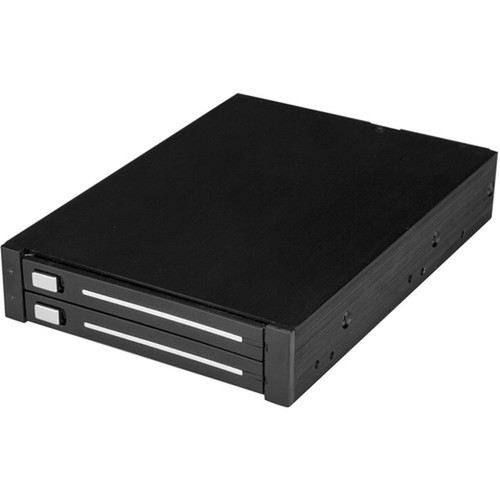

StarTech.com Dual-Bay 2.5in SATA SSD / HDD Rack for 3.5in Front Bay - Trayless SATA Backplane - RAID - Easily connect and hot swap two (HSB225S3R)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Dual-Bay 2.5" SATA SSD / HDD Rack for 3.5" Bay - Trayless - RAID
- 1 x SATA Data Cable
- 1 x SATA to LP4 Adapter
- 1 x Installation Screw Kit
- 1 x Quick Start Guide
Number of Hard Drives Supported: 2
Number of Hard Drives Installed: No
Number of Solid State Drive Supported: 2
Number of Solid State Drive Installed: No
Number of Total Expansion Bays: 2
Number of 2.5" Bays: 2
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, Concatenation, JBOD
Host Interface: SATA/600
Height: 1" (25.40 mm)
Width: 4" (101.60 mm)
Depth: 5.50" (139.70 mm)
Form Factor: Internal
Weight (Approximate): 7.76 oz (220 g)
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 2 Year
- SATA III (6Gbps) drive interface, compatible with SATA I, II and III
- Increase drive capacity, performance, or data redundancy, with multiple RAID modes: RAID 0, RAID 1, spanning
- Supports up to two 2.5" SATA SSD/HDDs
- Front-mount bay design for installation into any standard 3.5" front bay
- Trayless design, with hot-swappable bays, makes it easy to swap drives in and out of the mobile rack
- Well-built, durable aluminum construction
- LED indicators for power and activity, to easily monitor your hard drives
- 50,000 insertion rating

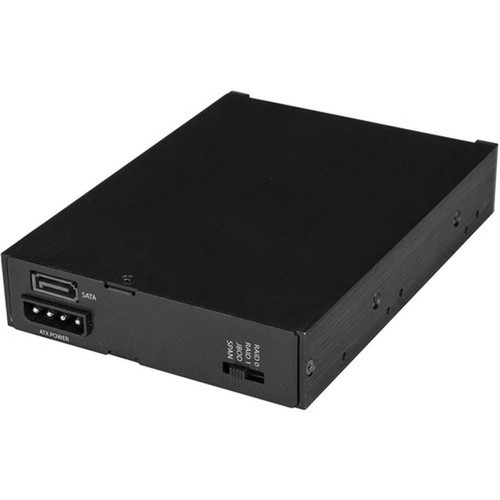

- Single SATA data and power connection
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | HSB225S3R |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Dual-Bay 2.5" SATA SSD / HDD Rack for 3.5" Bay - Trayless - RAID |
| Packaged Quantity | 1 |
| Product Type | DAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 2 |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Supported | 2 |
| Number of Solid State Drive Installed | No |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of 2.5" Bays | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, Concatenation, JBOD |
| Interfaces/Ports | |
| Host Interface | SATA/600 |
| Physical Characteristics | |
| Height | 1" (25.40 mm) |
| Width | 4" (101.60 mm) |
| Depth | 5.50" (139.70 mm) |
| Form Factor | Internal |
| Weight (Approximate) | 7.76 oz (220 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
