StarTech.com IH2006-HDMI-RX IP HDMI Receiver - 4K 60Hz AVoIP KVM Extender - Driverless - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

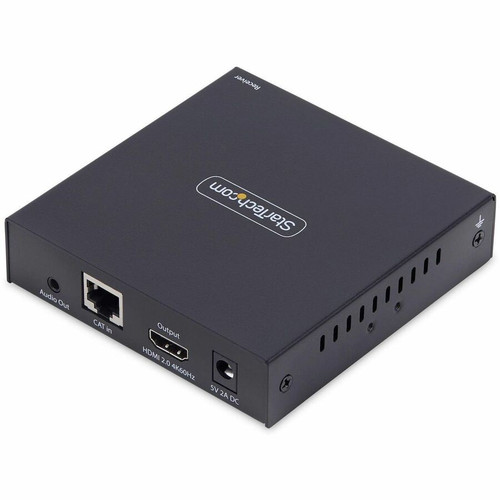

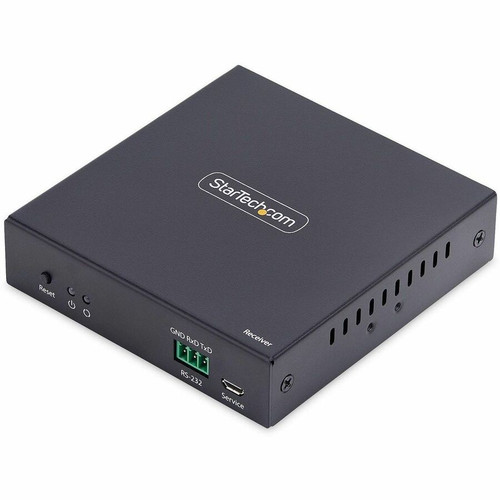

This KVM extender receiver delivers 4K resolution at 60Hz over wired Ethernet connections using TCP/IP protocols. It features one HDMI port for display output, one RJ-45 network port for IP connectivity, and one USB port for peripheral extension. The unit includes a three-wire RS-232 serial port and a 3.5mm audio passthrough port for comprehensive signal distribution.
Power is supplied through a universal 100-240V AC adapter with 10W consumption, supporting international deployment. The metal housing provides durability, while the included mounting kit enables wall or under-desk installation. Rubber feet are included for stable desktop placement when wall mounting isn't required.
Relevant factors for this section include Connectivity Technology, Data Link Protocols, Device Type, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The IH2006-HDMI-RX simplifies AV-over-IP deployment with plug-and-play functionality that eliminates driver dependencies and configuration hurdles. Its scalable architecture allows businesses to expand their video distribution systems incrementally without replacing existing infrastructure.
Zero-Configuration Operation
Works immediately with any operating system and hardware platform, including Intel, AMD, ARM, and Apple Silicon systems. No software installation or network configuration is required for basic functionality.
- Compatible with Windows, macOS, Linux
- Supports all major processor architectures
Comprehensive Signal Extension
Extends not only HDMI video but also USB peripherals, RS-232 serial data, and analog audio through dedicated ports. This ensures complete control and monitoring capabilities at remote locations.
- RS-232 serial extension
- 3.5mm audio passthrough
- USB peripheral support
Professional-Grade Construction
Metal housing withstands industrial environments while the included mounting hardware provides flexible installation options. The universal power adapter supports deployment across North America, Europe, UK, and Australia/New Zealand.
- Durable metal enclosure
- International power compatibility
- Wall or desktop mounting
Deployment / Use Cases
This receiver is specifically designed for environments where source equipment must remain secure while video signals need distribution to multiple remote displays. The TCP/IP network foundation allows deployment across existing Ethernet infrastructure without dedicated AV cabling.
In control room applications, multiple receivers can display the same source content on different monitors for situational awareness. For digital signage networks, the one-to-many capability enables centralized content management with distributed display endpoints. Industrial settings benefit from the extended serial and audio capabilities for equipment monitoring and control.
Control Room Video Distribution
Deploy multiple receivers to display critical source feeds across operator stations while keeping servers and source systems in secure locations. The 4K 60Hz capability ensures detailed visualization for monitoring applications.
Digital Signage Networks
Create scalable signage systems where a single transmitter feeds content to numerous displays throughout a facility. The network-based approach simplifies cabling and allows displays to be added or relocated as needs evolve.
What's in the Box
The package includes everything needed for immediate deployment in various installation scenarios.
Highlights
- Extends 4K 60Hz HDMI signals over TCP/IP networks when paired with IH2006 transmitter
- Driverless operation requires no software installation or configuration
- Scalable one-to-many configuration supports multiple receivers from one transmitter
- Includes RS-232 serial port and 3.5mm audio passthrough for complete signal extension
- Metal housing with mounting kit for wall or under-desk installation
- Universal 100-240V AC power adapter for international deployment
- Compatible with Windows, macOS, Linux and all major hardware platforms
- 2-year limited warranty with RoHS and WEEE environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IH2006-HDMI-RX |
| Brand Name | StarTech.com |
| Product Name | IP HDMI Receiver |
| Packaged Quantity | 1 |
| Product Type | KVM Extender Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Data Link Protocols | TCP/IP |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Host Interface | HDMI |
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Power Description | |
| Input Voltage | 100 V AC,240 V AC |
| Input Voltage Range | 100 - 240 AC |
| Power Consumption | 10 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Wall Mountable |
| Miscellaneous | |
| Package Contents | IP HDMI Receiver 1x Set of Rubber Feet 1x RS-232 Terminal Header 1x Mounting Kit 1x Universal Power Adapter (NA/UK/EU/ANZ) |
| Platform Supported | Mac,Linux |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What transmitter is required to use this HDMI receiver?
This receiver is designed specifically for the StarTech.com IH2006 product series. It must be paired with an IH2006-HDMI-TX transmitter (sold separately) to function. The transmitter connects to your HDMI source, while this receiver connects to your display, with both units communicating over your TCP/IP network infrastructure.
What video resolution and refresh rate does this receiver support?
The IH2006-HDMI-RX supports 4K resolution at 3840 x 2160 pixels with a 60Hz refresh rate when used with a compatible IH2006 transmitter. This ensures high-quality video distribution suitable for detailed visualization in control rooms, digital signage, and professional AV applications.
Does this receiver require special software or drivers?
No, the receiver operates without any software installation or driver configuration. It's compatible with any operating system including Windows, macOS, and Linux, as well as all hardware platforms such as Intel, AMD, ARM, and Apple Silicon systems. This plug-and-play functionality simplifies deployment across heterogeneous environments.
Can I connect multiple receivers to a single transmitter?
Yes, the IH2006 system supports scalable one-to-many configurations. You can connect multiple IH2006-HDMI-RX receivers to a single IH2006-HDMI-TX transmitter, allowing the same HDMI source to be displayed on numerous remote monitors simultaneously. This is ideal for digital signage networks, control rooms, and situations requiring duplicated display output.
What additional signals besides HDMI video does this receiver extend?
Beyond HDMI video, the receiver extends USB peripherals through its USB port, RS-232 serial data through its three-wire terminal header, and analog audio through its 3.5mm audio passthrough port. This comprehensive signal extension allows complete remote control and monitoring capabilities over your network.
What installation options are available for this receiver?
The receiver includes a mounting kit for wall or under-desk installation, with a metal housing designed for secure attachment in professional environments. For desktop use, rubber feet are included to prevent slipping. The universal 100-240V AC power adapter supports deployment in North America, UK, Europe, and Australia/New Zealand regions.
