This transceiver operates on the 1000Base-LX standard, providing a data transfer rate of up to 1000 Mbps over optical fiber cable. It utilizes a single wavelength of light for transmission, making it suitable for long-distance applications where signal integrity over miles is critical. The module is MSA compliant, ensuring interoperability with compatible networking equipment.
The physical design includes compact dimensions of 0.55" width, 0.47" height, and 2.24" depth, with a lightweight construction of approximately 1.31 oz. This small footprint allows for high-density deployments in switch chassis without occupying excessive space.
Key Product Advantages
The Intellinet 507509 transceiver enhances network performance with its high-speed fiber optic capabilities. It supports data transmission rates that are significantly faster than standard Ethernet connections, reducing latency and improving throughput for demanding applications.
Long-Distance Connectivity
With a 10 km reach over single-mode fiber, this transceiver is ideal for connecting network components across campus or metropolitan areas, maintaining signal quality over extended distances.
- 10 km maximum distance
- Single-mode fiber optimization
- Low signal attenuation
Fiber Efficiency
The WDM bi-directional technology enables data transmission and reception over a single fiber strand, effectively doubling the capacity of existing fiber infrastructure and reducing cabling costs.
- Bi-directional over single fiber
- WDM wavelength division
- Infrastructure optimization
Deployment / Use Cases
This SFP transceiver is designed for optical network deployments where high-speed, reliable fiber connectivity is required. It is commonly used in enterprise networks, data centers, and telecommunications environments to interconnect switches, routers, and servers over fiber optic cabling.
Typical applications include backbone connections between network distribution layers, uplinks from access switches to core switches, and inter-building links in campus networks. The module's compatibility with MSA standards and Intellinet network solution switches ensures seamless integration into existing network architectures.
Physical Profile

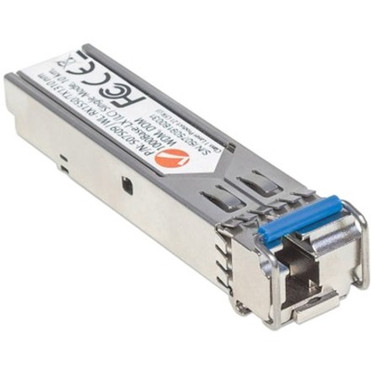

The transceiver features a compact hot-swappable SFP form factor with dimensions of 0.55" (14 mm) width, 0.47" (12 mm) height, and 2.24" (57 mm) depth. Weighing approximately 1.31 oz (37 g), its lightweight design minimizes load on switch chassis while allowing for high-port-density installations. The standard SFP footprint ensures compatibility with a wide range of networking equipment that supports SFP modules.
- Width
- 0.55" (14 mm)
- Depth
- 2.24" (57 mm)
- Height
- 0.47" (12 mm)
- Weight
- 1.31 oz (37 g)
Highlights
- 1000Base-LX technology for Gigabit Ethernet over fiber optic cable
- LC duplex connector for reliable single-mode fiber connections
- WDM bi-directional capability for efficient single-fiber use
- Up to 10 km reach for long-distance network links
- Hot-swappable SFP form factor for easy installation and maintenance
- MSA compliant for interoperability with compatible networking equipment
- Compact dimensions ideal for high-density switch deployments
- Supports data transmission rates up to 1000 Mbps
Specifications
| Specifications | |
|---|---|
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 507509 |
| Brand Name | Intellinet |
| Product Model | 507509 |
| Product Name | Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-LX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-LX |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 0.47" (12 mm) |
| Width | 0.55" (14 mm) |
| Depth | 2.24" (57 mm) |
| Weight (Approximate) | 1.31 oz (37 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant Intellinet Network Solution Switches |
FAQ
What type of fiber optic cable does this SFP transceiver support?
This Intellinet 507509 transceiver supports single-mode optical fiber cable. Single-mode fiber uses a single wavelength of light to carry data over long distances with minimal signal loss, making it suitable for connections up to 10 kilometers. The module is optimized for this fiber type to ensure reliable performance in extended-reach networking applications.
What is the maximum data transfer rate of this transceiver?
The transceiver operates at Gigabit Ethernet speed with a maximum data transfer rate of 1000 Mbps (1 Gbps). It utilizes 1000Base-LX technology, which is specifically designed for fiber optic media, providing high-performance connectivity that is significantly faster than standard copper Ethernet connections for data-intensive network traffic.
Which networking equipment is this SFP module compatible with?
This transceiver is MSA compliant and specifically compatible with Intellinet Network Solution Switches. MSA compliance ensures it meets multi-source agreement standards for physical and electrical characteristics, providing interoperability with a wide range of networking devices that support SFP modules. Always verify compatibility with your specific switch model before deployment.
What does WDM bi-directional mean for this transceiver?
WDM bi-directional refers to wavelength division multiplexing technology that allows data transmission in both directions over a single fiber strand. This transceiver uses different wavelengths for transmitting and receiving signals, effectively doubling the capacity of your fiber infrastructure. This reduces the number of fibers needed for full-duplex communication, optimizing cabling resources and lowering installation costs.
