Aruba JL624A#ABA 8325-48Y8C Layer 3 Switch - 48 x 25GbE + 8 x 100GbE Ports - Modular - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch features 48 dedicated 25 Gigabit Ethernet ports and 8 high-speed 100 Gigabit Ethernet expansion slots, all supporting optical fiber media through QSFP28 and SFP28 interfaces. The total of 56 ports and expansion slots provides substantial connectivity for aggregating server traffic, connecting storage arrays, or linking to backbone networks.
The switch operates at Layer 3 of the OSI model, supporting advanced routing protocols, IP multicast, and quality of service (QoS) features. With a power consumption of 550 watts and support for redundant power supplies, it delivers reliable operation in critical networking environments.
Relevant factors for this section include Modular, Port/Expansion Slot Details, Media Type Supported, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Aruba 8325-48Y8C combines high-density connectivity with enterprise-grade switching features, making it ideal for organizations requiring scalable network infrastructure. Its balanced port mix of 25GbE and 100GbE interfaces supports both current and future bandwidth demands without requiring immediate infrastructure overhaul.
High-Speed Connectivity
With 48x 25GbE ports and 8x 100GbE expansion slots, this switch provides the throughput needed for data-intensive applications, virtualization environments, and high-performance computing clusters.
- 25GBase-X and 100GBase-X network technology
- QSFP28 and SFP28 expansion interfaces
- Optical fiber media support for long-distance runs
Enterprise Management
Full manageability enables granular control over network configuration, security policies, and traffic optimization. Layer 3 capabilities allow for sophisticated routing between VLANs and subnetworks.
- Complete Layer 3 switching functionality
- Advanced traffic management and QoS
- Centralized management and monitoring
Deployment / Use Cases
This switch excels in data center environments where high-bandwidth connectivity and reliable switching are paramount. Its combination of 25GbE server-facing ports and 100GbE uplink capacity makes it suitable for spine-leaf architectures, storage area networks, and cloud infrastructure deployments.
Enterprise campus networks can leverage this switch for core distribution layers, particularly in organizations with significant intra-departmental traffic or multiple server rooms requiring high-speed interconnection. The modular nature allows for gradual expansion as network needs grow.
Data Center Core Switching
Deploy as a spine switch in leaf-spine architectures, providing high-bandwidth connectivity between server racks and storage systems while maintaining low latency for critical applications.
Enterprise Network Aggregation
Use as a distribution layer switch to aggregate traffic from multiple access switches, applying routing policies and quality of service controls before forwarding to the network core.
Physical Profile

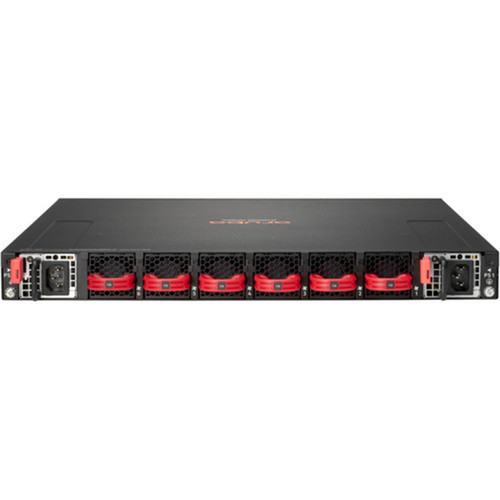

The switch occupies a single rack unit (1U) with dimensions of 21.10" width, 17.26" depth, and 1.70" height, making it compatible with standard 19-inch server racks. Its 22.10 lb weight reflects a solid construction suitable for data center environments. The front-to-back airflow design with included fans ensures proper thermal management in dense rack configurations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.70" (43.18 mm), 21.10" (535.94 mm), 17.26" (438.40 mm), 22.10 lb (10024.39 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 21.10" (535.94 mm)
- Depth
- 17.26" (438.40 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 22.10 lb (10024.39 g)
What's in the Box
The package includes the complete switch system with all necessary components for immediate deployment.
Highlights
- 48 x 25 Gigabit Ethernet ports for high-density server connectivity
- 8 x 100 Gigabit Ethernet expansion slots for high-speed uplinks
- Full Layer 3 switching capabilities for advanced routing
- Modular design with QSFP28 and SFP28 expansion interfaces
- Optical fiber media support for long-distance connections
- Rack-mountable 1U form factor for standard server cabinets
- Redundant power supply support for increased reliability
- 550 W power consumption with efficient operation
- Managed switch with complete configuration control
- 5-year limited warranty for long-term deployment confidence
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL624A#ABA |
| Brand Name | HPE |
| Product Series | 8325 |
| Product Model | 8325-48Y8C |
| Product Name | 8325-48Y8C Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Modular | Yes |
| Port/Expansion Slot Details | 48 x 25 Gigabit Ethernet Expansion Slot,8 x 100 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 25 Gigabit Ethernet,100 Gigabit Ethernet |
| Network Technology | 25GBase-X,100GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 56 |
| Expansion Slot Type | QSFP28,SFP28 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 550 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.70" (43.18 mm) |
| Width | 21.10" (535.94 mm) |
| Depth | 17.26" (438.40 mm) |
| Weight (Approximate) | 22.10 lb (10024.39 g) |
| Miscellaneous | |
| Package Contents | 8325-48Y8C Layer 3 Switch 2 x Power supplies 6 x Front-to-Back Fans |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
FAQ
What are the main port configurations on this Aruba switch?
The Aruba 8325-48Y8C provides 48 fixed 25 Gigabit Ethernet ports and 8 expansion slots that support 100 Gigabit Ethernet connections. All ports utilize optical fiber media through QSFP28 and SFP28 interfaces, offering high-speed connectivity for data center and enterprise networking environments.
Does this switch support Layer 3 routing functionality?
Yes, this is a full Layer 3 switch that supports advanced routing protocols, inter-VLAN routing, policy-based routing, and quality of service features. This enables efficient traffic management between different network segments and subnetworks within enterprise environments.
What is the rack mounting compatibility of this switch?
The switch features a standard 1U rack-mountable form factor with dimensions of 21.10" width, 17.26" depth, and 1.70" height. It is designed for installation in standard 19-inch server racks commonly found in data centers and network closets.
Does this switch include redundant power capabilities?
Yes, the switch supports redundant power supplies, and the package includes two power supply units. This redundancy helps maintain network availability by providing backup power in case one power supply fails, which is particularly important in critical networking environments.
What type of expansion interfaces does this switch support?
The switch supports QSFP28 and SFP28 expansion interfaces through its 8 expansion slots. These interfaces are compatible with optical fiber connections, enabling high-speed uplinks to other switches, routers, or core network infrastructure at 100GbE speeds.
What warranty coverage comes with this Aruba switch?
This switch includes a 5-year limited warranty from the manufacturer. This extended warranty period provides long-term support and protection for your networking investment, which is particularly valuable for infrastructure deployed in mission-critical environments.
