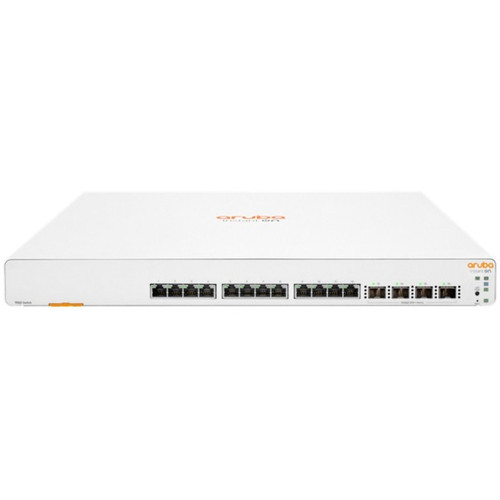

Aruba Networking Instant On Switch 12p 10GBT 4p SFP+ 1960 - 12 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-X, 10GBase-T - 2 - - (JL805A)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Features: Auto Denial of Service (DoS) Prevention,Access Control List
Total Number of Network Ports: 12
Network (RJ-45): Yes
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details: 12 x 10 Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot
Media Type Supported: Optical Fiber,Twisted Pair
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-X,10GBase-T
Maximum Data Transfer Rate: 1.25 GB/s
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Layer Supported: 2
Networking Standards: IEEE 802.3ab,IEEE 802.1x,IEEE 802.3an
Manageable: Yes
Switch Management Type: Smart Managed
Input Voltage: 120 V AC,230 V AC
Power Source: Power Supply
Power Consumption: 160 W
Height: 1.73" (44 mm)
Width: 13.80" (350.50 mm)
Depth: 17.42" (442.50 mm)
Weight (Approximate): 9.48 lb (4300 g)
- Stack port provides an easy and hassle-free way to extend your office network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 12 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
[custom-specifications]
| Specifications | |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL805A |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | Aruba |
| Product Line | Instant On |
| Product Series | 1960 |
| Product Name | Networking Instant On Switch 12p 10GBT 4p SFP+ 1960 |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Auto Denial of Service (DoS) Prevention,Access Control List |
| Interfaces/Ports | |
| Total Number of Network Ports | 12 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 12 x 10 Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X,10GBase-T |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3ab,IEEE 802.1x,IEEE 802.3an |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 160 W |
| Physical Characteristics | |
| Height | 1.73" (44 mm) |
| Width | 13.80" (350.50 mm) |
| Depth | 17.42" (442.50 mm) |
| Weight (Approximate) | 9.48 lb (4300 g) |
[/custom-specifications]
