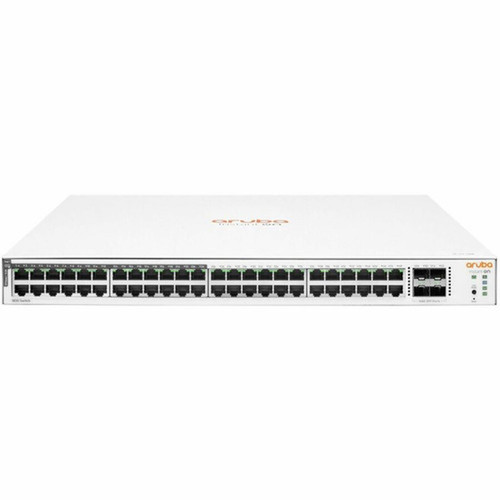

Aruba JL815A#ABA Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch - 48 Port Gigabit Ethernet - Layer 2 Managed
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Layer 2 managed switch supports a comprehensive set of networking standards, including IEEE 802.3af/at for PoE, IEEE 802.3u/ab/z for Gigabit Ethernet, and IEEE 802.1Q/p for VLAN and quality of service. It features 48 Gigabit Ethernet ports, with 24 providing PoE+ (Class 4) to deliver up to 30W per port, and four expansion slots for SFP (mini-GBIC) modules, enabling flexible uplink configurations with optical fiber or twisted pair media.
The switch's 370W PoE budget allows simultaneous powering of multiple PoE devices, while its 462.50W power consumption ensures efficient operation. Management capabilities include IGMP snooping, port mirroring, spanning tree protocols (IEEE 802.1D/w), and link aggregation (IEEE 802.3ad), providing advanced control over network traffic and redundancy.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Aruba Instant On 1830 switch combines high port density with substantial PoE power, making it an ideal solution for modern networks that require both data connectivity and device power. Its cloud-managed platform reduces operational complexity, allowing for remote configuration and monitoring from any location.
Simplified Management
The Instant On mobile app and web interface provide easy setup and management without CLI expertise, featuring automated discovery, configuration wizards, and real-time alerts.
- Cloud-based management
- Mobile app support
- No CLI required
High PoE Capacity
With 24 PoE+ ports and a 370W budget, this switch can power a mix of PoE devices such as access points, IP cameras, and phones, reducing cabling and power outlet needs.
- 24 PoE+ ports
- 370W total budget
- Up to 30W per port
Flexible Uplinks
Four SFP slots support fiber or copper uplinks, enabling high-speed connections to network cores or long-distance runs, with options for 1Gbps SFP modules.
- 4 SFP slots
- Fiber or copper support
- 1Gbps capable
Deployment / Use Cases
This switch is well-suited for small to medium businesses, retail environments, schools, and branch offices that need a reliable, managed switch with PoE capabilities. Its 48-port design supports growing networks, while the PoE budget accommodates wireless deployments and security systems.
Common use cases include powering Aruba Instant On access points for seamless wireless coverage, connecting IP cameras for surveillance systems, and supporting VoIP phone systems in office settings. The 1U rack-mount design integrates easily into existing server racks, and wall-mount options allow for space-constrained installations like wiring closets or kiosks.
Office Network Hub
Deploy as a core switch in office networks to connect workstations, printers, and PoE devices, with cloud management for easy IT oversight.
- Connects up to 48 devices
- PoE for phones and APs
- Cloud-managed
Retail or Hospitality
Use in retail stores or hotels to support point-of-sale systems, guest Wi-Fi access points, and security cameras, with reliable PoE power.
- Supports POS and cameras
- PoE for Wi-Fi APs
- Wall-mountable
Physical Profile
The switch measures 1.73" (43.94 mm) in height, 17.44" (442.98 mm) in width, and 13.82" (351.03 mm) in depth, fitting standard 1U rack spaces. It weighs approximately 10.90 lb (4944.16 g), making it lightweight for easy handling during installation. The form factor supports rack-mounting, cabinet mounting, table-top placement, and wall mounting, offering flexibility for different environments. The compact design ensures efficient use of space in network cabinets while providing adequate ventilation for sustained operation.
- Width
- 17.44" (442.98 mm)
- Depth
- 13.82" (351.03 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 10.90 lb (4944.16 g)
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-box experience.
Highlights
- 48 Gigabit Ethernet ports for high-density connectivity
- 24 PoE+ ports with 370W total budget for powering devices
- 4 SFP uplink slots for flexible fiber or copper expansion
- Layer 2 managed with cloud-based management via Aruba Instant On
- 1U rack-mountable design with versatile mounting options
- Supports IEEE 802.3af/at PoE standards and Gigabit Ethernet
- Lifetime warranty for long-term reliability and support
- Power consumption of 462.50W for efficient operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL815A#ABA |
| Brand Name | HPE |
| Product Line | Instant On |
| Product Series | 1830 |
| Product Name | Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+,4 x Gigabit Ethernet Expansion Slot,24 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ad,IEEE 802.1D,IEEE 802.1w,IEEE 802.3az,IEEE 802.1ab,IEEE 802.3ac |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Power Source | Power Supply |
| Power Consumption | 462.50 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Cabinet Mount,Table Top,Wall Mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.44" (442.98 mm) |
| Depth | 13.82" (351.03 mm) |
| Weight (Approximate) | 10.90 lb (4944.16 g) |
| Miscellaneous | |
| Package Contents | Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch 2 x Post Rack Kit |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many PoE ports does this switch have, and what is the PoE budget?
This switch has 24 PoE+ (Power over Ethernet Plus) ports, which support the IEEE 802.3at standard for delivering up to 30W per port. The total PoE budget is 370W, allowing you to power multiple PoE devices such as wireless access points, IP cameras, and VoIP phones simultaneously without overloading the switch.
What types of uplink options are available with the SFP slots?
The switch includes four SFP (Small Form-factor Pluggable) slots, also known as mini-GBIC slots. These support SFP modules for Gigabit Ethernet connections over optical fiber or copper twisted pair cables. You can use them for high-speed uplinks to core switches, long-distance fiber runs, or to connect to other network segments, providing flexibility in network design and expansion.
Is this switch manageable, and what management features does it offer?
Yes, this is a Layer 2 managed switch. It offers cloud-based management through the Aruba Instant On platform, which includes features like IGMP snooping for multicast traffic control, port mirroring for network monitoring, spanning tree protocols (STP/RSTP) for loop prevention, and VLAN support (IEEE 802.1Q) for network segmentation. Management can be done via a web interface or mobile app without requiring command-line expertise.
What are the physical dimensions and mounting options for this switch?
The switch measures 1.73 inches in height, 17.44 inches in width, and 13.82 inches in depth, making it compatible with standard 1U rack spaces. It supports multiple mounting options: rack-mountable for server rooms, cabinet mount for enclosed spaces, table-top for desktop use, and wall-mountable for space-constrained installations like wiring closets. It weighs approximately 10.90 pounds for easy handling.
What networking standards does this switch support?
This switch supports a wide range of networking standards, including IEEE 802.3af and 802.3at for PoE, IEEE 802.3u, 802.3ab, and 802.3z for Gigabit Ethernet (1000Base-T and 1000Base-X), IEEE 802.1Q for VLANs, IEEE 802.1p for quality of service, IEEE 802.3ad for link aggregation, and IEEE 802.1D/w for spanning tree protocols. It also supports IEEE 802.3az for energy-efficient Ethernet and IEEE 802.1ab for LLDP.
What is included in the package with this switch?
The package includes the Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch and two post rack kits for easy rack installation. This ensures you have all necessary hardware to mount the switch in a standard rack, providing a complete out-of-box setup without needing additional accessories for basic deployment.
