Marketing Information: Features | Universal Compatibility
Works with Thunderbolt 3, Thunderbolt 4, and USB-C laptops running Windows or macOS. Perfect for hot-desking, mixed deployment environments, and home office use.
Thunderbolt™ Technology
Allows users to transfer up to 40Gbps of data, video, and audio (10Gbps for USB-C 3.2 Gen2 laptops and 5Gbps for USB-C 3.2 Gen1 laptops) using the included 0.8m (2.6 ft.) Thunderbolt 3 cable, for a quick and powerful plug-and-play experience.
Single or Dual 4K Video Output for Thunderbolt-Enabled Devices
Extend visual productivity with the crisp resolution, contrast, and color depth of Ultra HD (Single or Dual 4K @ 60Hz) via the one HDMI 2.0 port and one additional Thunderbolt 3 port. USB-C Alt Mode devices support a single monitor via the HDMI port (DP1.2 at 4K/30Hz and DP1.4 at 4K/60Hz).
96W Power Delivery
Charge any Thunderbolt 3, Thunderbolt 4 or USB-C-enabled laptop quickly and easily (USB-C laptops must support Power Delivery).
Productive Desktop Setup
This 10-port universal docking features multiple ports for connecting peripherals and accessories: two front USB-C 3.2 Gen2 ports (one 5V/1.5A/10Gbps and one 9V/2.22A/10Gbps), four USB-A ports (one front 3.2 Gen2 5V/0.9A/10Gbps, three rear with two supporting 3.2 Gen1 5V/0.9A/5Gbps and one 3.2 Gen2 5V/0.9A/10Gbps), one Gigabit Ethernet port, one audio combo jack, an HDMI 2.0 port, and a Thunderbolt 3 port (when used with USB-C Alt Mode laptops, this Thunderbolt 3 port is downgraded to USB 2.0 and does not support video or daisy chaining features).
Horizontal and Vertical Placement Options
Designed to support horizontal and vertical placement on the desktop.
Free Kensington DockWorks™ Software
For the best connection, performance, and security from your Kensington dock.
Three-Year Warranty
Rest assured knowing you're covered by Kensington.
More from the Manufacturer

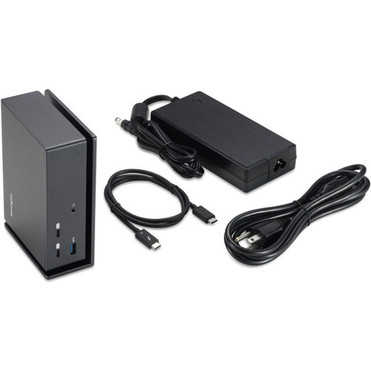

Connectivity Technology: WiredSupported Resolutions: 4096 x 2160Screen Mode Supported: 4KMemory Card Reader: NoEthernet Technology: Gigabit EthernetHost Interface: Number of USB 3.2 Gen 1 Type-A Ports: 3Number of USB 3.2 Gen 2 Type-A Ports: 1Number of USB Type-C Ports: 2USB Type-C: YesUSB Type-A: YesNumber of RJ-45 Ports: 1Network (RJ-45): YesDisplayPort: YesDisplayPort Version: 1.4Headphone/Microphone Combo Port: YesNumber of HDMI Ports: 1HDMI: YesHDMI Version: 2.0Thunderbolt: YesNumber of Thunderbolt 3 Ports: 1Operating System Supported: Maximum Power Supply Wattage: 96 WPackage Contents: - SD5560T Docking Station
- 0.8m (2.6 ft.) Thunderbolt 3 Cable
Kensington Security Slot: YesTAA Compliant: NoLimited Warranty: 3 Year
