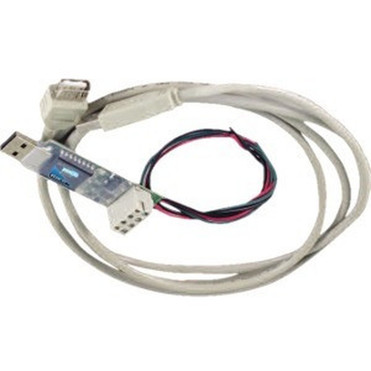

Keyscan USB-SER USB Communication Adapter - RS232 & RS-485 - Access Control - Industrial - Commercial - Plastic Housing
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The USB-SER adapter supports both RS232 and RS485 signal protocols, offering versatility for different serial communication standards. RS232 connectivity uses a 4-conductor 22 AWG shielded cable for point-to-point communication, while RS485 employs a 2-pair 22 AWG CAT5 cable for multi-drop networks, allowing connection to multiple devices over longer distances.
This adapter is fully compliant with USB 1.1 and USB 2.0 specifications, ensuring broad compatibility with modern computing hardware. It operates within a temperature range of 5°C to 70°C (41°F to 158°F), making it suitable for both climate-controlled offices and industrial environments with variable conditions.
Relevant factors for this section include Product Material, Height, Width, Package Contents. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Keyscan USB-SER adapter provides a straightforward solution for modernizing legacy systems without replacing existing infrastructure. Its dual-protocol support eliminates the need for multiple adapters in mixed-environment deployments, while the USB-powered design reduces cable clutter and power requirements.
Protocol Flexibility
Simultaneous support for both RS232 and RS485 protocols allows integration with diverse equipment ranging from access control panels to industrial PLCs and commercial point-of-sale systems.
- RS232 for direct device connections
- RS485 for network-style installations
- No protocol switching required
Simplified Deployment
Plug-and-play installation with included extension cable and driverless operation on supported Windows versions reduces setup time and technical overhead.
- No external power needed
- Extended reach with included cable
- Minimal configuration required
Environmental Durability
The plastic housing and wide operating temperature range ensure reliable performance in both office environments and industrial settings with less controlled conditions.
- Wide temperature tolerance
- Durable construction
- Suitable for varied environments
Deployment / Use Cases
The USB-SER adapter is specifically designed for access control system integration, enabling communication between modern Windows-based management software and legacy Keyscan control boards (PC109x or later). This allows facilities to maintain their existing access control hardware while upgrading to current computer systems and software platforms.
Beyond access control, this adapter serves industrial automation applications where PLCs, sensors, or machinery use serial communication. It's equally valuable in commercial settings for connecting point-of-sale systems, time clocks, or other serial-based equipment to modern computers. The compact form factor makes it ideal for space-constrained installations such as control cabinets, server racks, or behind-desk deployments.
Access Control Modernization
Bridge older Keyscan access control panels to current Windows computers running management software, extending the life of existing security infrastructure.
Industrial Equipment Integration
Connect serial-based industrial devices to monitoring or control computers for data collection, remote management, or system integration.
Physical Profile
The adapter features a compact plastic housing measuring 2.76 inches (70 mm) in height and 0.75 inches (19 mm) in width. This slender profile allows installation in tight spaces within control panels, behind equipment, or alongside computer workstations. The lightweight construction and durable plastic material make it suitable for both permanent installations and temporary deployments where equipment may be relocated between sites.
- Width
- 0.75" (19 mm)
- Height
- 2.76" (70 mm)
What's in the Box
Each package contains the complete solution for immediate deployment.
Package contents include USB-SER USB Communication Adapter, 1 x 6ft (1.8m) USB extension cable. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Supports both RS232 and RS485 serial communication protocols
- USB 1.1 and USB 2.0 compliant for broad computer compatibility
- Powered directly through PC/laptop USB port - no external power required
- Compatible with Windows 10, 8, Vista, and 7 Professional/Enterprise/Ultimate
- Designed for access control, industrial, and commercial applications
- Works with Keyscan control boards (PC109x or later)
- Includes 6-foot USB extension cable for flexible positioning
- Compact plastic housing measures 2.76" x 0.75" (70mm x 19mm)
- Operating temperature range: 5°C to 70°C (41°F to 158°F)
- Plug-and-play installation with included components
Specifications
| Specifications | |
|---|---|
| Manufacturer | dormakaba Holding |
| Manufacturer Part Number | USB-SER |
| Brand Name | Keyscan |
| Product Model | USB-SER |
| Product Name | USB-SER USB Communication Adapter |
| Packaged Quantity | 1 |
| Product Type | USB Communication Adapter |
| Physical Characteristics | |
| Product Material | Plastic |
| Height | 2.76" (70 mm) |
| Width | 0.75" (19 mm) |
| Miscellaneous | |
| Package Contents | USB-SER USB Communication Adapter 1 x 6ft (1.8m) USB extension cable |
| Additional Information | Specifications: Input Power Requirements: Powered through PC/Laptop USB port Operating temperatures: 5° to 70°C (41° to 158°F) USB Compliant: USB 1.1 or USB 2.0 Cable: RS-232: 4 conductor 22 AWG shielded cable RS-485: 2 pair 22 AWG CAT5 cable Signal Protocols : RS232 & RS-485 |
| Application/Usage | Access Control,Industrial,Commercial |
| Compatibility | control board (PC109x or later) OS Compatibility: Windows 10 Windows 8 Windows Vista Windows 7-Professional, Enterprise & Ultimate versions |
FAQ
What communication protocols does the USB-SER adapter support?
The Keyscan USB-SER adapter supports both RS232 and RS485 serial communication protocols. RS232 is typically used for point-to-point connections between a computer and a single device, while RS485 supports multi-drop networks allowing connection to multiple devices over longer distances. This dual-protocol capability makes the adapter versatile for different types of serial equipment in access control, industrial, and commercial environments.
Does this adapter require external power or special cables?
No external power supply is needed. The USB-SER adapter draws power directly from the host computer's USB port, simplifying installation and reducing cable clutter. The package includes a 6-foot USB extension cable for flexible positioning. For serial connections, standard RS232 uses a 4-conductor 22 AWG shielded cable, while RS485 uses a 2-pair 22 AWG CAT5 cable, both of which must be sourced separately based on your specific application requirements.
What types of applications is this adapter designed for?
The USB-SER adapter is specifically designed for access control system integration, industrial automation, and commercial equipment connectivity. In access control, it enables communication between Windows-based management software and legacy Keyscan control boards (PC109x or later). For industrial applications, it connects PLCs, sensors, and machinery to monitoring computers. Commercial uses include point-of-sale systems, time clocks, and other serial-based equipment that needs modern computer connectivity.
What are the physical dimensions and construction of the adapter?
The adapter features a compact plastic housing measuring 2.76 inches (70 mm) in height and 0.75 inches (19 mm) in width. This slender profile allows installation in tight spaces within control panels or behind equipment. The plastic construction provides durability while keeping the unit lightweight. The adapter operates within a temperature range of 5°C to 70°C (41°F to 158°F), making it suitable for both climate-controlled offices and industrial environments.
Is this adapter compatible with older Keyscan access control systems?
Yes, the USB-SER adapter is specifically designed to work with legacy Keyscan control boards, particularly the PC109x series and later models. This compatibility allows facilities to maintain their existing access control hardware while upgrading to current Windows computers and management software. The adapter bridges the communication gap between older serial-based control panels and modern USB-based computer systems, extending the useful life of existing security infrastructure.
What connectivity or interface options are available?
Connectivity details help confirm how Keyscan USB-SER USB Communication Adapter - Access Control, Industrial, Commercial - Plastic (USB-SER) can integrate with your network, accessories, and surrounding peripherals before rollout or replacement planning.
