Black Box LHC211A Pure Networking Fast Ethernet Media Converter - 1 x RJ-45 to 1 x SC Duplex Multi-mode - 2 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter provides a dedicated conversion path between one RJ-45 port for twisted-pair copper and one SC duplex port for multi-mode fiber, supporting full-duplex operation. It handles Fast Ethernet (100 Mbps) traffic, backward compatible with 10 Mbps Ethernet, ensuring seamless integration into legacy or mixed-speed networks. The optical interface uses 1310 nm wavelength, matching standard multi-mode transceivers for consistent signal quality.
Distance support extends to 2 kilometers over fiber, significantly beyond copper's typical 100-meter limit, while maintaining 100 Mbps throughput. The converter accepts 50/125 µm and 62.5/125 µm fiber core/cladding specifications, covering most multi-mode cable types. Power is supplied via an included AC adapter with a barrel connector, delivering stable 5-VDC input for reliable operation in varied electrical environments.
Key Product Advantages
The LHC211A media converter eliminates distance and interference limitations by converting copper Ethernet to fiber optic, enabling longer runs and improved signal integrity in electrically noisy settings. Its dual form factor allows flexible placement as a standalone unit on any flat surface or rack-mounted in standard enclosures, adapting to space-constrained installations.
Extended Reach
Supports fiber runs up to 2 km, far exceeding copper's 100-meter limit, ideal for connecting buildings or remote equipment.
- 2 km maximum distance
- Multi-mode fiber compatibility
- 1310 nm wavelength
Media Flexibility
Converts between RJ-45 twisted pair and SC duplex fiber, bridging different cable types without network reconfiguration.
- RJ-45 to SC conversion
- Optical Fiber and Twisted Pair support
- Duplex SC port
Deployment Ready
Includes power adapter and supports standalone or rack-mountable placement, reducing setup time and hardware costs.
- AC adapter included
- Standalone or rack-mountable
- Compact footprint
Deployment / Use Cases
This media converter is engineered for scenarios where network segments must traverse longer distances or harsh environments. Common applications include extending LAN connections between buildings in a campus, linking industrial control systems across factory floors with high EMI, or integrating fiber backbones into existing copper-based office networks. Its 2 km range makes it suitable for outdoor or cross-campus links where direct copper runs are impractical.
In retail or warehouse settings, the converter can connect remote POS terminals or surveillance cameras over fiber to central switches, ensuring reliable video and data transmission. For IT closets or data centers, the rack-mountable option allows tidy integration into patch panels or network racks, conserving space while providing essential media conversion. The unit's compatibility with standard multi-mode fiber simplifies upgrades or expansions without replacing entire cabling infrastructures.
Physical Profile
The converter features a compact, low-profile design measuring 3.70 inches wide, 2.70 inches deep, and 1 inch high, with a weight of approximately 11.20 ounces. Its small footprint allows discreet placement on desks, shelves, or in tight rack spaces. The standalone form factor includes non-slip feet for stability on flat surfaces, while integrated mounting points enable secure rack installation in standard 19-inch racks using optional brackets. The durable casing protects internal electronics, ensuring reliable operation in typical office or light industrial environments.
- Width
- 3.70" (93.98 mm)
- Depth
- 2.70" (68.58 mm)
- Height
- 1" (25.40 mm)
- Weight
- 11.20 oz (317.51 g)
- Length
- 1310 nm
What's in the Box
The package includes all necessary components for immediate deployment, minimizing additional purchases.
Highlights
- Converts RJ-45 copper to SC duplex multi-mode fiber for extended network reach.
- Supports Fast Ethernet speeds up to 100 Mbps over distances up to 2 km.
- Compatible with 50/125 µm and 62.5/125 µm multi-mode fiber cores.
- Operates at 1310 nm wavelength for optimal multi-mode performance.
- Dual form factor: standalone for desks or rack-mountable for enclosures.

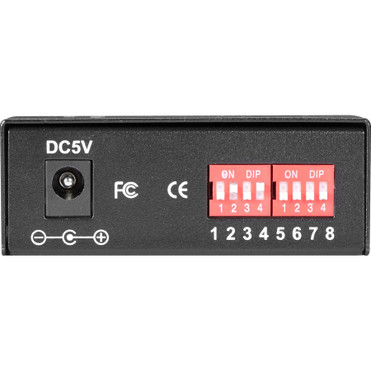

- Includes 5-VDC power adapter with barrel connector for easy power-up.
- Backward compatible with 10 Mbps Ethernet for legacy network integration.
- RoHS and WEEE compliant, environmentally friendly design.
- 3-year limited warranty for reliable long-term use.
- Compact dimensions: 3.70" W x 2.70" D x 1" H, lightweight at 11.20 oz.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LHC211A |
| Brand Name | Black Box |
| Product Line | Pure Networking |
| Product Name | Pure Networking Fast Ethernet (100-Mbps) Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm,62.5/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,100Base-FX |
| Power Description | |
| Power Source | AC Adapter |
| Plug/Connector Type | Barrel |
| Physical Characteristics | |
| Form Factor | Standalone,Rack-mountable |
| Height | 1" (25.40 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 2.70" (68.58 mm) |
| Weight (Approximate) | 11.20 oz (317.51 g) |
| Miscellaneous | |

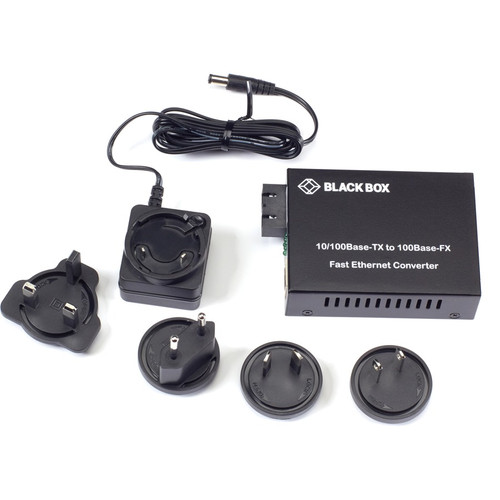

| Package Contents | Pure Networking Fast Ethernet (100-Mbps) Media Converter 5-VDC Power Adapter |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What types of connections does this media converter support?
The converter supports one RJ-45 port for standard twisted-pair copper Ethernet and one SC duplex port for multi-mode fiber optic connections. It converts between these media types, enabling seamless integration of copper and fiber segments in a network.
What is the maximum distance this converter can support over fiber?
It supports distances up to 2 kilometers (1.24 miles) over multi-mode fiber optic cable. This extended range is ideal for connecting remote buildings or equipment beyond the typical 100-meter limit of copper Ethernet.
What fiber specifications are compatible with this converter?
The converter is compatible with multi-mode fiber cables having core/cladding specifications of 50/125 µm or 62.5/125 µm. It operates at a 1310 nm wavelength, which is standard for multi-mode applications, ensuring reliable performance with common fiber types.
Can this converter be rack-mounted?
Yes, it features a dual form factor that supports both standalone placement on flat surfaces and rack-mountable installation in standard 19-inch racks. Mounting points are included for secure rack integration using optional brackets.
What power source does the converter require?
The converter is powered by an included 5-VDC AC adapter with a barrel connector. This adapter provides stable power input, and the unit is designed for continuous operation in typical office or light industrial environments.
What warranty is offered with this media converter?
The product comes with a 3-year limited warranty from Black Box, covering defects in materials and workmanship. This warranty ensures reliable performance and support for long-term deployments in business networks.
