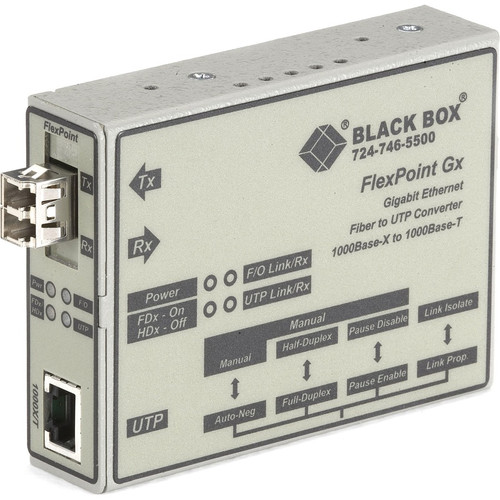

Black Box FlexPoint Modular Gigabit Media Converter Multimode LC 850 Nanometer 220 Meter RJ45 Network Port Ethernet Ports RJ-45 New X LMC1012A
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Description
Total Number of Ports: 2
Network (RJ-45): Yes
Number of LC Ports: 1
LC Port Type: Duplex
Number of Network (RJ-45) Ports: 1
Media Type Supported: Twisted Pair,Optical Fiber
Fiber Mode Supported: Multi-mode
Fiber Optic Cable Wavelength: 850 nm
Maximum Distance Supported: 0.22 km (0.14 Mile)
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T,1000Base-SX
Power Source: Power Supply
Form Factor: Standalone,Rack-mountable,DIN Rail Mountable,Wall Mountable
Height: 1" (25.40 mm)
Width: 3" (76.20 mm)
Depth: 4" (101.60 mm)
Weight (Approximate): 9.60 oz (272.16 g)
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: United States
TAA Compliant: Yes
Limited Warranty: 1 Year
- Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
- Compact size
- Powered by a universal AC power supply or the optional rackmountable chassis.
- Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
- DIP switches enable you to configure port settings.
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LMC1012A |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | FlexPoint |
| Product Name | FlexPoint Modular Media Converter Gigabit Ethernet Multimode 850nm 220m LC |
| Product Condition | New |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| LC Port Type | Duplex |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.22 km (0.14 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-SX |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Standalone,Rack-mountable,DIN Rail Mountable,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 3" (76.20 mm) |
| Depth | 4" (101.60 mm) |
| Weight (Approximate) | 9.60 oz (272.16 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-options]
| Product | Black Box FlexPoint 14-Slot Power Chassis Dual Power Supply - 2 x Number of Power Supplies Supported - Rack-mountable, Wall Mount, Standalone |
| SKU | LMC200-2PS |
| Sale Price | $1791.15 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
