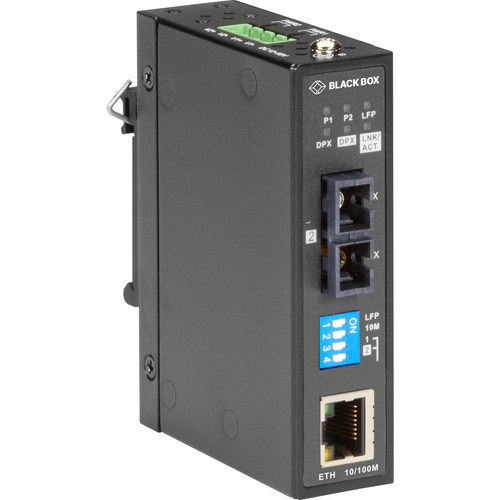

Black Box LMC280 Series Fast Ethernet Industrial Media Converter - Single-Mode SC - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port (LMC282A)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media Type Supported: Twisted Pair,Optical Fiber
Fiber Mode Supported: Single-mode
Fiber Optic Cable Wavelength: 1310 nm
Maximum Distance Supported: 30 km (18.64 Mile)
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-T,100Base-FX

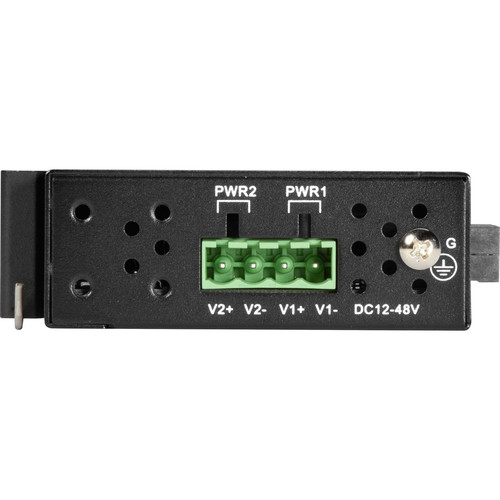

Power Source: DC
Form Factor: Rail-mountable,Wall Mountable
Height: 3.74" (95 mm)
Width: 1.03" (26.16 mm)
Depth: 2.76" (70.10 mm)
Weight (Approximate): 7.68 oz (217.72 g)
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
TAA Compliant: Yes
Limited Warranty: 3 Year
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- Expand your network capabilities with this 2 transceiver/media converter
- With 10/100Base-T technology get up to 100Mbps data transfer rate over twisted pair cable
- The Rail-mountable provides convenient installation
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LMC282A |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Series | LMC280 |
| Product Name | LMC280 Series Fast Ethernet Industrial Media Converter - Single-Mode SC |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 30 km (18.64 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T,100Base-FX |
| Power Description | |
| Power Source | DC |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Wall Mountable |
| Height | 3.74" (95 mm) |
| Width | 1.03" (26.16 mm) |
| Depth | 2.76" (70.10 mm) |
| Weight (Approximate) | 7.68 oz (217.72 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
Additional-pdf3
[/custom-user-manual]
