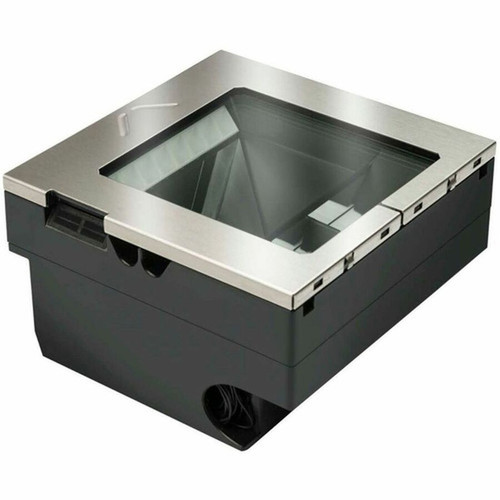

Datalogic M3513-010220 Magellan 3510HSI Barcode Scanner - 1D/2D Imager - Cable USB/Serial - In-Counter Retail - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Magellan 3510HSI employs a 1280 x 800 resolution image sensor with LED illumination for clear barcode capture. It supports linear and omni-directional scan patterns with reading angles of 75° skew, 65° pitch, and 360° roll, allowing flexible positioning and orientation during scanning operations.
The scanner operates with standard range capabilities and can handle maximum ambient light up to 86,100 lux while requiring only 25% minimum print contrast. It captures images in BMP and JPEG formats and includes air electrostatic discharge protection rated at ±25kV for enhanced durability.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This scanner combines robust construction with advanced scanning technology to deliver reliable performance in demanding retail environments. The laser-free design eliminates safety concerns while maintaining high scanning accuracy across various barcode types and conditions.
Comprehensive Barcode Support
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes, plus 2D codes such as Aztec Code, Data Matrix (ECC200), QR Code, and stacked codes including GS1 DataBar composites and PDF417 variants.
- 1D and 2D symbology support
- GS1 DataBar compatibility
- Multiple 2D code formats
Durable Construction
Built to withstand retail environments with IP52 ingress protection against dust and water, plus wide operating temperature range from 50°F to 104°F (10°C to 40°C).
- IP52 protection rating
- Wide temperature tolerance
- ESD protection
Deployment / Use Cases
The Magellan 3510HSI is specifically designed for retail point-of-sale applications where reliable barcode scanning is critical. Its in-counter form factor makes it ideal for integration into checkout counters, while the cable connectivity ensures stable communication with POS systems.
This scanner excels in environments requiring consistent scanning of various barcode types, from traditional UPC codes to modern 2D codes used in loyalty programs, inventory management, and product authentication. The wired connection provides reliable data transmission without wireless interference concerns.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Retail Checkout Integration
Perfect for supermarket, department store, and specialty retail checkout counters where space optimization and reliable scanning are paramount.
Desktop Scanning Stations
Suitable for customer service desks, returns processing areas, and inventory management stations requiring versatile barcode reading capabilities.
Physical Profile
The scanner features a compact black enclosure measuring 5.98" (152 mm) in width and length, with a depth of 3.43" (87 mm). The in-counter design allows for flush mounting in retail checkout surfaces, while the 2.16 lb (980 g) weight provides stability during operation. The black color family ensures visual compatibility with various retail equipment and environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.98" (152 mm), 3.43" (87 mm), 2.16 lb (980 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.98" (152 mm)
- Depth
- 3.43" (87 mm)
- Weight
- 2.16 lb (980 g)
- Length
- 5.98" (152 mm)
Highlights
- 1D and 2D barcode scanning capability
- 1280 x 800 resolution LED imager
- Linear and omni-directional scan patterns
- USB and Serial host interfaces
- Cable connectivity for reliable operation
- In-counter form factor for retail integration
- IP52 ingress protection rating
- Wide operating temperature range (50°F to 104°F)
- Laser-free design for eye safety
- Supports multiple image formats (BMP, JPEG)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | M3513-010220 |
| Brand Name | Datalogic |
| Product Line | Magellan |
| Product Series | 3510HSi |
| Product Name | Magellan 3510HSI Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D : Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D : Aztec Code; Data Matrix (ECC200 only); QR Code Stacked Codes: GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MicroPDF417 PDF417 |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Pattern | Linear,Omni-directional |
| Scanner Range | Standard Range |
| Reading Angle (Skew) | 75° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Image Formats | BMP,JPEG |
| Maximum Ambient Light | 86100 lux |
| Minimum Print Contrast | 25% |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Air Electrostatic Discharge (+/-) | 25kV |
| Interfaces/Ports | |
| Host Interface | USB,Serial |
| Power Description | |
| Maximum Operating Power Consumption | 3.30 W |
| Environmental Conditions | |
| Operating Temperature | 50°F (10°C) to 104°F (40°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | In-counter |
| Color Family | Black |
| Product Color | Black |
| Width | 5.98" (152 mm) |
| Depth | 3.43" (87 mm) |
| Length | 5.98" (152 mm) |
| Weight (Approximate) | 2.16 lb (980 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail |
User Manual
FAQ
What types of barcodes can this scanner read?
The Datalogic Magellan 3510HSI reads both 1D and 2D barcodes. For 1D codes, it autodiscriminates all standard formats including GS1 DataBar linear codes. For 2D codes, it supports Aztec Code, Data Matrix (ECC200 only), QR Code, and various stacked codes including GS1 DataBar composites, expanded stacked, stacked, stacked omnidirectional, MicroPDF417, and PDF417 formats.
What connectivity options does this barcode scanner offer?
This scanner features cable connectivity with both USB and Serial host interfaces. The wired connection provides reliable data transmission without wireless interference, making it ideal for retail environments where stable communication with point-of-sale systems is essential. The cable connectivity also simplifies installation and eliminates battery charging requirements.
Is this scanner suitable for retail checkout environments?
Yes, the Magellan 3510HSI is specifically designed for retail applications. Its in-counter form factor allows for flush mounting in checkout counters, while the IP52 rating provides protection against dust and water ingress common in retail environments. The scanner's wide reading angles and omni-directional scanning capability make it efficient for fast-paced checkout operations.
What is the advantage of the LED imager over laser scanning?
The LED imager provides several advantages over traditional laser scanners. It eliminates the risk of eye injury associated with laser beams, making it safer for both operators and customers. The imaging technology captures the entire barcode image rather than scanning a single line, which improves reading reliability for damaged, poorly printed, or low-contrast barcodes. The 1280 x 800 resolution ensures clear image capture even for small or dense 2D codes.
What environmental conditions can this scanner withstand?
The scanner operates reliably in temperatures from 50°F to 104°F (10°C to 40°C) and can be stored in temperatures as low as -40°F (-40°C) or as high as 158°F (70°C). It handles humidity from 5% to 95% non-condensing and features IP52 ingress protection against dust and water. These specifications make it suitable for various retail environments with different climate conditions.
What are the physical dimensions and installation requirements?
The scanner measures 5.98" (152 mm) in width and length, with a depth of 3.43" (87 mm), and weighs approximately 2.16 lb (980 g). The in-counter design requires appropriate cutout dimensions in the checkout surface for flush mounting. The compact size allows integration into standard retail counter configurations while providing stable operation during scanning tasks.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
