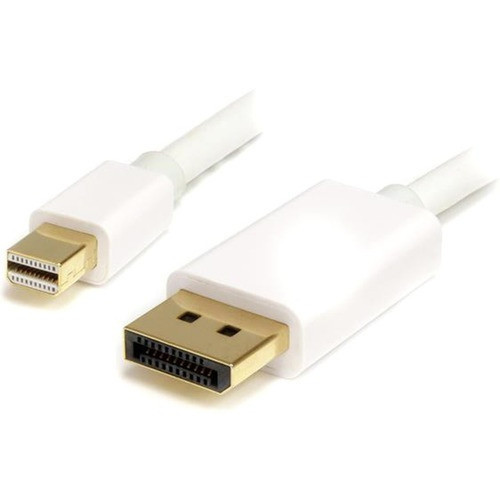

StarTech. com MDP2DPMM2MW 2m - 6. 6ft Mini DisplayPort to DisplayPort 1. 2 Cable - 4K x 2K - 21. 6 Gbps - Gold-Plated - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This cable complies with DisplayPort 1.2 specifications, supporting a data transfer rate of 21.6 Gbps through High Bit Rate 2 (HBR2) signaling. It enables Multi-Stream Transport (MST) for daisy-chaining multiple displays from a single output, enhancing workspace efficiency. The cable also supports 8-channel audio with GTC (Global Time Code) for precise audio synchronization, ensuring immersive audio-visual experiences.
Backwards compatibility with DisplayPort 1.1 devices ensures broad usability across older hardware. The 20-pin connectors on both ends maintain full digital audio/video transmission without compression, preserving original content quality. EMI shielding with Al-Mylar foil and copper braid reduces electromagnetic interference, resulting in cleaner signals and reduced artifacts on connected displays.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable combines high performance with robust construction, making it a reliable choice for professional and consumer environments. Its design prioritizes signal integrity and durability, supported by features that enhance both functionality and longevity.
Enhanced Durability
ABS connector shells with flexible PVC strain relief prevent fraying and damage from bending or rough handling. The metal connector sub-structure adds rigidity and further EMI protection.
- Strain relief design
- Fray-resistant jacket
- Damage-resistant construction
Superior Signal Quality
Gold-plated connectors and comprehensive EMI shielding ensure minimal signal loss and interference. This results in stable video output and clear audio transmission, even over the full 2-meter length.
- Gold plating reduces corrosion
- Al-Mylar and copper braid shielding
- 32 AWG wire for consistent performance
Deployment / Use Cases
Ideal for connecting modern laptops, desktops, and workstations to high-resolution displays, this cable suits various settings from home offices to corporate boardrooms. It is compatible with devices featuring Mini DisplayPort ports, including many business laptops and compact computing systems.
Common applications include linking laptops like the Microsoft Surface Pro series to 4K monitors for detailed design work, connecting professional workstations with AMD FirePro or NVIDIA NVS graphics cards to multiple displays for financial trading or video walls, and integrating projectors or TVs in conference rooms for presentations. The cable also supports 3D stereo content at 2560x1600 resolution and 120Hz for gaming or specialized visualization tasks.
Professional Workstations
Use with AMD FirePro W9100/8100 or NVIDIA NVS 810/510 graphics cards to drive UHD monitors or projectors in design studios, control rooms, or multimedia production environments.
Office and Education
Connect laptops to larger displays in classrooms, training sessions, or meeting rooms for collaborative viewing and presentations, leveraging the cable's reliable performance and secure latching connectors.
Physical Profile
The cable features a clean white PVC jacket that blends with modern office aesthetics while providing flexibility for routing around desks or through cable management systems. Its lightweight design at 2.57 ounces (73 grams) minimizes bulk, making it easy to transport or store. The CMG (Commercial Grade) jacket type ensures suitability for general commercial use, with environmental certifications like EU RoHS compliance indicating adherence to hazardous substance restrictions.
- Weight
- 2.57 oz (73 g)
- Length
- 6.6 ft (2 m)
Highlights
- Supports 4K x 2K resolution (3840x2400) at 60Hz for ultra-high-definition visuals
- 21.6 Gbps bandwidth enables smooth data transfer for video, audio, and Multi-Stream Transport
- Gold-plated 20-pin connectors enhance signal integrity and resist corrosion
- EMI shielding with Al-Mylar foil and copper braid reduces interference for clearer output
- Latching DisplayPort connectors prevent accidental disconnection during use
- Backwards compatible with DisplayPort 1.1 devices for broader connectivity
- Flexible PVC jacket with strain relief resists fraying and damage from bending
- Lifetime warranty provides long-term reliability assurance
- White color suits modern workspace aesthetics and device matching
- Compliant with EU RoHS, REACH, and WEEE environmental standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MDP2DPMM2MW |
| Brand Name | StarTech.com |
| Product Name | 2 m White Mini DisplayPort to DisplayPort 1.2 Adapter Cable - M/M |
| Packaged Quantity | 1 Each |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | DisplayPort/Mini DisplayPort |
| Cable Length | 6.6 ft (2 m) |
| Connector Type on First End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Jacket Type | CMG |
| Device Supported | Audio/Video Device,Monitor,Projector,TV |
| American Wire Gauge | 32 AWG |
| Data Transfer Rate | 21.6 Gbit/s |
| Supported Resolution | 3840 x 2400 |
| Features | Multi-Stream Transport (MST) Support,Flexible,Strain Relief,Fray Resistant,Damage Resistant,EMI Protection |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 2.57 oz (73 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What resolution does this Mini DisplayPort to DisplayPort cable support?
This cable supports up to 4K x 2K resolution (3840 x 2400 pixels) at 60Hz, making it suitable for ultra-high-definition monitors, projectors, and TVs. It handles detailed visuals for tasks like graphic design, video editing, and high-resolution presentations without compression or quality loss.
Is this cable backwards compatible with older DisplayPort versions?
Yes, the cable is backwards compatible with DisplayPort 1.1 devices. It maintains full functionality with older hardware while leveraging DisplayPort 1.2 features like higher bandwidth and Multi-Stream Transport when connected to compatible sources and displays.
What is Multi-Stream Transport (MST) and how does this cable support it?
Multi-Stream Transport allows daisy-chaining multiple displays from a single Mini DisplayPort output, creating extended or mirrored setups without extra hardware. This cable supports MST through its DisplayPort 1.2 compliance, enabling efficient multi-monitor configurations for offices, trading desks, or creative workspaces.
Does the cable include audio support?
Yes, it supports 8-channel audio transmission with GTC (Global Time Code) for precise audio synchronization. This ensures immersive sound for movies, games, and presentations, with timing aligned to video output to prevent lip-sync issues or audio delays.
What are the key durability features of this cable?
Durability features include ABS connector shells, flexible PVC strain relief to prevent fraying, a damage-resistant jacket, and a metal sub-structure for EMI shielding. These elements protect against bending, rough usage, and electromagnetic interference, extending the cable's lifespan in active environments.
What devices are compatible with this Mini DisplayPort to DisplayPort cable?
Compatible devices include laptops with Mini DisplayPort ports (e.g., Microsoft Surface Pro series), professional workstations with AMD FirePro or NVIDIA NVS graphics cards, and displays like monitors, projectors, and TVs with standard DisplayPort inputs. It works with audio/video devices in home, office, boardroom, or classroom settings.
What resolution or display format is specified?
It features a display specification of 3840 x 2400, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
