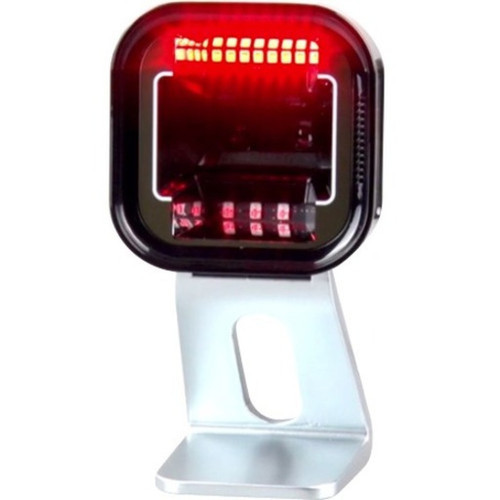

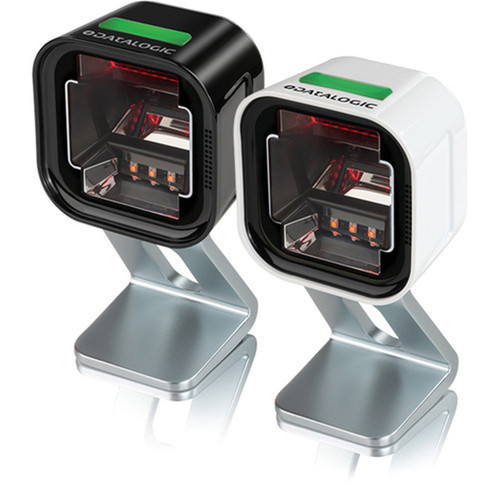

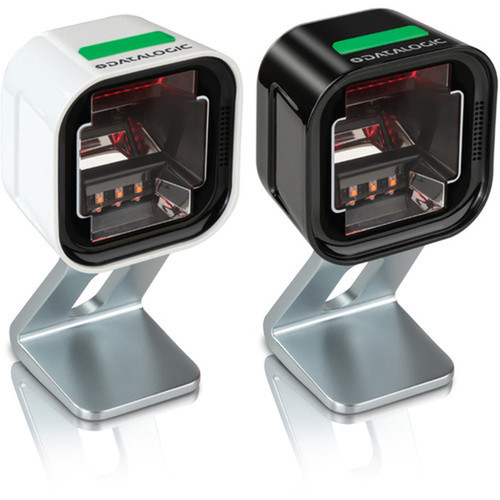

Datalogic MG1501-10211-0200 Magellan 1500i Desktop Barcode Scanner - 1D/2D Imager - 11. 81" Scan Distance - USB/Serial - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the Magellan 1500i utilizes a high-performance imager sensor capable of reading both 1D and 2D barcodes. It autodiscriminates all standard 1D linear codes, including GS1 DataBar™, and supports a wide array of 2D symbologies such as Aztec Code, Data Matrix, MaxiCode, QR Code, and numerous international postal codes. Optional support for Digimarc® Barcodes/GS1 DW Code is available for digital watermarking applications.
The scanner operates effectively at a scanning distance of 11.81 inches (300 mm) and maintains high accuracy with generous reading angles: 75° skew, 65° pitch, and 360° roll. It requires a minimum print contrast of 25% and can function in bright environments up to 86100 lux of ambient light.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Magellan 1500i stands out with its blend of advanced scanning capabilities, industrial-grade construction, and versatile connectivity. It is designed to handle the rigors of continuous use while delivering consistent, high-speed performance.
Comprehensive Symbology Support
Reads virtually every major 1D and 2D barcode type, including stacked codes, postal codes, and optional digital watermarks, eliminating the need for multiple specialized scanners.
Rugged Durability
Engineered to withstand repeated drops from 1.2 meters (4 feet) onto concrete and features an IP52 rating for protection against dust and water splashes, ensuring longevity in harsh environments.
Flexible Connectivity
Offers dual host interface support via USB and serial connections, providing compatibility with a wide range of legacy and modern POS systems, PCs, and terminals.
Deployment / Use Cases
The Datalogic Magellan 1500i is ideally suited for fixed scanning stations where reliability, speed, and durability are critical. Its desktop form factor and cable connectivity make it a permanent fixture in high-volume scanning locations.

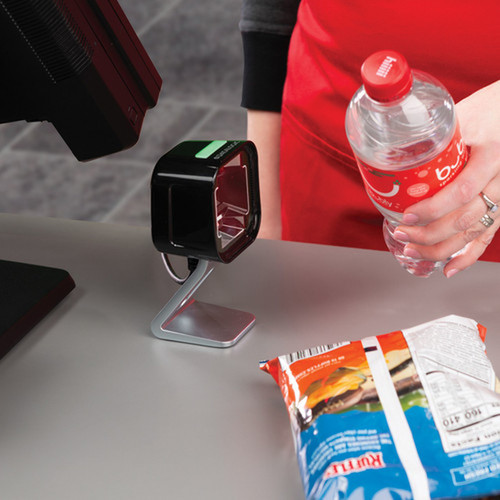

In retail environments, it excels at point-of-sale checkout counters, handling everything from standard UPC codes to promotional QR codes. For industrial and warehouse applications, it can scan inventory labels, shipping manifests, and component tracking codes on production lines. In healthcare settings, it is used for patient ID wristbands, medication labeling, and asset tracking, where accuracy and hygiene (ease of cleaning) are paramount.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile

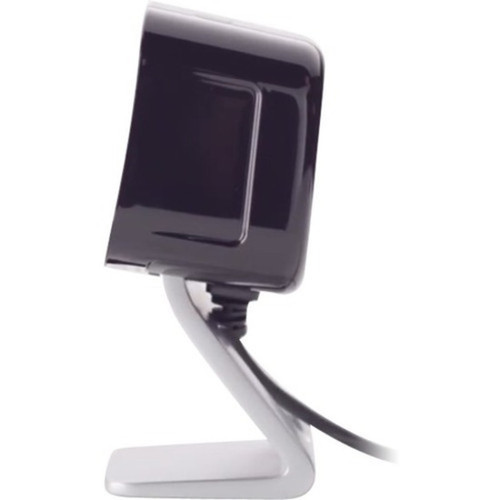

The scanner features a compact, all-black desktop enclosure measuring 8.07 inches in length, 5.51 inches in width, and 4.13 inches in height. Its low-profile design conserves counter space while providing a stable base for hands-free or presentation scanning. The black finish offers a professional appearance that blends seamlessly into various workplace aesthetics.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.13" (104.90 mm), 5.51" (139.95 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.51" (139.95 mm)
- Height
- 4.13" (104.90 mm)
- Length
- 8.07" (204.98 mm)
What's in the Box
The scanner is packaged as a single unit and includes the necessary USB cable for immediate connectivity to your host system.
Package contents include USB. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- High-performance 1D and 2D imager barcode scanner
- Reads a vast range of symbologies including QR, Data Matrix, and postal codes
- Fixed 11.81" (300 mm) scanning distance for consistent performance
- Dual USB and serial host interface connectivity
- Rugged construction withstands drops from 1.2 m / 4 ft onto concrete
- IP52 rating for dust and water splash protection
- Operates in high ambient light up to 86100 lux
- Desktop form factor in black for stable station placement
- Ideal for retail, industrial, and healthcare applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | MG1501-10211-0200 |
| Brand Name | Datalogic |
| Product Line | Magellan |
| Product Model | 1500i |
| Product Name | Magellan 1500i Desktop Barcode Scanner |
| Packaged Quantity | 1 |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D: Aztec Code Data Matrix MaxiCode QR Code Postal Codes: Australian Post British Post Canadian Post China Post IMB Japanese Post KIX Post Planet Code Portuguese Post Postnet Royal Mail Code (RM4SCC) Swedish Post Stacked Codes: GS1 DataBar Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional Micro PDF417 PDF417 Digital Watermarks: Optional support for Digimarc® Barcodes/GS1 DW Code |
| Image Sensor Type | Imager |
| Scanning Distance | 11.81" (300 mm) |
| Cable Type Included | USB |
| Reading Angle (Skew) | 75° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 86100 lux |
| Drop Specification | Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface |
| Minimum Print Contrast | 25% |
| Interfaces/Ports | |
| Host Interface | USB,Serial |
| Physical Characteristics | |
| Form Factor | Desktop |
| Color Family | Black |
| Product Color | Black |
| Height | 4.13" (104.90 mm) |
| Width | 5.51" (139.95 mm) |
| Length | 8.07" (204.98 mm) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail,Industrial,Healthcare |
FAQ
What types of barcodes can the Datalogic Magellan 1500i scanner read?
The Magellan 1500i is a versatile imager scanner that reads both 1D and 2D barcodes. It autodiscriminates all standard 1D linear codes, including GS1 DataBar™. For 2D, it supports Aztec Code, Data Matrix, MaxiCode, QR Code, various international postal codes, stacked codes like PDF417, and offers optional support for Digimarc® digital watermarks. This comprehensive coverage handles most common retail, logistics, and industrial labeling needs.
What is the scanning distance and reading angles for this scanner?
The scanner has a fixed optimal scanning distance of 11.81 inches (300 mm). It features generous reading angles to accommodate poorly presented or angled labels: 75° skew, 65° pitch, and a full 360° roll. This flexibility helps ensure successful first-time reads even when barcodes are not perfectly aligned, improving throughput in fast-paced environments.
How durable is the Magellan 1500i for industrial or retail use?
Built for demanding environments, the scanner meets a drop specification that allows it to withstand repeated drops from 1.2 meters (4 feet) onto a concrete surface. It also carries an IP52 ingress protection rating, meaning it is protected against limited dust ingress and water droplets falling at up to 15 degrees from vertical. This ruggedness makes it suitable for high-traffic areas prone to accidental bumps, spills, or falls.
What connectivity options does this desktop barcode scanner support?
The scanner provides dual host interface support for maximum compatibility. It connects via either USB or serial (RS-232) interfaces. A USB cable is included in the box for immediate plug-and-play setup with modern systems, while the serial port allows integration with legacy POS terminals, industrial controllers, or other specialized equipment that requires serial communication.
In what environments or applications is this scanner typically used?
The Magellan 1500i is designed for fixed scanning stations in retail, industrial, and healthcare settings. Common applications include retail point-of-sale checkout, warehouse inventory management and shipping, manufacturing line component tracking, and healthcare patient identification or medication administration. Its durability, symbology support, and connectivity make it a reliable choice for these high-volume, critical scanning tasks.
What are the physical dimensions and color of the scanner?
The scanner has a compact desktop form factor with dimensions of 8.07 inches in length, 5.51 inches in width, and 4.13 inches in height (204.98 x 139.95 x 104.90 mm). It is finished in black, providing a low-profile, professional appearance that fits well on countertops or workstations in various business environments.
What print speed is listed?
Datalogic Magellan 1500i Desktop Barcode Scanner - Cable Connectivity - 11.81" (300 mm) Scan Distance - 1D, 2D - Imager - USB, Serial (MG1501-10211-0200) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What sheet capacity, media size, or paper handling detail is listed?
Datalogic Magellan 1500i Desktop Barcode Scanner - Cable Connectivity - 11.81" (300 mm) Scan Distance - 1D, 2D - Imager - USB, Serial (MG1501-10211-0200) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
