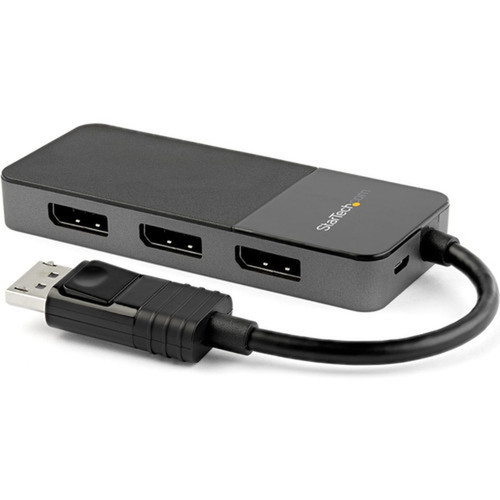

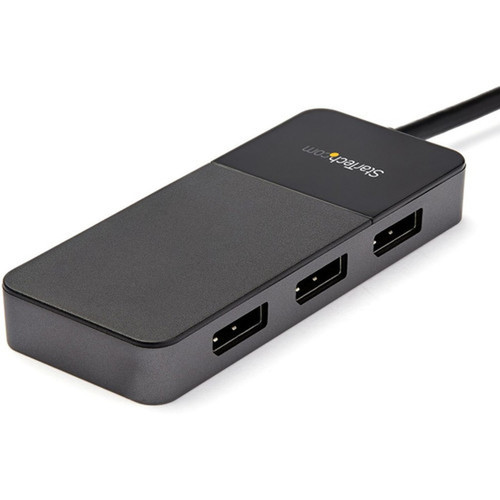

StarTech.com 3-Port DisplayPort 1.4 Splitter, DisplayPort to 3x DP Multi-Monitor Adapter, Triple 4K Computer MST Hub, Windows Multi to (MST14DP123DP)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 3-Port DisplayPort MST Hub - DP 1.4

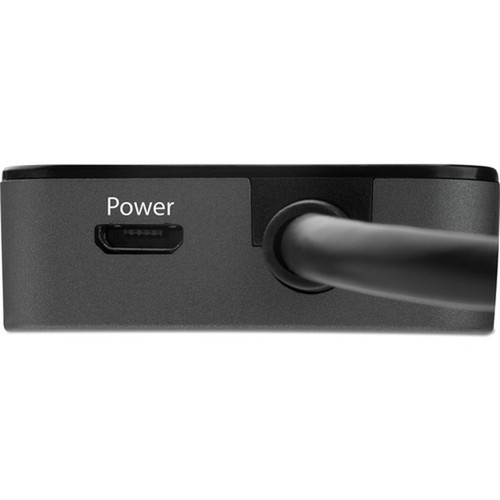

- 1 x Micro-USB Power Cable
Minimum Frequency: 30 Hz
Maximum Frequency: 60 Hz
Maximum Video Resolution: 7680 x 4320
DisplayPort: Yes
USB: Yes
Number of DisplayPort Inputs: 1

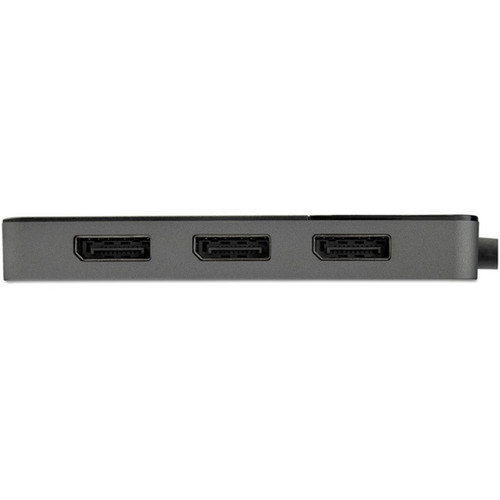

Number of DisplayPort Outputs: 3
Maximum Operating Distance: 78.74" (2000 mm)
Product Color: Black
Product Material: Plastic
Height: 0.60" (15.24 mm)
Width: 4.10" (104.14 mm)
Length: 1.70" (43.18 mm)
Weight (Approximate): 1.94 oz (55 g)
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 3 Year
- MULTI-MONITOR CONFIGURATION: Triple-Monitor DisplayPort 1.4 MST Hub drives up to 2x 4K 30Hz (UHD) + 1x 4K 60Hz DisplayPort monitors using a DP video port on a Windows desktop PC or laptop; Not compatible with macOS
- NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows computer; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Host system must support DP 1.4 / HBR3 / MST; Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays;

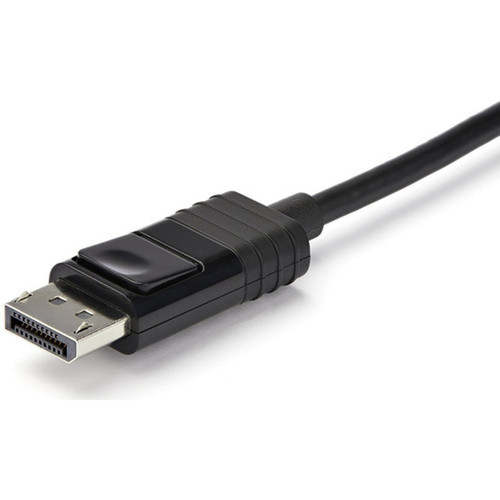

- EASY TO USE: Extend your desktop at your workstation in the office/home office; Latching DisplayPort connector ensures a reliable connection and prevents accidental disconnection; Not compatible with HDMI output ports; USB Power Cable included
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the 3-Port DisplayPort Multi-Monitor Adapter
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MST14DP123DP |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 3-Port DisplayPort MST Hub - DP 1.4 |
| Packaged Quantity | 1 Each |
| Product Type | Signal Splitter |
| Technical Information | |
| Minimum Frequency | 30 Hz |
| Maximum Frequency | 60 Hz |
| Video | |
| Maximum Video Resolution | 7680 x 4320 |
| Interfaces/Ports | |
| DisplayPort | Yes |
| USB | Yes |
| Number of DisplayPort Inputs | 1 |
| Number of DisplayPort Outputs | 3 |
| Media & Performance | |
| Maximum Operating Distance | 78.74" (2000 mm) |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Plastic |
| Height | 0.60" (15.24 mm) |
| Width | 4.10" (104.14 mm) |
| Length | 1.70" (43.18 mm) |
| Weight (Approximate) | 1.94 oz (55 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
