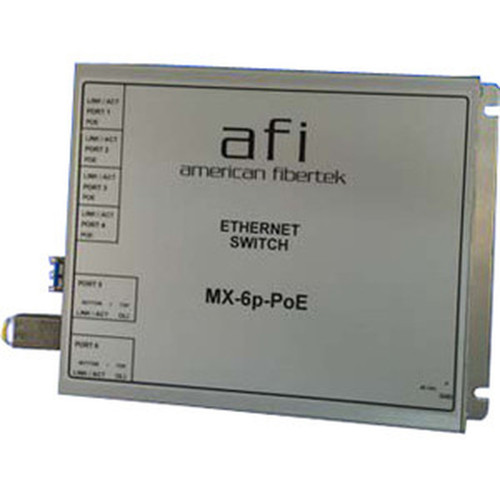

Afi MX-6P-POE Mini Managed PoE Ethernet Switch - 6 Ports (4 Fast + 2 Gigabit) with 2 SFP Slots - Layer 2
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Layer 2 managed switch provides advanced networking features including IGMP snooping for efficient multicast traffic management, port mirroring for network monitoring and troubleshooting, and spanning tree protocol for network redundancy and loop prevention. The switch supports twisted pair cabling for reliable data transmission up to 100 meters, making it compatible with standard network infrastructure.
The port configuration includes four 10/100 Mbps Fast Ethernet ports and two 10/100/1000 Mbps Gigabit Ethernet ports, allowing for flexible connectivity options. Two dedicated SFP slots provide fiber expansion capabilities for longer distance connections or uplinks to other network segments, with non-shared slots ensuring full bandwidth availability for both copper and fiber connections.
Relevant factors for this section include Total Number of Network Ports, Port/Expansion Slot Details, Media Type Supported, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The MX-6P-POE delivers several distinct advantages for network administrators seeking reliable, feature-rich switching in a compact package. Its managed capabilities provide greater control over network traffic and security compared to unmanaged alternatives, while the PoE+ support simplifies deployment of powered devices throughout the network.
Power Over Ethernet Ready
Delivers both data and power up to 25.5W per port, reducing cable clutter and installation complexity for PoE devices.
- Eliminates separate power adapters
- Simplifies device placement
- Reduces installation costs
Dual-Speed Connectivity
Combines Fast Ethernet for legacy devices with Gigabit Ethernet for high-bandwidth applications, providing backward compatibility while supporting modern network demands.
- 4x 10/100 Mbps ports
- 2x 10/100/1000 Mbps ports
- Mixed-speed network support
Fiber Expansion Capability
Two dedicated SFP slots enable fiber connectivity for longer distance runs or uplinks to core network infrastructure.
- Non-shared SFP slots
- Fiber optic compatibility
- Extended distance connectivity
Deployment / Use Cases
The compact size and managed capabilities of the MX-6P-POE make it ideal for various deployment scenarios where space is limited but network functionality cannot be compromised. Its balanced port configuration supports both legacy and modern network devices simultaneously.
Common deployment scenarios include small office networks, retail point-of-sale systems, classroom or lab environments, and distributed network segments in larger installations. The switch's PoE capabilities make it particularly suitable for powering IP surveillance cameras, VoIP phone systems, and wireless access points in locations where power outlets are scarce or inconveniently located.
Small Office / Branch Office
Provides managed switching with PoE support for connecting computers, printers, phones, and wireless access points in limited-space environments.
Network Edge Deployment
Serves as an access layer switch for connecting end devices while providing fiber uplink capabilities to core network infrastructure.
Physical Profile
Measuring just 7.63 inches in height, 5.50 inches in width, and 1.13 inches in depth, the MX-6P-POE features an ultra-compact design that fits easily on desktops, shelves, or in tight network cabinets. The slim profile makes it suitable for installations where space is at a premium, while the built-in power supply eliminates the need for external power bricks that can clutter installation areas.
- Width
- 5.50" (139.70 mm)
- Depth
- 1.13" (28.58 mm)
- Height
- 7.63" (193.68 mm)
Highlights
- 6-port managed Ethernet switch with 4 Fast Ethernet and 2 Gigabit ports
- Power over Ethernet (PoE+) support delivers up to 25.5W per port
- Two dedicated SFP slots for fiber expansion and uplink connectivity
- Layer 2 switching with IGMP snooping, port mirroring, and spanning tree
- Compact design measuring 7.63" H x 5.50" W x 1.13" D
- Built-in power supply for stable voltage delivery
- Supports twisted pair cabling for connections up to 100 meters
- Ideal for small office, retail, and edge network deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | American Fibertek, Inc |
| Manufacturer Part Number | MX-6P-POE |
| Brand Name | Afi |
| Product Model | MX-6p-PoE |
| Product Name | Mini 6 Port Ethernet Switch with PoE |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 6 |
| Port/Expansion Slot Details | 4 x Fast Ethernet Network,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet,Gigabit Ethernet |
| Network Technology | 10/100Base-TX,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | No |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Power Source | Power Supply |
| Physical Characteristics | |
| Height | 7.63" (193.68 mm) |
| Width | 5.50" (139.70 mm) |
| Depth | 1.13" (28.58 mm) |
FAQ
What is the port configuration of the Afi MX-6P-POE switch?
The switch features six total network ports: four 10/100 Mbps Fast Ethernet ports and two 10/100/1000 Mbps Gigabit Ethernet ports. This mixed-speed configuration allows you to connect both legacy devices and modern high-bandwidth equipment simultaneously. Additionally, the switch includes two dedicated SFP slots for fiber optic expansion, providing flexibility for longer distance connections or uplinks to other network segments.
Does this switch support Power over Ethernet (PoE)?
Yes, the MX-6P-POE supports Power over Ethernet Plus (PoE+) with a capability of delivering up to 25.5 watts per port. This allows you to power compatible devices such as IP phones, wireless access points, security cameras, and other PoE-enabled equipment directly through the Ethernet cable, eliminating the need for separate power adapters and simplifying installation in locations where power outlets are not readily available.
What Layer does this switch operate at and what features does it include?
This is a Layer 2 managed switch that provides advanced networking features including IGMP snooping for efficient multicast traffic management, port mirroring for network monitoring and troubleshooting, and spanning tree protocol for network redundancy and loop prevention. These managed capabilities give network administrators greater control over traffic flow, security, and network stability compared to basic unmanaged switches.
Can I use fiber optic connections with this switch?
Yes, the switch includes two dedicated SFP (Small Form-factor Pluggable) slots that support fiber optic transceivers. These non-shared slots allow you to add fiber connectivity for longer distance runs or to create uplinks to other network equipment. The SFP slots are separate from the copper Ethernet ports, ensuring full bandwidth availability for both connection types without performance compromises.
What are the physical dimensions of this switch?
The MX-6P-POE measures 7.63 inches in height, 5.50 inches in width, and 1.13 inches in depth (193.68 mm x 139.70 mm x 28.58 mm). This compact form factor makes it suitable for installations where space is limited, such as small network cabinets, desktop deployments, or wall-mounted installations. The slim design is particularly useful in environments where traditional rack-mounted switches would be impractical due to space constraints.
What type of network environments is this switch best suited for?
This switch is ideal for small to medium network deployments including small offices, retail environments, classrooms, labs, and network edge installations. Its combination of managed features, PoE support, compact size, and mixed-speed port configuration makes it versatile for connecting computers, printers, IP phones, cameras, and wireless access points. The fiber expansion capability also makes it suitable for connecting to larger network infrastructure or extending connections over longer distances.
