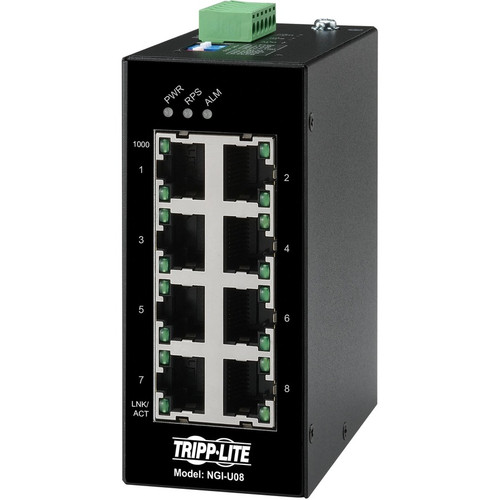

Tripp Lite series NGI-U08 Ethernet Switch - 8 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 5 W Power Consumption (NGI-U08)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Description
- NGI-U08 Ethernet Switch

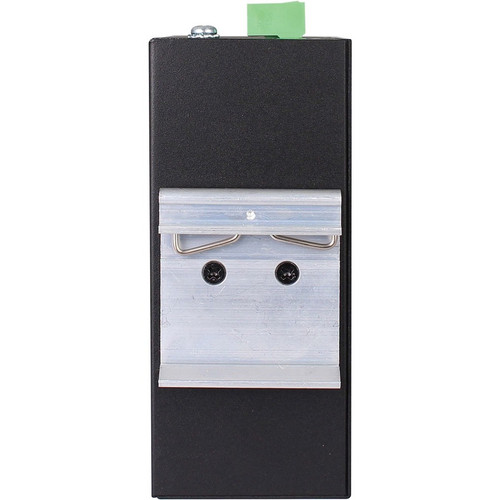

- DIN Rail-mounting Clip (Pre-installed)
- Owner's Manual
Total Number of Network Ports: 8
Network (RJ-45): Yes
Port/Expansion Slot Details: 8 x Gigabit Ethernet Network
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Layer Supported: 2
Networking Standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x
Manageable: No
Power Consumption: 5 W
Product Material: Metal
Form Factor: DIN Rail Mountable
Height: 3.92" (99.57 mm)
Width: 1.97" (50.04 mm)
Depth: 4.56" (115.82 mm)
Weight (Approximate): 1.10 lb (498.95 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
Country of Origin: Taiwan
TAA Compliant: Yes
Limited Warranty: 3 Year
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | NGI-U08 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | NGI-U08 |
| Product Name | NGI-U08 Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Consumption | 5 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | DIN Rail Mountable |
| Height | 3.92" (99.57 mm) |
| Width | 1.97" (50.04 mm) |
| Depth | 4.56" (115.82 mm) |
| Weight (Approximate) | 1.10 lb (498.95 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite Cat6 UTP Patch Cable - 1ft |
| SKU | N201-001-BK |
| Sale Price | $2.73 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
