CyberPower OL5KSTF Step-down and Isolation Transformer - Silver 3 ft, Hardwire Terminal (NEMA L6-30P power cord included), 3YR - & (OL5KSTF)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Description
- Smart App Online OL5KSTF 5000VA Isolation/Step-Down Transformer
- NEMA L6-30P Power Cord
Power Rating: 5 kVA
Input Receptacle Type: NEMA L6-30P
Output Receptacle Type: NEMA 5-20R
Input Voltage: 230 V AC
Output Voltage: 120 V AC,208 V AC
Maximum Line Current: 30 A

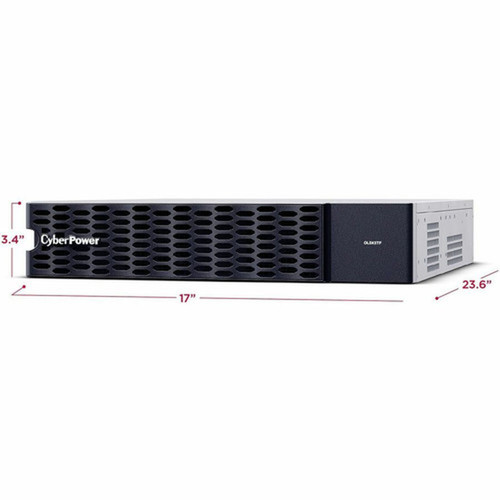

Height: 3.39" (86 mm)
Width: 17.01" (432 mm)
Depth: 23.58" (599 mm)
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 83.80 lb (38010 g)
Package Contents:
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Step-down transformer:
- 5,000 VA / 5,000 W
- Output:
- 120 V, 50/60 Hz
- Power conversion:
- 208 V from utility, UPS, or generator to 120 V output
- Plug type & cord:
- 3 ft NEMA L6-30P power cord

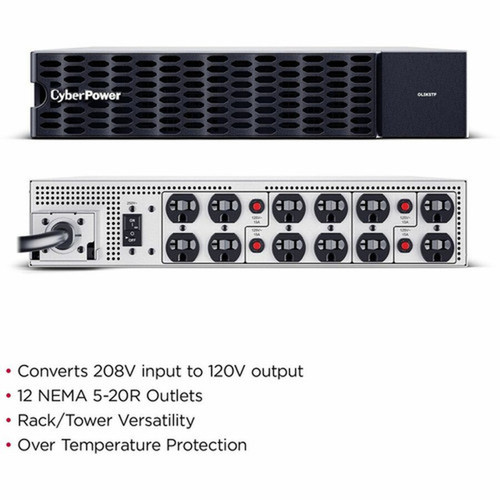

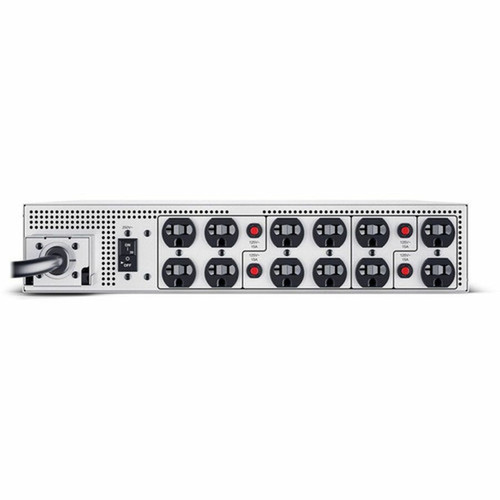

- Outlets:
- (12) NEMA 5-20R
- Form factor:
- 2U Rackmount
- Overload protection:
- Output circuit breakers
- Over temperature protection:
- Yes
- Warranty:
- Three year
[custom-specifications]
| Specifications | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL5KSTF |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Line | Smart App Online |
| Product Model | OL5KSTF |
| Product Name | OL5KSTF Step-down and Isolation Transformer |
| Product Type | Isolation/Step-Down Transformer |
| Technical Information | |
| Power Rating | 5 kVA |
| Input Receptacle Type | NEMA L6-30P |
| Output Receptacle Type | NEMA 5-20R |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 120 V AC,208 V AC |
| Maximum Line Current | 30 A |
| Physical Characteristics | |
| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 23.58" (599 mm) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Weight (Approximate) | 83.80 lb (38010 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
