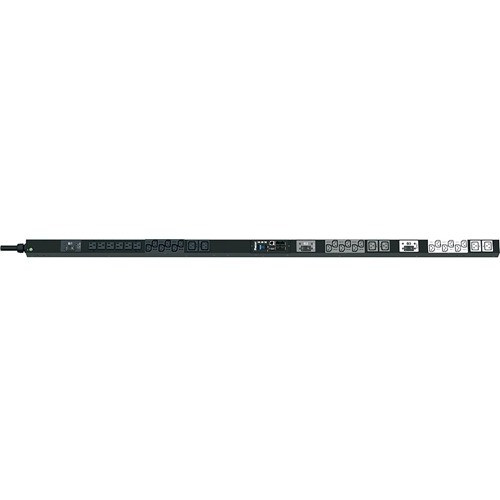

Panduit P30D02M-RD2A SmartZone G5 Intelligent Monitored PDU - 30 Outlets - 8. 60 kW - 208V AC Input - Rack-Mountable Vertical
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The PDU operates with a 208 V AC three-phase input and steps down to 120 V AC output, delivering 8.60 kW (8.60 VA) of power with a 30 A input current. Its outlet configuration includes 18 IEC 60320 C13, 6 IEC 60320 C19, and 6 NEMA 5-20R receptacles, offering flexibility for diverse power cords and devices.
Network connectivity is provided through an RJ-45 port, enabling IP-based monitoring for voltage, current, and power data. The unit is built with RoHS-compliant materials and is backed by a 3-year limited warranty, ensuring durability and compliance with environmental standards.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This SmartZone G5 PDU combines high-density power distribution with intelligent monitoring capabilities, allowing IT administrators to optimize power usage and prevent overloads proactively. Its vertical design saves valuable rack space while providing easy access to all outlets.
Remote Power Monitoring
Monitor voltage and power metrics remotely via the network interface, enabling proactive management and reducing downtime risks.
- Real-time data access
- Supports single or three-phase monitoring
- Integrates with existing network management tools
High Outlet Density
With 30 outlets in a compact form factor, this PDU maximizes power distribution in space-constrained rack environments.
- Mixed outlet types for versatility
- Supports high-power devices via C19 outlets
- Reduces need for multiple PDUs
Deployment / Use Cases
Deploy this monitored PDU in data centers, server rooms, or network closets where reliable, scalable power distribution is critical. Its three-phase input and high power capacity make it suitable for supporting racks with multiple servers, storage arrays, and networking equipment.
Use cases include enterprise IT infrastructure, colocation facilities, and edge computing deployments where remote power monitoring enhances operational efficiency. The vertical mounting orientation is particularly useful in full-height racks, allowing clean cable management and easy outlet access.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Power Distribution
Ideal for distributing power to server racks in data centers, providing monitored outlets for critical infrastructure.
Network Closet Optimization
Maximizes power availability in network closets with limited space, supporting switches, routers, and other gear.
Physical Profile
The PDU features a vertical rack-mountable design with dimensions of 2.05 inches wide, 2.10 inches deep, and 68.90 inches long, fitting standard 19-inch racks. Its slim profile minimizes space usage while providing full-length outlet access. The construction is environmentally friendly and RoHS compliant, ensuring safe operation in various IT environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.05" (51.99 mm), 2.10" (53.34 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Length
- 68.90" (1750.01 mm)
Highlights
- 30 total outlets: 18 IEC C13, 6 IEC C19, 6 NEMA 5-20R
- 8.60 kW / 8.60 VA power rating with 208V AC three-phase input
- Remote monitoring via RJ-45 network interface for voltage and power data
- Vertical rack-mountable design with 2U footprint for space efficiency
- NEMA L21-30P plug type for high-power connectivity
- 120V AC output suitable for standard IT equipment
- RoHS compliant and environmentally friendly construction
- 3-year limited warranty for reliable long-term use
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P30D02M-RD2A |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MI |
| Product Name | SmartZone G5 Intelligent 30-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L21-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19,NEMA 5-20R |
| Receptacle Detail | 18 x IEC 60320 C13,6 x IEC 60320 C19,6 x NEMA 5-20R |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 8.60 VA |
| Power Rating (Watt) | 8.60 kW |
| Input Current | 30 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this PDU?
This Panduit SmartZone G5 PDU has a power rating of 8.60 kW (8.60 VA), delivered through a 208 V AC three-phase input with a 30 A current. It provides sufficient capacity to support multiple servers, networking devices, and other rack-mounted equipment in data center or server room environments.
How many outlets does this PDU have and what types?
The PDU features 30 outlets total: 18 IEC 60320 C13 outlets, 6 IEC 60320 C19 outlets, and 6 NEMA 5-20R outlets. This mix accommodates standard power cords for IT equipment as well as higher-power devices requiring C19 connections, offering flexibility for diverse deployment needs.
Can this PDU be monitored remotely?
Yes, this is a monitored PDU with an RJ-45 network port that enables remote monitoring of single or three-phase voltage, current, and power metrics. This allows IT administrators to track power usage, identify potential issues, and manage power distribution proactively from a central location.
What are the mounting options for this PDU?
This PDU is designed for vertical rack mounting in standard 19-inch racks, with a mounting orientation specified as vertical. Its dimensions are 2.05 inches wide, 2.10 inches deep, and 68.90 inches long, providing a compact footprint that maximizes space efficiency in rack environments.
What input and output voltages does this PDU support?
The PDU accepts a 208 V AC three-phase input and delivers 120 V AC output. This configuration is common in commercial and data center power systems, stepping down the higher input voltage to standard 120V for typical IT equipment while maintaining efficient power distribution.
What warranty is included with this PDU?
Panduit provides a 3-year limited warranty for this SmartZone G5 PDU, covering defects in materials and workmanship. The unit is also RoHS compliant and environmentally friendly, ensuring it meets regulatory standards for hazardous substance restrictions.
What power capacity is listed for this UPS?
The listed power specification is 8.60 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
