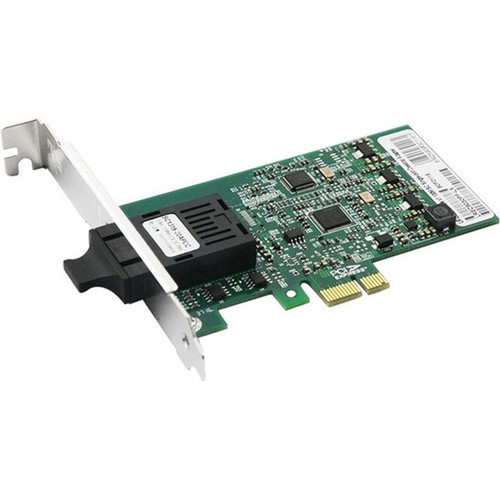

Axiom PCIE1SCFX12KM-AX Fast Ethernet Card - 100Mbps Single Port SC 2km MMF PCIe x1 NIC with Intel 82574 Chipset
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Fast Ethernet card operates on the 100Base-X network standard, providing a maximum data transfer rate of 100 Mbit/s. The Intel 82574 controller manages network traffic efficiently, ensuring consistent performance for server-to-network communication over optical fiber media.
The card's single SC port supports multimode fiber cables, which are ideal for longer-distance deployments within data centers or enterprise networks. This design minimizes signal degradation and electromagnetic interference compared to copper-based solutions.
Relevant factors for this section include Chipset Manufacturer, Chipset Model, Host Interface, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This Axiom NIC combines robust hardware with practical design features to meet the demands of server networking. Its use of optical fiber enables reliable data transmission over extended distances without the limitations of traditional copper cabling.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Intel Reliability, Flexible Installation.
Intel Reliability
The Intel 82574 chipset provides proven stability and compatibility, reducing driver issues and ensuring consistent network performance in server environments.
- Industry-standard controller
- Widely supported drivers
- Low-latency data handling
Flexible Installation
Included half-height and full-height brackets allow installation in various server form factors, from rack-mounted systems to compact tower servers.
- Dual bracket options
- Tool-free mounting
- Standard PCIe slot compatibility
Deployment / Use Cases
This Fast Ethernet card is specifically designed for server deployments requiring reliable fiber optic connectivity. Its 2-kilometer range makes it suitable for connecting servers across different rooms or buildings within a campus environment.
Common applications include data center server racks, enterprise server rooms, and industrial computing systems where electrical noise immunity and longer cable runs are necessary. The card's server-focused design ensures compatibility with mainstream server operating systems and management tools.
Data Center Connectivity
Extend network reach between server racks or across data center floors using multimode fiber infrastructure, maintaining signal integrity over distances where copper Ethernet would be impractical.
Server Room Upgrades
Replace aging copper NICs with fiber optic connectivity to reduce electromagnetic interference and prepare infrastructure for future network speed increases while maintaining current 100Mbps throughput.
Physical Profile
The card measures 4.33 inches (110 mm) in height, 0.47 inches (12 mm) in width, and 2.68 inches (68 mm) in depth, with an approximate weight of 1.60 ounces (45.36 grams). This compact plug-in card design fits standard PCIe slots while the included brackets ensure secure mounting in both half-height and full-height server configurations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.33" (110 mm), 0.47" (12 mm), 2.68" (68 mm), 1.60 oz (45.36 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 0.47" (12 mm)
- Depth
- 2.68" (68 mm)
- Height
- 4.33" (110 mm)
- Weight
- 1.60 oz (45.36 g)
What's in the Box
The package includes everything needed for immediate installation and operation.
Highlights
- 100Mbps Fast Ethernet performance over optical fiber
- Single SC port with multimode fiber support for distances up to 2 km
- PCI Express 2.0 x1 host interface for broad server compatibility
- Intel 82574 chipset ensures reliable network controller operation
- Includes both half-height and full-height mounting brackets
- Designed specifically for server deployment and support
- 3-year limited warranty for long-term reliability assurance
- 100Base-X network technology standard compliance
- Compact plug-in card form factor for easy installation
- Optical fiber media eliminates electromagnetic interference concerns
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | PCIE1SCFX12KM-AX |
| Brand Name | Axiom |
| Product Name | 100Mbs Single Port SC 2km MMF PCIe x1 NIC |
| Product Type | Fast Ethernet Card |
| Technical Information | |
| Chipset Manufacturer | Intel |
| Chipset Model | 82574 |
| Interfaces/Ports | |
| Host Interface | PCI Express 2.0 x1 |
| Total Number of Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Network & Communication | |
| Network Technology | 100Base-X |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 4.33" (110 mm) |
| Width | 0.47" (12 mm) |
| Depth | 2.68" (68 mm) |
| Weight (Approximate) | 1.60 oz (45.36 g) |
| Miscellaneous | |
| Package Contents | 100Mbs Single Port SC 2km MMF PCIe x1 NIC Half-height and Full-height Mounting Brackets |
| Device Supported | Server |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What type of fiber cable does this NIC support?
This Axiom Fast Ethernet card supports multimode fiber cables with SC connectors. Multimode fiber is commonly used for shorter to medium-distance connections within buildings or campuses, and this particular card is rated for distances up to 2 kilometers when used with appropriate multimode fiber infrastructure.
What servers is this network card compatible with?
The card is designed for server deployment and is compatible with systems that have an available PCI Express 2.0 x1 slot. It includes both half-height and full-height mounting brackets to accommodate various server chassis designs, from rack-mounted units to tower servers. The Intel 82574 chipset ensures broad operating system support for server environments.
What is the maximum data transfer rate of this Ethernet card?
This is a Fast Ethernet card with a maximum data transfer rate of 100 Mbit/s (100 Mbps). It operates on the 100Base-X network standard, which provides reliable 100Mbps connectivity over fiber optic media. This makes it suitable for applications where consistent 100Mbps throughput is required over longer distances than copper Ethernet can support.
Does this card require special drivers?
The card uses the Intel 82574 chipset, which is widely supported by most server operating systems. While drivers may be included with your operating system, it's recommended to check Axiom's support resources for the latest driver versions to ensure optimal performance and compatibility with your specific server configuration and operating system.
What is the warranty period for this product?
This Axiom Fast Ethernet card comes with a 3-year limited warranty. This warranty covers defects in materials and workmanship under normal use conditions, providing assurance of product reliability for server networking applications. Always retain your purchase documentation for warranty service claims.
Can this card be used in desktop computers?
While the card is physically compatible with any system having a PCI Express 2.0 x1 slot, it is specifically designed and tested for server environments. The product documentation indicates 'Device Supported: Server,' suggesting it's optimized for server use cases. For desktop applications, verify compatibility with your specific system requirements and consider whether server-grade components are necessary for your use case.
