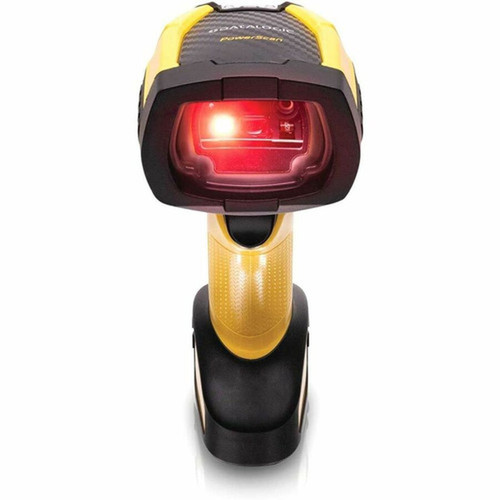

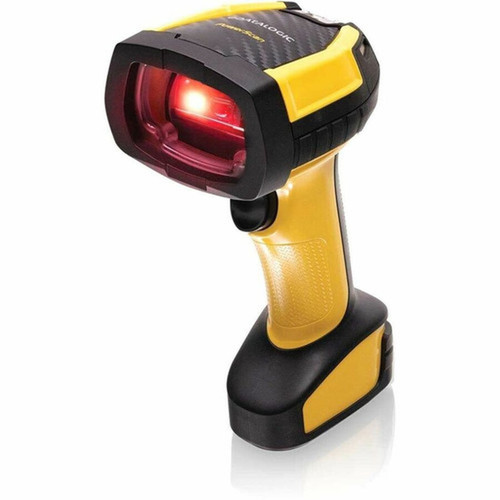

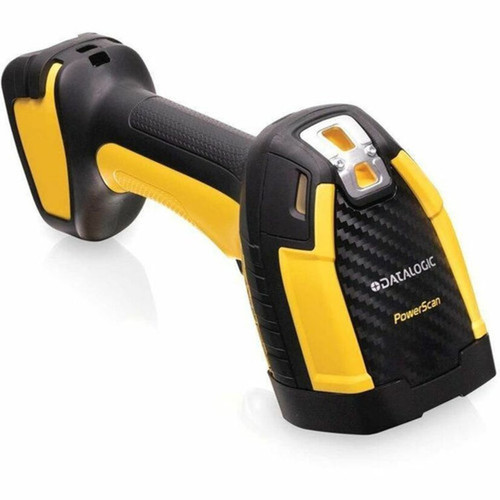

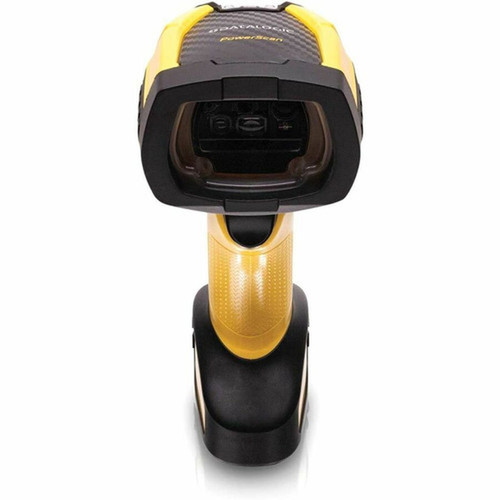

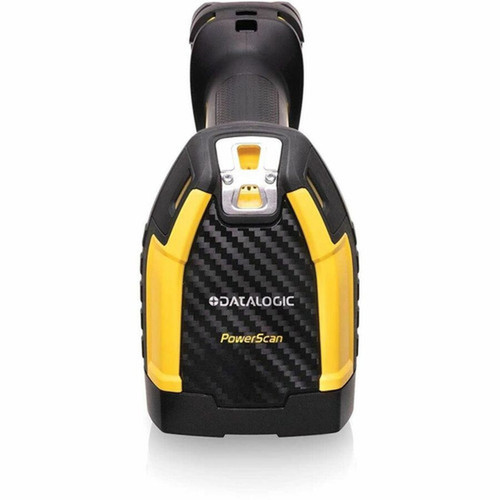

Datalogic PowerScan PD9630 Barcode Scanner - Cable Connectivity - 1D, 2D - LED - Imager - Omni-directional - Serial, USB - Yellow, - - (PD9630-AR)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Omni-directional
Scanner Range: Auto Range
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 3 mil (0.08 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Maximum Element Resolution (DataMatrix): 100 mil (2.54 mm)
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Features: Vibration
Host Interface: Serial,USB
Input Current: 770 mA
Standby Current: 140 mA
Operating Temperature: -22°F (-30°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 95%
Form Factor: Handheld
Rugged: Yes
Product Color: Yellow,Black
Height: 7.80" (198 mm)
Width: 3.11" (79 mm)
Length: 5.51" (140 mm)
Weight (Approximate): 11.29 oz (320 g)
Ingress Protection (IP) Rating: IP65,IP67
Application/Usage: Manufacturing,Warehouse,Logistics,Picking,Inventory,Asset Tracking
- LED aimer is a perfect choice for patient-facing applications
- Perfect for applications that require direct association with a workstation or a notebook
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PD9630-AR |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Model | PD9630 |
| Product Name | PowerScan PD9630 Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Omni-directional |
| Scanner Range | Auto Range |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 20% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 100 mil (2.54 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Features | Vibration |
| Interfaces/Ports | |
| Host Interface | Serial,USB |
| Power Description | |
| Input Current | 770 mA |
| Standby Current | 140 mA |
| Environmental Conditions | |
| Operating Temperature | -22°F (-30°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Product Color | Yellow,Black |
| Height | 7.80" (198 mm) |
| Width | 3.11" (79 mm) |
| Length | 5.51" (140 mm) |
| Weight (Approximate) | 11.29 oz (320 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65,IP67 |
| Application/Usage | Manufacturing,Warehouse,Logistics,Picking,Inventory,Asset Tracking |
[/custom-specifications]
