APC by Schneider Electric PDUV15 Tripp Lite Basic PDU - 120V 15A 14 Outlet NEMA 5-15R - 1. 80 kVA - Zero U Vertical Rackmount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Basic PDU operates at 120V AC input and output, matching standard North American power requirements. The 1.80 kVA power rating supports substantial equipment loads while the 15A circuit capacity ensures compatibility with common data center power infrastructure.
The NEMA 5-15P input plug connects directly to standard wall outlets or upstream power sources, while the 14 NEMA 5-15R outlets accommodate equipment with standard North American plugs. Overload protection monitors current draw to prevent circuit overloads and potential damage to connected devices.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PDUV15 combines essential power distribution features with space-efficient rack mounting to deliver practical value for IT infrastructure deployments.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Space-Optimized Design, Reliable Power Distribution.
Space-Optimized Design
The Zero U vertical mounting requires no rack unit space, preserving valuable equipment mounting positions while keeping power distribution accessible along the rack side.
- 1.75" slim profile
- 36" height fits standard racks
- Vertical orientation saves horizontal space
Reliable Power Distribution
With 14 outlets and 1.80 kVA capacity, this PDU supports multiple devices while maintaining stable power delivery through overload-protected circuits.
- Overload protection circuitry
- 14 NEMA 5-15R outlets
- 120V AC input/output consistency
Deployment / Use Cases
The Tripp Lite PDUV15 serves as a fundamental power distribution solution for various rack-mounted environments where basic, reliable power access is required without advanced monitoring or control features.
In data center racks, this PDU efficiently distributes power to servers, switches, and storage arrays. For network closets and telecommunications rooms, it provides organized power access for networking equipment. The vertical mounting makes it ideal for full-height racks where side-mounted power distribution maximizes usable front and rear space.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Data Center Racks
Distribute power to multiple servers and networking devices while maintaining clean cable management and accessible outlet placement.
Network Equipment Cabinets
Provide reliable power to switches, routers, and other networking hardware with standard NEMA 5-15R connections.

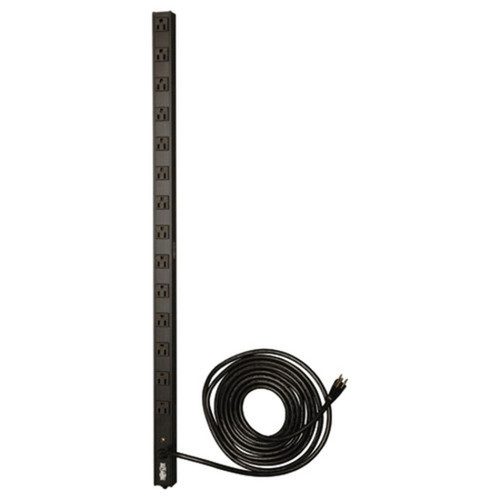

Physical Profile
The PDUV15 features a slim 1.75" depth profile that mounts vertically along rack sides without consuming valuable equipment mounting space. With dimensions of 36" width, 1.75" height, and 1.25" depth, the unit fits standard 19" rack widths while providing full-length outlet access. The 3.30 lb weight ensures easy installation and minimal rack load impact.
- Width
- 36" (914.40 mm)
- Depth
- 1.25" (31.75 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 3.30 lb (1496.85 g)

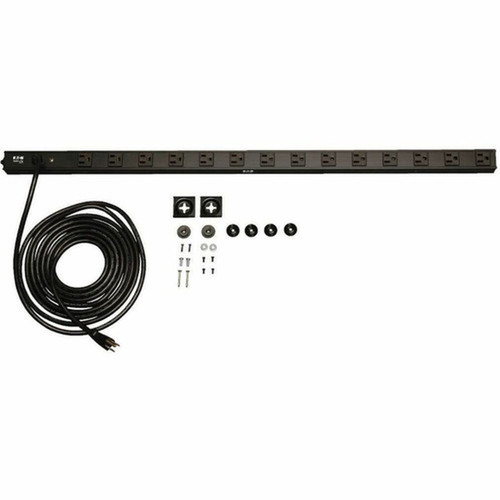

What's in the Box
The package includes all necessary components for immediate installation and operation.
Highlights
- 1.80 kVA power capacity for substantial equipment loads
- 14 NEMA 5-15R outlets support multiple devices
- Zero U vertical rackmount design saves valuable rack space
- 120V 15A input matches standard North American power
- Overload protection safeguards connected equipment
- 36" height fits standard rack dimensions
- Slim 1.75" profile minimizes space consumption
- 5-year limited warranty for long-term reliability
- RoHS compliant for environmental responsibility
- Includes complete mounting hardware for easy installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUV15 |
| Brand Name | Tripp Lite series |
| Product Model | PDUV15 |
| Product Name | PDUV15 PDU Basic 120V 15A 14 Outlet |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 14 x NEMA 5-15R |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 1.80 kVA |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 36" (914.40 mm) |
| Depth | 1.25" (31.75 mm) |
| Weight (Approximate) | 3.30 lb (1496.85 g) |
| Miscellaneous | |
| Package Contents | PDUV15 PDU Basic 120V 15A 14 Outlet PDUV15 Basic Vertical PDU Mounting hardware Owner's manual with warranty information |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of the Tripp Lite PDUV15?
The PDUV15 delivers 1.80 kVA of power capacity, supporting substantial equipment loads in rack-mounted environments. This capacity is suitable for distributing power to multiple servers, networking devices, or storage arrays while maintaining stable voltage output at 120V AC.
How many outlets does this PDU provide and what type are they?
This Power Distribution Unit features 14 NEMA 5-15R outlets, which accommodate standard North American plugs. The outlet configuration supports multiple devices simultaneously, making it ideal for densely populated racks where numerous equipment pieces require power connections.
What does 'Zero U vertical rackmount' mean for installation?
Zero U vertical rackmount means the PDU mounts vertically along the side of a standard 19" rack without consuming any rack unit (U) space. This design preserves all front and rear mounting positions for equipment while keeping power distribution accessible. The unit's 36" height fits full-height racks, and its slim 1.75" profile minimizes space usage.
What input power requirements does this PDU have?
The PDUV15 requires a 120V AC 15A input connection, matching standard North American power infrastructure. It uses a NEMA 5-15P plug for connection to wall outlets, UPS systems, or other power sources. The output maintains the same 120V AC voltage for consistent power delivery to connected equipment.
Does this PDU include any protection features?
Yes, the PDUV15 includes overload protection that monitors current draw to prevent circuit overloads. This protection helps safeguard connected equipment from potential damage due to excessive power demand, making it a reliable choice for critical IT infrastructure where power stability is essential.
What is included in the warranty coverage?
Tripp Lite provides a 5-year limited warranty for the PDUV15, covering defects in materials and workmanship. This substantial warranty period reflects the product's reliability and durability for continuous operation in data center and network environments. The owner's manual included in the package contains complete warranty terms and conditions.
