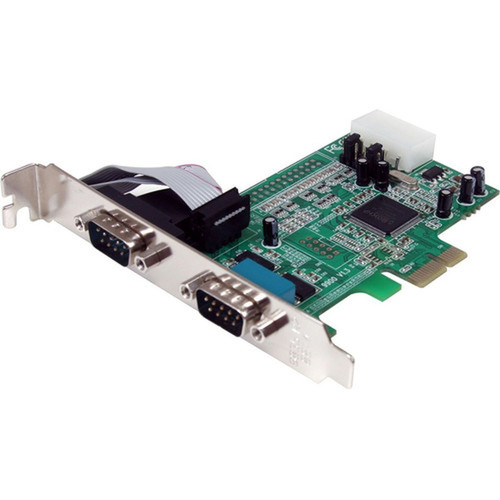

StarTech. com PEX2S553 2 Port PCIe Serial Adapter Card with 16550 UART - Add 2 RS-232 Ports
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 2 Port PCIe Serial Adapter Card with 16550
- Low Profile Brackets
- Driver CD
- Instruction Manual
Host Interface: PCI Express x1
Platform Supported: PC,Mac,Linux
UART Type: 16550
Number of Serial Ports (External): 2
Form Factor: Plug-in Card
Card Height: Half-height/Low-profile
Height: 0.80" (20.32 mm)
Width: 4.70" (119.38 mm)
Weight (Approximate): 2.20 oz (62.37 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Limited Warranty: 2 Year
- Two high speed RS232 serial ports with support for data transfer rates up to 460.8 Kbps
- Compliant with PCI Express base specifications revision 1.0a
- Includes half-height/low profile mounting bracket
- Selectable power output on pin 9 for the serial port
- 128-byte deep FIFO per transmitter and receiver
- Native single-Chip, single lane PCI Express
- Automated out-of-band flow control using CTS/RTS and DSR/DTR
- Automated in-band software flow control using programmable Xon/Xoff in both directions
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX2S553 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Model | PEX2S553 |
| Product Name | 2 Port PCIe Serial Adapter Card with 16550 |
| Packaged Quantity | 1 |
| Product Type | Serial Adapter |
| Technical Information | |
| Host Interface | PCI Express x1 |
| Platform Supported | PC,Mac,Linux |
| UART Type | 16550 |
| Interfaces/Ports | |
| Number of Serial Ports (External) | 2 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Card Height | Half-height/Low-profile |
| Height | 0.80" (20.32 mm) |
| Width | 4.70" (119.38 mm) |
| Weight (Approximate) | 2.20 oz (62.37 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
