StarTech 2 Port USB 3.1 Plus eSATA PCI Express Card With One A And Expansion StarTech.com USB-A PCIe PEXUSB311A1E
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Description

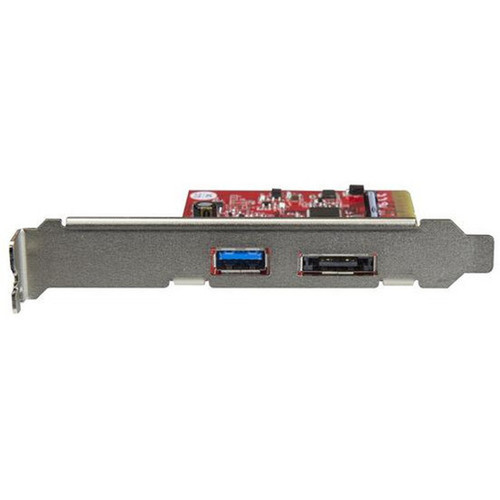

- 2-Port USB 3.1 (10Gbps) and eSATA PCIe Card - 1x USB-A and 1x eSATA
- 1 x Low-profile Bracket
- 1 x Quick-start Guide
Host Interface: PCI Express x4
UASP Support: Yes
Total Number of USB Ports: 1
Number of USB 3.2 Ports: 1
Number of eSATA/USB Combo Ports: 1
Operating System Supported: Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2012,Windows Server 2016,Windows Server 2008 R2,Windows Server 2019,Linux
Color Family: Red
Product Color: Red
Form Factor: Plug-in Card
Height: 3.90" (99.06 mm)
Width: 3.10" (78.74 mm)
Length: 3.70" (93.98 mm)
Weight (Approximate): 1.60 oz (45.36 g)
Package Contents:
Platform Supported: Linux,PC
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 2 Year
- Enhance your connectivity by adding one USB 3.1 Gen 2 and one eSATA port to your computer, through a single PCIe slot
- Supports USB 3.1 data rates up to 10Gbps
- Supports SATA I, II, and III up to 6Gbps
- PCIe x4 interface compliant with PCI Express Base Specification Revision 3.0
- Backward compatible with USB 3.0, USB 2.0 and USB 1.0/1.1 devices
- Includes a low-profile/half-height installation bracket
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEXUSB311A1E |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 2-Port USB 3.1 (10Gbps) and eSATA PCIe Card - 1x USB-A and 1x eSATA |
| Packaged Quantity | 1 Each |
| Product Type | USB/eSATA Combo Adapter |
| Technical Information | |
| Host Interface | PCI Express x4 |
| Media & Performance | |
| UASP Support | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 1 |
| Number of USB 3.2 Ports | 1 |
| Number of eSATA/USB Combo Ports | 1 |
| Software | |
| Operating System Supported | Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2012,Windows Server 2016,Windows Server 2008 R2,Windows Server 2019,Linux |
| Physical Characteristics | |
| Color Family | Red |
| Product Color | Red |
| Form Factor | Plug-in Card |
| Height | 3.90" (99.06 mm) |
| Width | 3.10" (78.74 mm) |
| Length | 3.70" (93.98 mm) |
| Weight (Approximate) | 1.60 oz (45.36 g) |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | Linux,PC |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
