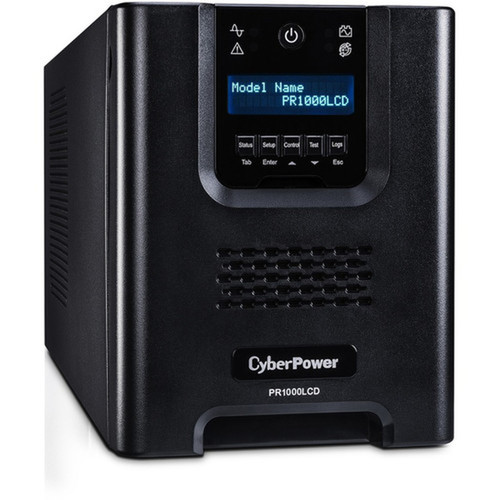

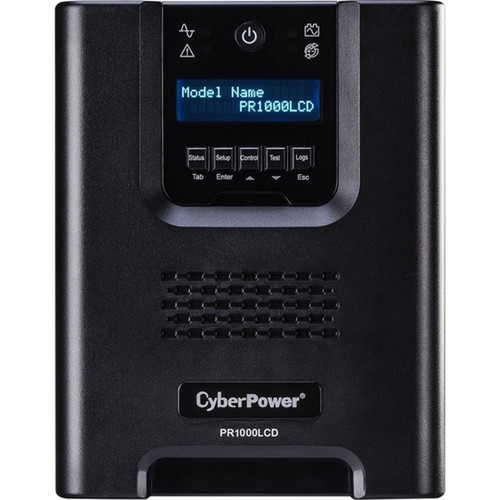

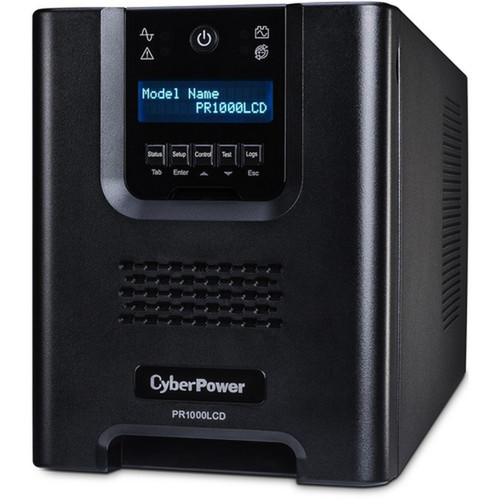

CyberPower PR1000LCD Smart App Sinewave UPS - 1000VA/1000W - 120V - Mini-Tower - 8 Outlets - LCD - 3-Year Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS operates on a 120V AC input with a wide input voltage range of 78V to 149V, automatically adjusting to maintain stable 120V AC output. The sine wave output ensures clean power delivery for active PFC power supplies commonly found in modern servers and networking gear. The unit features a fast 4ms transfer time to battery backup during outages, minimizing disruption to connected loads.
Power management is facilitated through multiple interfaces: USB and serial ports for local monitoring with included PowerPanel Business Edition software, and support for SNMP/HTTP remote monitoring via an optional network management card. An Emergency Power Off (EPO) port allows for safe system shutdown in critical situations.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The PR1000LCD combines robust power protection with user-friendly management tools, making it an ideal choice for IT environments requiring dependable uptime. Its pure sine wave output guarantees safe operation for equipment with active power factor correction, while the eight NEMA 5-15R outlets provide ample connectivity for multiple devices.
Comprehensive Outlet Protection

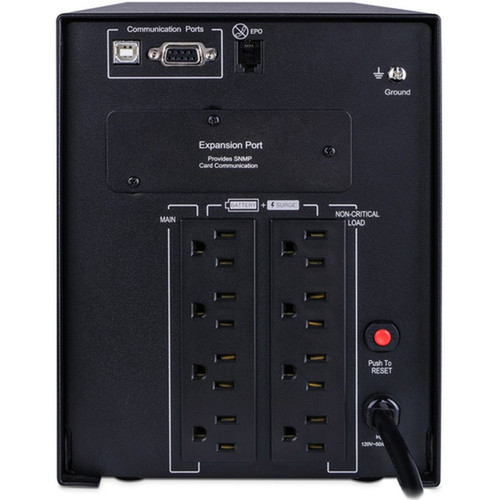

Eight NEMA 5-15R outlets include four battery-backed outlets for critical loads and four surge-only outlets for peripheral devices, all protected by 1030 joules of surge energy rating.
- 4 Critical Load Outlets
- 4 Surge-Only Outlets
- NEMA 5-15P Plug with 6 ft. Cord
Advanced Monitoring & Alerts

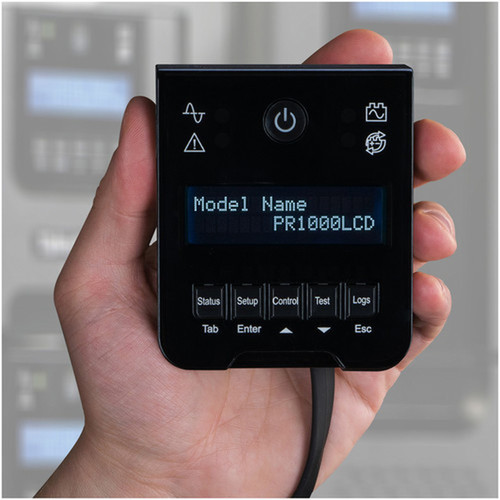

The LCD display and audible alarms provide immediate status on power conditions, battery state, and faults, while software and remote options enable proactive management.
- LCD with Runtime Display
- Multi-Condition Alarms
- SNMP/HTTP Remote Capable
Deployment / Use Cases
Designed for small to medium business environments, the PR1000LCD is well-suited for protecting servers, network switches, storage arrays, and telecommunications equipment. Its mini-tower form factor allows flexible placement in server rooms, network closets, or office settings where rack mounting isn't required.
Typical deployments include supporting a single server with associated networking gear, providing runtime for orderly shutdown during power outages. The unit's communication capabilities integrate with existing network management systems, enabling centralized monitoring of power infrastructure across multiple locations.
Server & Network Protection
Provides backup power for critical infrastructure, ensuring continuous operation during brief outages and allowing time for graceful shutdown during extended power failures.
Telecommunications Equipment
Maintains uptime for VoIP systems, routers, and switches, with pure sine wave output compatible with sensitive networking hardware.
Physical Profile
The black mini-tower enclosure measures 8.70" H × 6.70" W × 17" D (220.98 × 170.18 × 431.80 mm) with a weight of approximately 44 lb (19.96 kg). Its compact footprint fits comfortably under desks or on shelves, while the design allows for adequate ventilation during operation. The unit operates reliably in environments with temperatures up to 104°F (40°C) and humidity from 0% to 95%.
- Width
- 6.70" (170.18 mm)
- Depth
- 17" (431.80 mm)
- Height
- 8.70" (220.98 mm)
- Weight
- 44 lb (19958.06 g)
What's in the Box
The package includes all necessary components for immediate deployment and management of the UPS system.
Highlights
- 1000VA/1000W pure sine wave output for sensitive equipment
- Line interactive topology with AVR for voltage correction
- 8 total outlets (4 battery backup + 4 surge protection)
- LCD display shows runtime, load, and status information
- USB, serial, and EPO ports for management integration
- Includes PowerPanel Business Edition management software
- SNMP/HTTP remote monitoring capable with optional card
- Maintenance-free sealed lead-acid batteries
- 3-year limited warranty for long-term protection
- RoHS compliant and environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR1000LCD |
| Brand Name | CyberPower |
| Product Series | Smart App Sinewave UPS |
| Product Model | PR1000LCD |
| Product Name | PR1000LCD Smart App Sinewave UPS Systems |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Transfer Time | 4 ms |
| Energy Saving | GreenPower UPS™ Bypass |
| Application/Usage | Server,Corporate,Storage Device,Network Device,Telecommunication |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Input Voltage | 120 V AC |
| Input Voltage Range | 78 V AC - 149 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1030 J |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Low Battery,Overload,Fault Mode,Replace Battery,Battery Power,AC Power,Wiring Fault |
| Controls/Indicators | |
| Status Indicators | Power On Wiring Fault AC Power Battery Power Replace Battery |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 2 |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 12000 mAh |
| Backup/Run Time (Full Load) | 3.10 Minute |
| Backup/Run Time (Half Load) | 10.50 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Mini-tower |
| Height | 8.70" (220.98 mm) |
| Width | 6.70" (170.18 mm) |
| Depth | 17" (431.80 mm) |
| Weight (Approximate) | 44 lb (19958.06 g) |
| Miscellaneous | |
| Package Contents | Smart App Sinewave PR1000LCD 1000VA UPS PowerPanel Business Edition Software CD User Manual Functional Setup Guide USB Cable Serial Cable Emergency Power Off (EPO) Cable Registration Card |
| Software Included | PowerPanel Business Edition Software |
| Energy Star | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of the CyberPower PR1000LCD UPS?
The PR1000LCD provides 1000VA/1000W of power capacity, suitable for protecting servers, network equipment, and telecommunications devices. This capacity supports typical loads like a single server with associated networking gear, providing sufficient runtime for orderly shutdown during power outages.
What type of power output does this UPS provide?
This UPS delivers pure sine wave output, which is essential for compatibility with modern electronic equipment featuring active power factor correction (PFC) power supplies. Sine wave output ensures clean, stable power that won't damage sensitive servers, networking hardware, or telecommunications equipment.
How many outlets does the PR1000LCD have and what types?
The unit features eight NEMA 5-15R outlets total: four provide battery backup for critical loads, while four offer surge protection only for peripheral devices. All outlets are protected by 1030 joules of surge energy rating, and the unit includes a standard NEMA 5-15P plug with a 6-foot power cord.
What is the battery runtime at full and half load?
At full 1000W load, the UPS provides approximately 3.10 minutes of runtime. At half load (500W), runtime extends to approximately 10.50 minutes. These times allow for orderly shutdown of connected equipment during power outages or provide brief ride-through during momentary interruptions.
What management and monitoring options are available?
Local management is available through the front-panel LCD display, USB and serial ports with included PowerPanel Business Edition software. For remote monitoring, the unit supports SNMP/HTTP protocols via an optional network management card (RMCARD205). An Emergency Power Off (EPO) port enables safe system shutdown when needed.
What is the warranty coverage for this UPS?
CyberPower provides a 3-year limited warranty on the PR1000LCD, covering defects in materials and workmanship. The warranty includes coverage for the connected equipment up to specific limits, providing additional protection for your valuable business infrastructure.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 8, which helps buyers understand how many connected devices it can support in its intended deployment.
