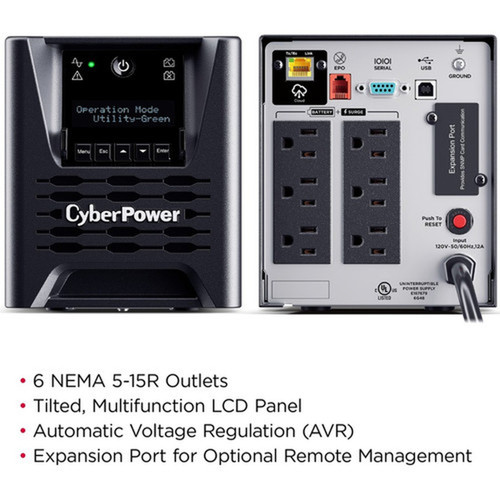

CyberPower PR750LCD3C Smart App Sinewave UPS - 750VA/750W - 6 Outlets - LCD - Sine Wave - Mini-Tower - 120V
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The CyberPower PR750LCD3C Smart App Sinewave UPS delivers reliable power protection for critical IT infrastructure with its 750VA/750W capacity and pure sine wave output. This line-interactive UPS system combines automatic voltage regulation (AVR) with advanced battery management to maintain stable power during brownouts and blackouts.

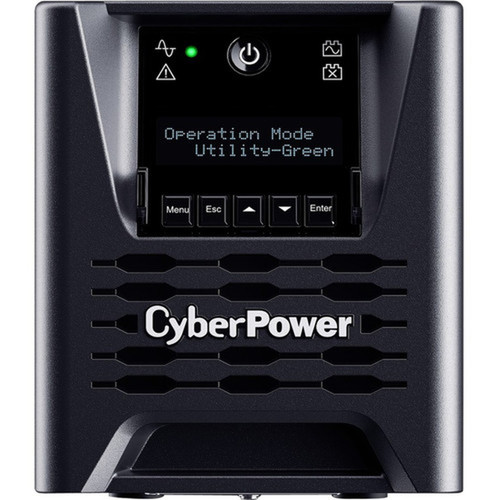

Designed for server rooms, network closets, and telecommunications environments, this unit features six NEMA 5-15R outlets for comprehensive equipment protection. The integrated LCD display provides real-time monitoring of power status, load levels, and battery health, while the audible alarm alerts users to power events and system conditions.
The unit employs GreenPower UPS Bypass Technology to reduce energy consumption during normal operation, making it Energy Star certified for efficiency. With a 1350 J surge energy rating and EMI/RFI noise filtering, it protects connected equipment from electrical disturbances that can cause data corruption or hardware damage.
This UPS supports hot-swappable battery replacement with two sealed lead-acid batteries, minimizing downtime during maintenance. The three-year warranty includes comprehensive coverage for both the UPS unit and its batteries, providing long-term reliability for business-critical applications.
Technical Overview
This UPS employs line-interactive topology with automatic voltage regulation that corrects under-voltage and over-voltage conditions without switching to battery power. The pure sine wave output ensures compatibility with sensitive electronics, including servers, storage devices, and networking equipment with active PFC power supplies.
Power management capabilities include SNMP/HTTP remote monitoring through the included Relay-MS card, enabling centralized administration of multiple units. The system supports hot-swappable battery replacement with two sealed lead-acid batteries (12V, 7000 mAh each), minimizing downtime during maintenance.
Electrical specifications include input voltage ranging from 74-154 V AC with a nominal 120 V AC output, maintaining stable power within ±5% tolerance. The unit features a 4 ms transfer time, circuit breaker protection, and output power factor of 1 for efficient power delivery to connected loads.

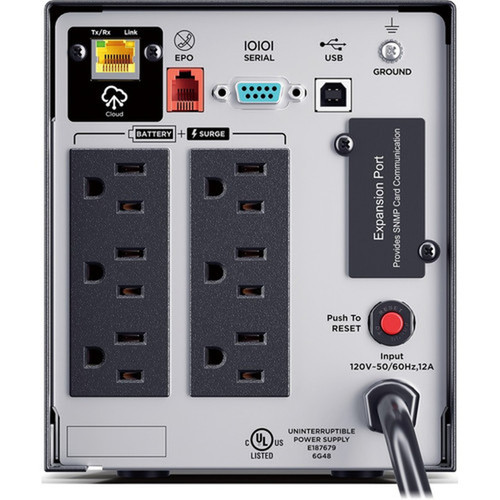

Network connectivity options include serial, USB, EPO, and USB HID compliant ports for integration with management software and emergency shutdown systems. The LCD display and LED indicators provide clear status information for power on, online operation, battery mode, and fault conditions.
Battery System
Features two hot-swappable 12V sealed lead-acid batteries with 7000 mAh capacity each, supporting quick replacement without system shutdown.
- Replaceable battery design
- Typical recharge time: 8 hours
- Battery status monitoring via LCD
- Maximum operating elevation: 10,000 ft
Key Product Advantages
The PR750LCD3C combines enterprise-grade power protection with user-friendly management features. The pure sine wave output ensures compatibility with active PFC power supplies found in modern servers and networking gear, while the AVR technology extends battery life by correcting minor voltage fluctuations.
Monitoring & Alerts
Comprehensive status indicators include LCD display, LED indicators, and audible alarms for battery mode, low battery, overload, fault, and replace battery conditions.
- LCD with real-time metrics
- Multiple alarm conditions
- Remote management capable
Protection Features
Built-in surge suppression (1350 J), EMI/RFI noise filtering, and overload protection safeguard connected equipment from power anomalies and electrical noise.
- Surge energy rating: 1350 J
- EMI/RFI noise filter
- Overload protection circuit
Deployment / Use Cases
This UPS is engineered for environments where clean, stable power is essential for operational continuity. The 750VA capacity and six outlets make it suitable for protecting small server racks, network equipment stacks, and telecommunications systems.
Typical deployments include supporting VoIP systems, network switches, storage arrays, and corporate workstations where brief runtime during power transitions is sufficient for graceful shutdown or transfer to generator power.
Server Room Applications
Provides backup power for rack-mounted servers and storage devices, with network management capabilities for remote monitoring and control.
- Supports server graceful shutdown
- SNMP management integration
- EPO port for emergency shutdown
Network Infrastructure
Protects switches, routers, and telecommunications equipment from power disturbances that can cause network downtime and data corruption.
- Pure sine wave for sensitive electronics
- AVR for voltage stabilization
- Multiple outlet configuration
Physical Profile
The mini-tower form factor (6.38" H × 5.43" W × 14.17" D) offers a compact footprint suitable for placement under desks, on shelves, or in equipment racks with optional mounting hardware. The black finish blends with professional IT environments, while the 5-foot power cord provides flexible placement options.
With dimensions of 6.38 inches in height, 5.43 inches in width, and 14.17 inches in depth, this UPS occupies minimal space while delivering substantial power protection. The 26.01 lb weight ensures stability during operation while remaining manageable for installation and maintenance.
The physical design supports operation in diverse environmental conditions, with a temperature range of 32°F to 104°F and humidity tolerance from 0% to 95%. Storage temperature ranges from 5°F to 113°F, making it suitable for various deployment scenarios in commercial and industrial settings.
- Width
- 5.43" (138 mm)
- Depth
- 14.17" (360 mm)
- Height
- 6.38" (162 mm)
- Weight
- 26.01 lb (11800 g)
- Length
- 5 ft (1.52 m)
Highlights
- 750VA/750W power capacity with pure sine wave output
- Six NEMA 5-15R outlets for comprehensive equipment protection
- LCD display with real-time monitoring of power status and battery health
- Line-interactive topology with automatic voltage regulation (AVR)
- SNMP/HTTP remote management via included Relay-MS card
- Hot-swappable battery design with two 12V sealed lead-acid batteries
- 10.7 minutes runtime at half load, 3.3 minutes at full load
- Energy Star certified with GreenPower UPS bypass technology
- 1350 J surge protection with EMI/RFI noise filtering
- Three-year warranty including battery coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR750LCD3C |
| Brand Name | CyberPower |
| Product Line | Smart App Sinewave |
| Product Model | PR750LCD3C |
| Product Name | PR750LCD3C Smart App Sinewave UPS Systems |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Overload Protection | Yes |
| Cord Length | 5 ft (1.52 m) |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Application/Usage | Server,Storage Device,Network Device,Corporate,Telecommunication,VoIP |
| Surge Suppression | Yes |
| Features | Audible Alarm |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 750 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 74 V AC - 154 V AC,100 V AC - 125 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz,47 Hz |
| Output Frequency | 60 Hz,50 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1350 J |
| Circuit Breaker | Yes |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring,Relay-MS Card |
| Alarm | Battery Mode,Low Battery,Overload,Fault,Replace Battery |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On On-Line Battery Mode Fault |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 2 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 7000 mAh |
| Backup/Run Time (Full Load) | 3.30 Minute |
| Backup/Run Time (Half Load) | 10.70 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 0% - 95% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Product Color | Black |
| Height | 6.38" (162 mm) |
| Width | 5.43" (138 mm) |
| Depth | 14.17" (360 mm) |
| Form Factor | Mini-tower |
| Weight (Approximate) | 26.01 lb (11800 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year warranty (including coverage of batteries) |
User Manual
FAQ
What is the power capacity of this UPS?
This CyberPower UPS has a power capacity of 750 VA and 750 W, providing reliable backup for critical IT equipment like servers, network devices, and storage systems.
What runtime can I expect at different load levels?
At half load, the UPS offers approximately 10.7 minutes of runtime, while at full load, it provides about 3.3 minutes. This allows time for graceful shutdowns or transfer to alternative power sources.
How many outlets does this UPS have?
It includes six NEMA 5-15R outlets, enabling protection for multiple devices such as computers, switches, and telecommunications equipment in a single unit.
What are the input and output voltage specifications?
The input voltage ranges from 74 to 154 V AC, with a nominal output of 120 V AC. This ensures stable power delivery and compatibility with standard North American electrical systems.
Is this UPS designed for rack or tower deployment?
This UPS features a mini-tower form factor, making it suitable for placement on floors, shelves, or under desks. It can also be mounted in racks with optional hardware for flexible installation.
What management and connectivity options are available?
Management options include SNMP/HTTP remote monitoring via the included Relay-MS card, along with serial, USB, EPO, and USB HID ports for integration with software and emergency shutdown systems.
