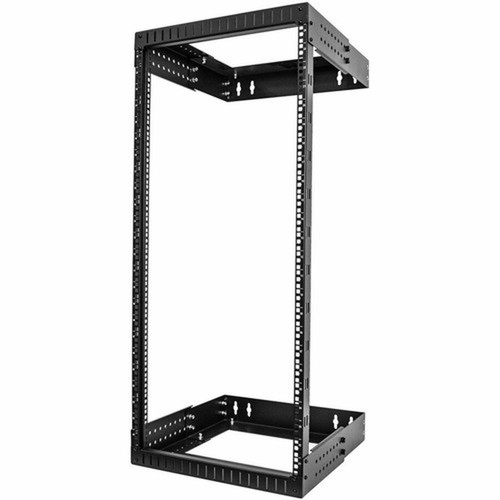

StarTech. com RACK-24U-20-WALL-OA 24U 19" Heavy-Duty Wall Mount Open Frame Network Rack - Adjustable Depth 12-20" - 200 lb Capacity - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This 2-post rack features an adjustable mounting depth from 12 to 20 inches, accommodating a wide range of server, switch, patch panel, and PDU form factors. The 19-inch rack width is industry-standard, ensuring compatibility with most rack-mountable IT equipment. Integrated cable management helps organize power and data cables, reducing clutter and improving maintenance access.
The rack's dimensions are 42 inches in height, 19.80 inches in width, and 20 inches in depth, with a net weight of approximately 33.50 lbs. Its black finish and cold-rolled steel construction provide a professional appearance and robust support for continuous operation in demanding environments.
This section brings together practical product details such as Rack Type, Application/Usage, Features, Form Factor, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The adjustable depth and heavy-duty construction make this rack versatile for evolving IT infrastructure needs, while the open frame allows full access to all sides of mounted equipment for easier installation and servicing.
Heavy-Duty Build Quality
Constructed from 2.0mm thick SPCC cold-rolled steel, the rack delivers exceptional strength and longevity, supporting high-density equipment loads without sagging or deformation.
- 200 lb weight capacity
- Durable steel rails
- Stable wall mounting
Enhanced Cooling & Access
The open frame design eliminates obstructions to airflow, promoting passive cooling for servers and switches. It also provides unobstructed access to cable ports and hardware components from all angles.
- Optimized airflow
- Full peripheral access
- Reduced heat buildup
Deployment / Use Cases
This wall-mount rack is ideal for environments where floor space is limited or where equipment needs to be securely elevated. It is commonly deployed in network closets, small server rooms, telecommunications installations, and AV equipment setups.
Typical applications include mounting network switches, servers, patch panels, PDUs, and telecommunication devices. The adjustable depth allows it to accommodate both shallow network gear and deeper server chassis, making it a flexible solution for mixed hardware deployments.
Data Center & Server Room Use
Provides organized, high-density mounting for servers and networking equipment in constrained spaces, ensuring reliable operation and easy maintenance.
Network & AV Installations
Suits wall-mounted setups for switches, patch panels, and AV gear in offices, schools, and commercial buildings, keeping cables managed and equipment secure.
Physical Profile
The rack features a black powder-coated finish on cold-rolled steel, offering corrosion resistance and a sleek professional look. Its wall-mountable form factor includes pre-drilled mounting holes and hardware for secure attachment to studs or concrete. The open frame minimizes the rack's footprint while maximizing equipment accessibility and airflow.
- Width
- 19.80" (502.92 mm)
- Depth
- 20" (508 mm)
- Height
- 42" (1066.80 mm)
- Weight
- 200 lb (90718.47 g)
- Length
- 20" (508 mm)
What's in the Box
The rack ships flat-packed with all necessary hardware for assembly and mounting, ensuring a complete out-of-the-box solution.
Highlights
- 24U open frame rack with adjustable depth from 12 to 20 inches for versatile equipment mounting
- Heavy-duty construction with 2.0mm thick SPCC cold-rolled steel rails and 200 lb weight capacity
- Wall-mountable design ideal for space-constrained server rooms and network closets
- Open frame promotes unobstructed airflow and full access to all sides of mounted equipment
- Includes comprehensive mounting hardware: M6 cage nuts, screws, brackets, and assembly fasteners
- EIA/ECA-310 compliant and ships with ISTA-6 certified flat-pack packaging
- Black finish and cold-rolled steel material for durability and professional appearance
- Backed by StarTech.com's 5-year warranty and lifetime 24/5 North American tech support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RACK-24U-20-WALL-OA |
| Brand Name | StarTech.com |
| Product Name | 24U 19" Wall Mount Network Rack |
| Packaged Quantity | 1 |
| Product Type | Rack Frame |
| Technical Information | |
| Rack Type | Open Frame |
| Application/Usage | Server,A/V Equipment,Data Center,Computer,Switch,Patch Panel,PDU,Networking,Telecommunication |
| Features | Adjustable Depth,Cable Management,Heavy Duty |
| Rack Post Quantity | 2 |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Cold Rolled Steel |
| Maximum Weight Capacity | 200 lb (90718.47 g) |
| Height | 42" (1066.80 mm) |
| Width | 19.80" (502.92 mm) |
| Length | 20" (508 mm) |
| Rack Height | 24U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 20" (508 mm) |
| Weight (Approximate) | 33.50 lb (15195.34 g) |
| Miscellaneous | |
| Package Contents | 24U 19" Wall Mount Network Rack Front Horizontal Brackets Rear Horizontal Brackets Vertical Brackets M6 Cage Nuts M6 Cage Screws Plastic Washers M5x12mm Assembly Screws M8x16mm Bolts #8 Flat Washers Quick-Start Guide |
| Assembly Required | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the adjustable depth range of this rack?
The rack offers an adjustable mounting depth ranging from 12 to 20 inches. This flexibility allows it to accommodate various equipment sizes, from shallow network switches and patch panels to deeper server chassis, making it suitable for mixed IT environments.
How much weight can this wall-mount rack support?
This heavy-duty rack supports a maximum weight capacity of 200 lbs (approximately 90 kg). Its 2.0mm thick SPCC cold-rolled steel construction ensures stable support for servers, switches, PDUs, and other rack-mountable hardware without compromising structural integrity.
Is assembly required for this rack?
Yes, assembly is required. The rack ships flat-packed with all necessary components, including brackets, hardware, and a quick-start guide. This design ensures secure delivery and allows for straightforward on-site assembly, typically requiring basic tools.
What types of equipment are compatible with this rack?
The rack is compatible with standard 19-inch rack-mountable equipment, including servers, network switches, patch panels, PDUs, AV gear, and telecommunication devices. Its open frame and adjustable depth make it versatile for data centers, server rooms, and network installations.
Does the rack include mounting hardware?
Yes, the package includes a complete set of mounting hardware: M6 square cage nuts and screws, front and rear horizontal brackets, vertical brackets, plastic washers, M5x12mm assembly screws, M8x16mm bolts, and #8 flat washers. This ensures you have everything needed for secure equipment installation.
What warranty and support does StarTech.com provide for this rack?
StarTech.com backs this rack with a 5-year limited warranty and includes free lifetime 24/5 North America-based multi-lingual technical support. This coverage reflects the product's durability and the manufacturer's commitment to long-term reliability for IT professionals.
