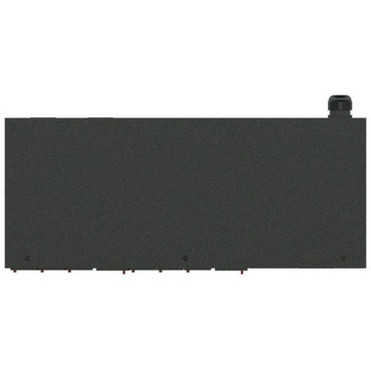

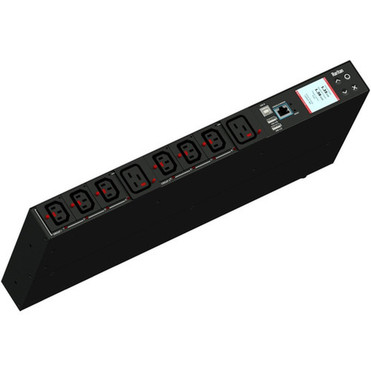

Raritan PX3-4201R-E2 Monitored PDU - 5 kVA - 8 Outlets - 1U Rack-Mount - NEMA L6-30P Input - 6x C13 & 2x C19 U-Lock
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates with a 5 kVA power rating and 30 A input current, handling input voltages from 200 V AC to 240 V AC and outputting 208 V AC within the same range. The outlet configuration includes six U-Lock IEC 60320 C13 receptacles and two U-Lock IEC 60320 C19 receptacles, catering to servers, networking gear, and storage devices with secure connections.
Network management is comprehensive, supporting HTTP(s), SSH, Telnet, RS-232 (Serial), Power IQ, SNMP version v2/v3, SMTP, JSON-RPC, and Modbus over TCP for integration into existing monitoring systems. While remote outlet switching is not available, the unit provides real-time monitoring of voltage, current, and power metrics.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The PX3-4201R-E2 combines robust power distribution with detailed monitoring tools, enabling proactive power management and capacity planning. Its U-Lock receptacle design prevents accidental disconnections, critical in high-density rack setups where cable integrity is paramount.
Secure Power Delivery
U-Lock IEC receptacles ensure cables remain firmly connected, reducing downtime risks from loose connections in vibration-prone environments.
- 6x C13 and 2x C19 outlets
- Locking mechanism for stability
- Compatible with standard power cords
Comprehensive Monitoring
Integrate with SNMP, HTTP(s), and other protocols to monitor power usage, input/output voltage, and environmental sensors remotely.
- Multi-protocol support
- Real-time data access
- Compatible with Power IQ software
Rack-Optimized Design
1U height and horizontal mounting maximize rack space utilization, fitting seamlessly into standard data center cabinets.
- Compact footprint
- Horizontal orientation
- Easy installation in 19-inch racks
Deployment / Use Cases
Ideal for data centers, server rooms, and network closets, this PDU supports critical infrastructure by distributing power to rack-mounted equipment like servers, switches, and storage arrays. The monitored functionality allows IT teams to track power draw per outlet, identify underutilized circuits, and plan for future capacity needs.
In colocation facilities or enterprise environments, the PX3-4201R-E2 helps maintain uptime by providing detailed power metrics for billing, auditing, or troubleshooting. Its RoHS compliance and environmentally friendly design align with sustainable IT initiatives, while the two-year limited warranty offers reliable support.
Data Center Power Management
Deploy in racks housing multiple servers to monitor aggregate power consumption and prevent circuit overloads.
Network Infrastructure Support
Power networking switches, routers, and firewalls with secure U-Lock connections to maintain network availability.
Physical Profile
The PDU measures 1.70 inches (43.18 mm) in height, 17.30 inches (439.42 mm) in width, and 7.20 inches (182.88 mm) in depth, with a weight of approximately 6.50 pounds (2948.35 grams). Its 1U rack-mountable design includes horizontal mounting orientation, fitting standard 19-inch rack widths without requiring additional brackets. The compact dimensions ensure efficient use of vertical rack space while providing ample clearance for cable management behind the unit.
- Width
- 17.30" (439.42 mm)
- Depth
- 7.20" (182.88 mm)
- Height
- 1U
- Weight
- 6.50 lb (2948.35 g)
Highlights
- 5 kVA power capacity for reliable distribution to IT equipment
- 8 total outlets: 6 U-Lock IEC C13 and 2 U-Lock IEC C19 receptacles
- NEMA L6-30P (2P3W) input plug for 230 V AC single-phase power
- 1U rack-mount design with horizontal mounting orientation
- Monitored PDU type with network management via RJ-45 port
- Supports HTTP(s), SSH, SNMP, Telnet, and Modbus over TCP
- Overcurrent, overload, and double pole protection features
- RoHS compliant and environmentally friendly construction
- Two-year limited warranty for peace of mind
- Manufactured in Taiwan with quality assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3-4201R-E2 |
| Brand Name | Raritan |
| Product Series | PX3 |
| Product Model | PX3-4201R-E2 |
| Product Name | PX3-4201R-E2 PX3 8-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P (2P3W) |
| Receptacle Type | U-Lock IEC 60320 C13,U-Lock IEC 60320 C19 |
| Receptacle Detail | 6 x U-Lock IEC 60320 C13,2 x U-Lock IEC 60320 C19 |
| Protection Type | Overcurrent Protection,Overload Protection,Double Pole |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Power Rating (VA) | 5 kVA |
| Input Current | 30 A |
| Management | |
| Management | HTTP(s) SSH Telnet RS-232 (Serial) Power IQ SNMP version v2/v3 SMTP JSON-RPC Modbus over TCP |
| Remote Outlet Switching | No |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 7.20" (182.88 mm) |
| Weight (Approximate) | 6.50 lb (2948.35 g) |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this PDU?
The Raritan PX3-4201R-E2 has a power rating of 5 kVA (kilovolt-amperes) with an input current of 30 A. This capacity supports distributing power to multiple devices in a rack, such as servers and networking equipment, within data center environments.
How many outlets does this PDU have and what types?
This PDU features eight outlets total: six U-Lock IEC 60320 C13 receptacles and two U-Lock IEC 60320 C19 receptacles. The U-Lock design ensures cables remain securely connected, preventing accidental disconnections in rack setups.
What input connector and voltage does this PDU use?
It uses a NEMA L6-30P (2P3W) input plug, designed for 230 V AC single-phase power. The input voltage range is 200 V AC to 240 V AC, compatible with standard electrical systems in data centers.
Is this PDU rack-mountable and what are its dimensions?
Yes, it is rack-mountable with a 1U height, fitting standard 19-inch racks horizontally. Dimensions are 1.70 inches (43.18 mm) height, 17.30 inches (439.42 mm) width, and 7.20 inches (182.88 mm) depth, weighing approximately 6.50 pounds (2948.35 grams).
What management features does this monitored PDU offer?
It supports network management via an RJ-45 port, allowing remote monitoring through protocols like HTTP(s), SSH, Telnet, SNMP v2/v3, SMTP, JSON-RPC, and Modbus over TCP. This enables tracking of power metrics, voltage, and environmental data without remote outlet switching.
What protection and compliance standards does this PDU meet?
The PDU includes overcurrent protection, overload protection, and double pole protection for electrical safety. It is RoHS (Restriction of Hazardous Substances) compliant, environmentally friendly, and comes with a two-year limited warranty.
What power capacity is listed for this UPS?
The listed power specification is 5 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes No, which helps buyers understand how many connected devices it can support in its intended deployment.
