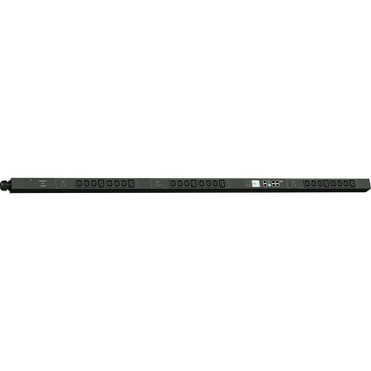

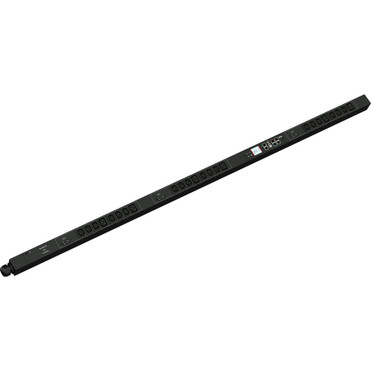

Raritan PX3-5525V-C5 24-Outlet Monitored PDU - 8. 60 kVA - 230V AC - Three Phase - NEMA L15-30P - 6x C19 - 18x C13 - 0U Rack Vertical
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates on a three-phase electrical system with a NEMA L15-30P plug, supporting 230V AC input and output. It provides 8.60 kVA of power capacity with 30A input current, ensuring stable power delivery to connected equipment. The unit includes overload and overcurrent protection to safeguard against electrical faults.
Network management is enabled through an RJ-45 port, supporting protocols like HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, SNMPv3, TFTP, DHCP/PXE, and SSH(CLI). This allows for remote monitoring of voltage, frequency, and load levels, facilitating centralized power management in IT infrastructure.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PX3-5525V-C5 combines robust power distribution with advanced monitoring in a space-efficient vertical design. Its circuit protection features and easy configuration ensure trouble-free access and reliable operation in demanding IT environments.
Comprehensive Power Monitoring
Remotely monitor single- or three-phase voltage, frequency, and load levels in real time. This enables proactive management to prevent downtime and optimize power usage across your rack equipment.
- Real-time electrical parameter tracking
- Supports multiple network protocols
- Centralized management capability
High-Density Outlet Configuration
With 24 total outlets (6 C19 and 18 C13), this PDU accommodates a mix of high-power and standard equipment. The configuration supports diverse device requirements in crowded rack environments.
- 6 IEC C19 outlets for high-power devices
- 18 IEC C13 outlets for standard equipment
- Flexible power distribution options
Deployment / Use Cases
This monitored PDU is deployed in environments where power reliability and visibility are paramount. Its three-phase design and 230V AC operation make it compatible with commercial power systems, while the outlet mix supports both high-power and standard IT equipment.
The vertical rack mounting and 0U height make it particularly valuable in space-constrained racks, allowing power distribution without consuming horizontal rack units. Network management capabilities enable integration with existing monitoring systems for comprehensive infrastructure oversight.
Data Center Rack Power Distribution
Ideal for data center racks requiring three-phase power distribution to servers, storage arrays, and networking equipment. The 8.60 kVA capacity and 24 outlets support high-density configurations while monitoring prevents overloads.
Network Closet Power Management
Suitable for network closets housing switches, routers, and other network gear. The vertical 0U mounting saves space, and network management allows remote monitoring without physical access.
Physical Profile
The PX3-5525V-C5 features a vertical rack-mountable design with 0U height, measuring 70.10" (1780.54 mm) in height, 2.10" (53.34 mm) in width, and 2.60" (66.04 mm) in depth. This slim profile maximizes space efficiency in standard 19-inch racks while providing full-length power distribution.
Vertical mounting along the rack side allows for clean cable management and easy access to outlets. The compact dimensions ensure compatibility with most rack enclosures without interfering with equipment installation or airflow.
- Width
- 2.10" (53.34 mm)
- Depth
- 2.60" (66.04 mm)
- Height
- 0U
Highlights
- 24 total outlets: 6 IEC C19 and 18 IEC C13 receptacles
- 8.60 kVA power capacity at 230V AC three-phase operation
- Network-enabled with RJ-45 port for remote monitoring
- Vertical 0U rack-mountable design saves horizontal space
- NEMA L15-30P plug for three-phase power connection
- Overload and overcurrent protection for equipment safety
- Supports multiple management protocols including SNMPv3 and MODBUS/TCP
- 2-year limited warranty for reliable performance assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3-5525V-C5 |
| Brand Name | Raritan |
| Product Series | PX |
| Product Model | PX3-5525V-C5 |
| Product Name | PX3-5525V-C5 24-Outlet PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L15-30P (3P4W) |
| Receptacle Type | IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C19,18 x IEC 60320 C13 |
| Protection Type | Overload Protection,Overcurrent Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Power Rating (VA) | 8.60 kVA |
| Input Current | 30 A |
| Management | |
| Management | Protocols: HTML JSON-RPC SSH Telnet MODBUS/TCP SNMPv3 TFTP DHCP/PXE SSH(CLI) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70.10" (1780.54 mm) |
| Width | 2.10" (53.34 mm) |
| Depth | 2.60" (66.04 mm) |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this PDU?
The Raritan PX3-5525V-C5 delivers 8.60 kVA of power capacity at 230V AC. This three-phase PDU handles 30A input current, making it suitable for high-density rack environments requiring substantial power distribution to multiple devices.
How many outlets does this PDU have and what types?
This PDU features 24 total outlets configured as 6 IEC 60320 C19 receptacles and 18 IEC 60320 C13 receptacles. The C19 outlets support higher-power devices, while the C13 outlets accommodate standard equipment, providing flexibility for diverse rack configurations.
What type of plug does this PDU use for power input?
The PDU uses a NEMA L15-30P (3P4W) plug for three-phase power connection. This plug type is designed for 230V AC systems and provides a secure connection to compatible power sources in commercial and data center environments.
How is this PDU mounted in a rack?
This PDU is designed for vertical rack mounting with a 0U height profile. It mounts along the side of standard 19-inch racks, conserving horizontal rack space while providing full-length power distribution. The vertical orientation facilitates clean cable management and easy outlet access.
What management capabilities does this monitored PDU offer?
The PDU includes network management via an RJ-45 port, supporting protocols such as HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, SNMPv3, TFTP, DHCP/PXE, and SSH(CLI). This enables remote monitoring of voltage, frequency, and load levels for proactive power management.
What protection features are included with this PDU?
The PDU incorporates overload protection and overcurrent protection to safeguard connected equipment. These features help prevent damage from electrical faults by automatically responding to abnormal current conditions, ensuring reliable operation in demanding IT environments.
What power capacity is listed for this UPS?
The listed power specification is 8.60 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
