StarTech. com RK1520WALHM 15U Wall-Mount Server Rack Cabinet - 16. 1" Deep Hinged Locking Enclosure - Black Steel
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This rack cabinet features a 15U vertical mounting space with adjustable mounting rails that support equipment depths from 2.4 to 16.0 inches, offering flexibility for various device sizes. The enclosure is constructed from high-quality SPCC cold-rolled steel and steel mesh, providing durability and effective passive cooling through ventilated front and side panels.

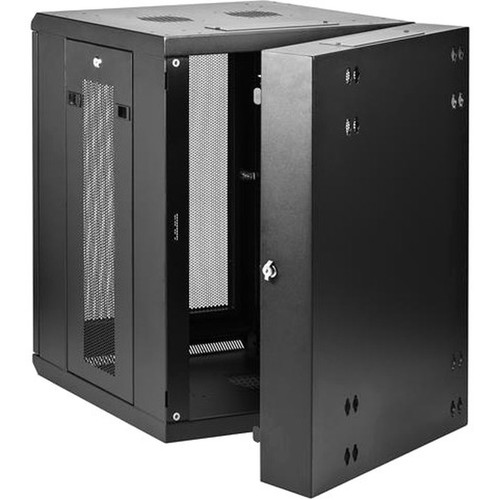

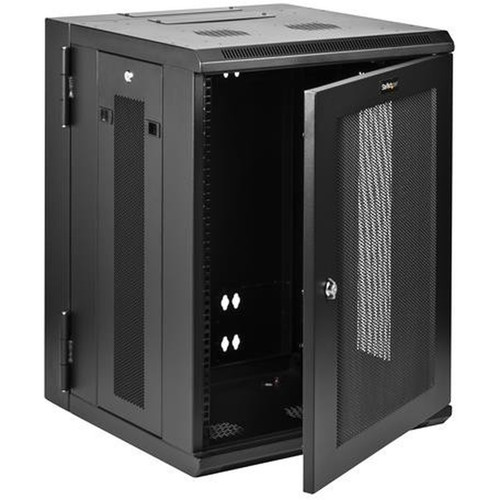

The design includes a 180-degree hinged front door that swings open for full rear access to mounted devices, simplifying cable management and hardware servicing. The door and side panels are reversible and removable, allowing customization of airflow and access based on your installation requirements. The cabinet is EIA/ECA-310-E compliant, ensuring compatibility with standard rackmount equipment.
This section brings together practical product details such as Application/Usage, Form Factor, Color Family, Product Color, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This wall-mount cabinet delivers a combination of strength, accessibility, and thermal management that makes it ideal for networking deployments. The integrated locking mechanism secures equipment against unauthorized access, while the hinged door design ensures technicians can easily reach all connections and components without dismounting devices.
Enhanced Cooling Support
The mesh front door and side panels promote natural airflow around installed equipment. For environments with higher thermal loads, the cabinet supports the installation of up to four optional 120mm fans (sold separately, model ACFANKIT12) to provide active cooling and maintain optimal operating temperatures.
- Mesh ventilation on front and sides
- Optional active fan support
- Reduces heat buildup in enclosed spaces
Simplified Installation
The cabinet ships fully assembled with all necessary mounting hardware, including 60 cage nuts and 60 screws for 12-24 threading. This eliminates the time and tools required for rack assembly, allowing you to focus immediately on installing and configuring your network equipment.
- Pre-assembled construction
- Includes mounting hardware
- No tools needed for setup
Deployment / Use Cases
This 15U enclosure is designed for environments where space efficiency and equipment security are priorities. Its wall-mount form factor makes it suitable for locations without dedicated server room floor space, such as retail back offices, small business network closets, or educational IT labs.
The cabinet's 198 lb weight capacity and adjustable depth rails support a wide range of networking hardware. Common deployments include housing managed or unmanaged network switches, patch panels for structured cabling systems, small network-attached storage units, or compact server appliances. The lockable design provides physical security for equipment in shared or semi-public areas.
Network Infrastructure Hub
Consolidate switches, patch panels, and power distribution units into a single secure enclosure. The 15U capacity provides ample space for growing network needs while keeping cables organized and protected.
- Centralizes networking gear
- Improves cable management
- Supports infrastructure expansion
Remote or Branch Office IT
Deploy in smaller offices where dedicated server rooms aren't available. The wall-mount installation keeps equipment off the floor and protected from accidental damage, while the locking mechanism secures valuable hardware.
- Space-saving wall mounting
- Secures equipment in shared spaces
- Professional appearance for client-facing areas
Physical Profile
The cabinet features a matte black finish that blends discreetly into technical environments. Its external dimensions of 30.40 inches high, 24 inches wide, and 21.80 inches deep provide a compact footprint while offering full 15U of internal mounting space. The steel mesh construction contributes to both structural integrity and thermal performance without adding excessive weight.
- Width
- 24" (609.60 mm)
- Depth
- 16.10" (408.94 mm)
- Height
- 30.40" (772.16 mm)
- Weight
- 198.42 lb (90000 g)
- Length
- 21.80" (553.72 mm)
What's in the Box
The cabinet ships complete with all components needed for immediate deployment and equipment mounting.
Highlights
- 15U wall-mount server rack cabinet with 16.1" depth for network switches and patch panels
- Fully assembled steel construction with 198 lb weight capacity and 4-post design
- 180° hinged locking front door provides full rear access to mounted equipment
- Vented mesh front and side panels support natural airflow and optional active cooling
- Adjustable mounting rails accommodate equipment depths from 2.4" to 16.0"
- Includes mounting hardware: 60 cage nuts, 60 screws, 1U shelf, and hook-and-loop fastener
- Reversible and removable doors/panels for flexible installation configurations
- EIA/ECA-310-E compliant and backed by a 5-year limited warranty
- Environmentally compliant with RoHS and REACH standards
- Black finish with professional appearance for commercial installations
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RK1520WALHM |
| Brand Name | StarTech.com |
| Product Name | 15U Wall-Mount Server Rack Cabinet - 16.1 in. Deep - Hinged |
| Packaged Quantity | 1 Each |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | Server,LAN Switch,Patch Panel |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel,Steel Mesh |
| Static/Stationary Weight Capacity | 198.42 lb (90000 g) |
| Height | 30.40" (772.16 mm) |
| Width | 24" (609.60 mm) |
| Length | 21.80" (553.72 mm) |
| Rack Height | 15U |
| Rack Depth | 16.10" (408.94 mm) |
| Miscellaneous | |
| Package Contents | 1 x Wall-mount Enclosure 1 x 1U Shelf 1 x 10 ft Hook and Loop 60 x 12-24 Cage Nuts 60 x 12-24 Screws 2 x Door Keys 2 x Side Panel Keys 1 x Instruction Manual |
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the weight capacity of this wall-mount rack cabinet?
The StarTech.com RK1520WALHM has a static weight capacity of 198.42 pounds (90,000 grams). This capacity supports typical networking equipment such as switches, patch panels, and small servers while maintaining structural integrity and safety when properly wall-mounted.
Does this cabinet require assembly before use?
No, this cabinet ships fully assembled. It arrives ready for immediate wall mounting and equipment installation. The package includes all necessary mounting hardware—cage nuts, screws, keys, and a shelf—so no additional assembly of the enclosure itself is required.
What cooling options are available for this enclosure?
The cabinet features ventilated mesh front doors and side panels that provide passive airflow. For enhanced cooling in warmer environments or with heat-generating equipment, it supports the installation of up to four optional 120mm fans (sold separately under model ACFANKIT12) to create active airflow through the enclosure.
Can the front door and side panels be removed or reconfigured?
Yes, both the front door and side panels are designed to be removable and reversible. This allows flexibility in installation—you can configure which side the door hinges from or remove panels entirely to accommodate specific airflow needs or unusual mounting situations while maintaining access to equipment.
What types of equipment is this rack cabinet designed to hold?
This cabinet is designed for standard 19-inch rackmount equipment including network switches, patch panels, servers, power distribution units, and other networking or server room infrastructure. Its 15U height provides space for multiple devices while the 16.1-inch depth accommodates most standard-depth networking gear.
What warranty coverage does this product include?
StarTech.com provides a 5-year limited warranty on this rack cabinet. This warranty covers defects in materials and workmanship under normal use. The product is also environmentally compliant with RoHS and REACH standards, reflecting its manufacturing quality and regulatory adherence.
What performance, throughput, or capacity detail stands out?
The listed power specification is 198.42 lb (90000 g), which helps position the unit for the right load level and installation role.
