StarTech. com RK819WALLOH 8U Hinged Wall-Mount Open Frame Server Rack - 4-Post 19" Network Rack with 139. 7 lb Capacity
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for reliable performance, the RK819WALLOH server rack measures 19.2" in height, 23.8" in width, and 21.9" in depth, providing 8U of vertical mounting space. The 4-post design distributes weight evenly and prevents rack sag, while the 19" width accommodates standard rack-mount equipment. The rack weighs approximately 33.3 pounds, making it manageable for installation while maintaining robust construction.
The open frame architecture eliminates enclosed sides, promoting natural convection cooling that reduces the need for additional fans. This design choice is particularly beneficial for heat-generating equipment like servers and switches. The rack arrives fully assembled with no additional assembly required, saving deployment time and ensuring proper structural alignment from the moment of installation.
This section brings together practical product details such as Rack Type, Application/Usage, Rack Post Quantity, Form Factor, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The RK819WALLOH combines practical design features with robust construction to address common IT infrastructure challenges. The hinged mechanism transforms rear-panel access from a cramped, awkward task into a straightforward process, significantly reducing maintenance time and improving cable organization. This feature is especially valuable in tight spaces where traditional racks would require complete equipment removal for rear access.
Enhanced Serviceability
The hinged design allows the entire rack to swing up to 90 degrees away from the wall, providing unobstructed access to all rear connections and cables without disturbing mounted equipment.
- Full rear panel visibility
- No equipment removal required
- Simplified cable routing
Regulatory Compliance
This rack meets TAA compliance requirements, making it suitable for government and educational purchases under GSA Schedule contracts. It also complies with EU RoHS and REACH environmental standards.
- GSA Schedule eligible
- Hazardous substance restricted
- Environmentally friendly manufacturing
Deployment / Use Cases
The RK819WALLOH is ideal for environments where floor space is limited but rack-mount equipment is necessary. Its wall-mount capability makes it perfect for network closets, small server rooms, or offices where traditional floor-standing racks would be impractical. The 8U capacity provides sufficient space for core infrastructure while maintaining a compact footprint.
Common deployment scenarios include mounting a combination of servers, LAN switches, and patch panels in educational institutions, government offices, or small to medium businesses. The open frame design makes it suitable for A/V equipment installations where ventilation and cable access are priorities. The TAA compliance ensures it meets procurement requirements for federal contracts and educational grants.
Network Closet Optimization
Mount this rack in standard network closets to organize switches, patch panels, and small servers while keeping floors clear for other equipment or storage.
- Maximizes vertical space
- Keeps cables organized
- Maintains accessibility
Remote Office IT Infrastructure
Deploy in branch offices or retail locations where dedicated server rooms aren't available but reliable network equipment mounting is essential.
- Space-efficient solution
- Professional appearance
- Easy to secure
Physical Profile

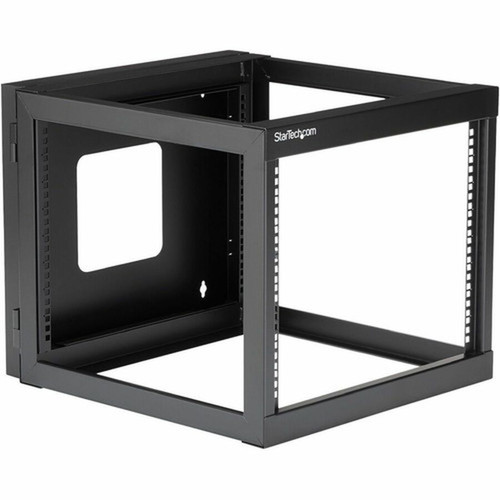

Constructed from cold-rolled steel, the RK819WALLOH offers a balance of strength and weight efficiency. The black powder-coated finish resists corrosion and maintains a clean appearance in professional environments. The 21.9" depth accommodates most standard-depth servers and network equipment while keeping the overall profile compact for wall mounting.

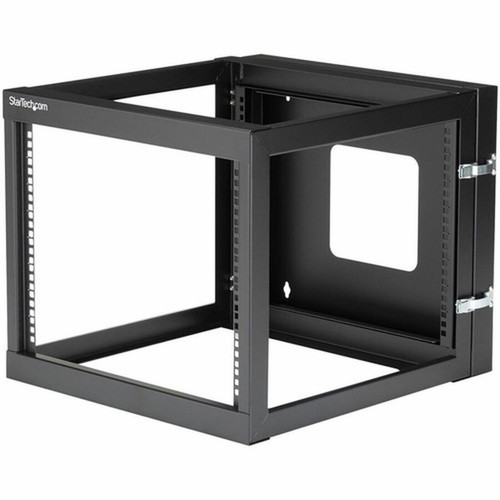

The rack includes integrated mounting holes spaced according to standard rack unit measurements, ensuring compatibility with all 19" rack-mount equipment. The hinged mechanism uses robust pivot points that support the full weight capacity while allowing smooth swinging motion. The open sides facilitate cable routing and provide visual access to installed equipment status indicators.
- Width
- 23.80" (604.52 mm)
- Depth
- 21.90" (556.26 mm)
- Height
- 19.20" (487.68 mm)
- Weight
- 139.70 lb (63366.85 g)
What's in the Box
The RK819WALLOH ships complete with all necessary hardware for immediate deployment. The package includes mounting screws and cage nuts for securing equipment, along with comprehensive installation instructions.
Highlights
- 8U hinged wall-mount server rack with 4-post design
- Open frame construction enhances airflow around equipment
- Hinged mechanism provides full access to rear panels
- 139.7 lb maximum weight capacity supports substantial loads
- TAA compliant for GSA Schedule purchases
- Includes all necessary mounting screws and cage nuts
- Cold-rolled steel construction for durability
- Fully assembled with no additional assembly required
- EU RoHS and REACH environmental compliance
- Lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RK819WALLOH |
| Brand Name | StarTech.com |
| Product Name | 8U 22in Depth Hinged Open Frame Wall Mount Server Rack |
| Packaged Quantity | 1 Each |
| Product Type | Rack Frame |
| Technical Information | |
| Rack Type | Open Frame |
| Application/Usage | Server,LAN Switch,Patch Panel,A/V Equipment,Computer |
| Rack Post Quantity | 4 |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Cold-rolled Steel (CRS) |
| Maximum Weight Capacity | 139.70 lb (63366.85 g) |
| Height | 19.20" (487.68 mm) |
| Width | 23.80" (604.52 mm) |
| Depth | 21.90" (556.26 mm) |
| Rack Height | 8U |
| Rack Width | 19" (482.60 mm) |
| Weight (Approximate) | 33.30 lb (15104.63 g) |
| Miscellaneous | |
| Package Contents | 8U 22in Depth Hinged Open Frame Wall Mount Server Rack 32 x #10-32 UNF Panel Screws 32 x #10-32 UNF Cage Nuts 1 x Instruction Manual |
| Assembly Required | No |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum weight capacity of this rack?
The RK819WALLOH supports up to 139.7 pounds (63.4 kilograms) of distributed weight across all mounted equipment. This capacity accommodates typical server, switch, and patch panel combinations while maintaining structural stability and safe operation.
How does the hinged design improve accessibility?
The hinged mechanism allows the entire rack frame to swing away from the wall, providing unobstructed access to rear panels of all mounted equipment. This eliminates the need to remove servers or switches for cable management, port configuration, or maintenance tasks, significantly reducing service time.
What equipment can be mounted in this 8U rack?
This rack accommodates standard 19" rack-mount equipment including servers, LAN switches, patch panels, A/V components, and network appliances. The 8U height provides space for approximately eight 1U devices or combinations of different sized equipment totaling eight rack units.
Is this rack TAA compliant?
Yes, the RK819WALLOH is TAA compliant, making it eligible for purchase under GSA Schedule contracts and meeting requirements for federal, state, and educational institution procurement. This compliance ensures the product meets specific manufacturing and sourcing standards for government purchases.
What mounting hardware is included?
The package includes 32 #10-32 UNF panel screws and 32 matching cage nuts for securing rack-mount equipment. These hardware components accommodate standard rack mounting patterns and provide secure attachment for servers, switches, and other installed devices.
Does this rack require assembly?
No assembly is required. The RK819WALLOH ships fully assembled with the hinged mechanism installed and tested. You can mount it directly to wall studs or appropriate supporting structure using your own mounting hardware, then begin installing equipment immediately.
What performance, throughput, or capacity detail stands out?
The listed power specification is 139.70 lb (63366.85 g), which helps position the unit for the right load level and installation role.
