StarTech.com Single Bay USB 3.0 to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA HDD/SSD - (SATDOCKU3S)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features

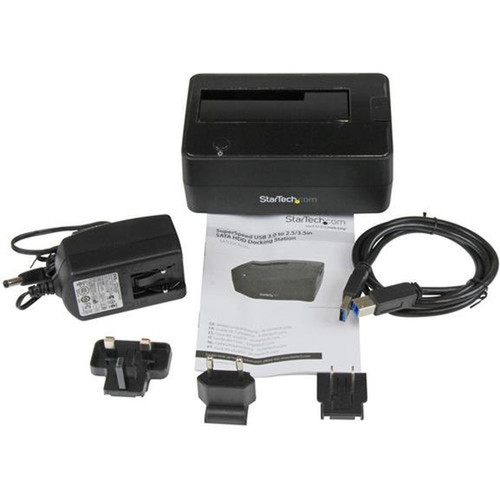

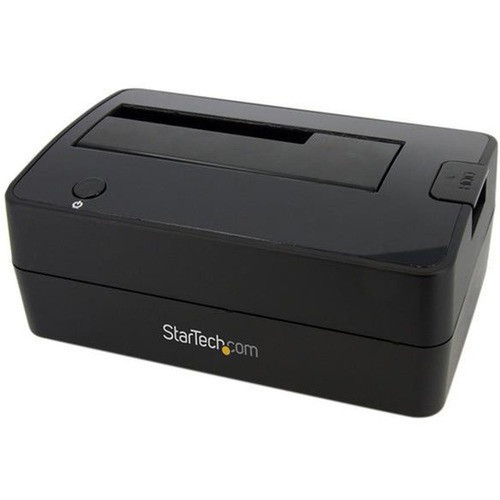

- USB 3.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD
- 1 x USB 3.0 Cable
- 1 x Universal Power Adapter (NA,EU,UK,ANZ)
- 1 x Instruction Manual
- USB 1.1
- USB 2.0
- Plug n Play
Number of Hard Drives Supported: 1
Number of Solid State Drive Supported: 1
Controller Type: Serial ATA
Number of Total Expansion Bays: 1
Number of 3.5" Bays: 1
Wireless LAN: No
UASP Support: No
Drive Interface: SATA/600
Host Interface: USB 3.0 Type B
Color Family: Black
Product Color: Black
Product Material: Plastic
Cooling Fan: No
Form Factor: External
Height: 2.60" (66.04 mm)
Width: 3.70" (93.98 mm)
Depth: 5.70" (144.78 mm)
Weight (Approximate): 13.83 oz (392 g)
Package Contents:
Compatibility:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 2 Year
- SuperSpeed USB 3.0 compliant host interface, with transfer rates up to 5Gbps
- High Speed USB 2.0 compliant host interface, with transfer rates up to 480Mbps
- Patented drive ejection mechanism
- Combined power switch and status LED
- Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives
- Supports 2.5" and 3.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
- Built-in short circuit protection
- Compact, desktop-style form factor
- Plug-and-Play and Hot-Swap compatible
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SATDOCKU3S |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | USB 3.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD |
| Packaged Quantity | 1 Each |
| Product Type | Drive Dock |
| Technical Information | |
| Number of Hard Drives Supported | 1 |
| Number of Solid State Drive Supported | 1 |
| Controllers | |
| Controller Type | Serial ATA |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of 3.5" Bays | 1 |
| Network & Communication | |
| Wireless LAN | No |
| UASP Support | No |
| Interfaces/Ports | |
| Drive Interface | SATA/600 |
| Host Interface | USB 3.0 Type B |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Plastic |
| Cooling Fan | No |
| Form Factor | External |
| Height | 2.60" (66.04 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 5.70" (144.78 mm) |
| Weight (Approximate) | 13.83 oz (392 g) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
| Product | StarTech.com 6 ft SuperSpeed USB 3.0 (5Gbps) Cable A to B M/M - Connect to your external solutions and transfer data at 10x the speed of USB 2.0 |
| SKU | USB3SAB6 |
| Sale Price | $10.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf2
Additional-pdf1
[/custom-user-manual]
| Qty | Price | Available |
|---|
