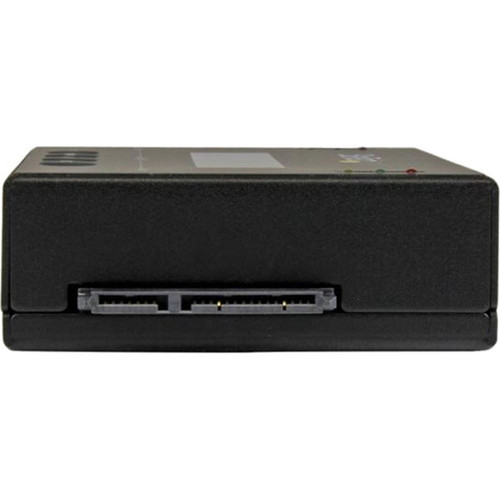

StarTech.com SATDUP11IMG 1: 1 Standalone HDD/SSD Duplicator with Disk Image Library Manager - SATA 6Gbps - 2.5/3.5" Drive Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This duplicator operates as a standalone device, supporting one source drive and one destination drive simultaneously. It utilizes Serial ATA/600 interface technology, compatible with SATA revision I, II, and III drives running at 1.5, 3.0, and 6.0 Gbps speeds. The unit offers three duplication modes, including sector-by-sector copying at rates up to 6 GB per minute for rapid data transfer.
Drive capacity support varies by form factor: 3.5-inch hard drives up to 6TB at 7200 RPM and 2.5-inch drives up to 1TB at 7200 RPM. The device maintains environmental certifications and comes with a two-year limited warranty for reliable long-term performance.
Relevant factors for this section include Operation Type, Number of Source Drives Supported, Number of Destination Drives Supported, Drive Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SATDUP11IMG simplifies drive cloning with its integrated image library, eliminating the need for external storage during multi-drive operations. Its universal compatibility with SATA drives across multiple generations ensures future-proof performance as storage technology evolves.
Multi-Image Library
Store and manage multiple drive images directly on the device for efficient batch cloning and restoration tasks.
- Reduces external dependency
- Streamlines workflow
Broad Drive Support
Handles both traditional hard disk drives and solid-state drives in 2.5-inch and 3.5-inch form factors.
- HDD and SSD compatible
- Dual form factor support
International Readiness
Universal power adapter and TAA compliance make this duplicator suitable for global deployments and government contracts.
- Multi-region power
- Procurement compliant
Deployment / Use Cases
IT departments can deploy this duplicator for rapid drive provisioning during workstation deployments or replacements, significantly reducing setup time compared to software-based cloning. Data recovery professionals benefit from the sector-by-sector copying mode when creating forensic copies of drives for analysis without altering original data.
System builders and integrators use the device for pre-loading operating systems and applications onto multiple drives before installation. Educational institutions and government agencies with TAA requirements find this unit particularly valuable for maintaining compliance while performing routine data migration tasks.
Relevant factors for this section include Operation Type, Number of Source Drives Supported, Number of Destination Drives Supported, Drive Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
IT Asset Management
Clone standardized configurations across multiple drives for consistent workstation deployments.
Data Recovery Operations
Create exact copies of drives for forensic analysis while preserving original evidence integrity.
Physical Profile
Measuring 1.10" (27.94 mm) in height, 3" (76.20 mm) in width, and 5.10" (129.54 mm) in depth, the duplicator maintains a compact form factor that fits easily on workbenches or in toolkits. At approximately 12.35 ounces (350 grams), it remains lightweight for transport between locations. The device is manufactured in Taiwan with environmentally friendly materials and processes.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.10" (27.94 mm), 2.5",3.5", 5.10" (129.54 mm), 12.35 oz (350 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.5",3.5"
- Depth
- 5.10" (129.54 mm)
- Height
- 1.10" (27.94 mm)
- Weight
- 12.35 oz (350 g)
What's in the Box
The package includes all necessary components for immediate operation with various drive configurations.
Highlights
- Standalone 1:1 duplicator requires no computer connection
- Disk image library management for storing multiple drive images
- Supports 2.5-inch and 3.5-inch HDD and SSD form factors
- SATA I/II/III compatibility (1.5/3.0/6.0 Gbps)
- Sector-by-sector copying at up to 6 GB per minute

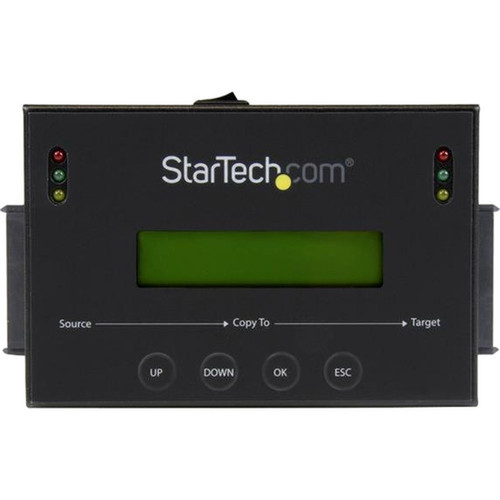

- Digital LCD display for operation and progress monitoring
- Universal power adapter with UK, NA, and EU plugs
- TAA compliant for government procurement
- Two-year limited warranty
- Environmentally friendly design and manufacturing
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SATDUP11IMG |
| Brand Name | StarTech.com |
| Product Name | 1:1 HDD/SSD Duplicator |
| Packaged Quantity | 1 Each |
| Product Type | Hard Drive/Solid State Drive Duplicator |
| Technical Information | |
| Operation Type | Standalone |
| Number of Source Drives Supported | 1 |
| Number of Destination Drives Supported | 1 |
| Storage Capacity Supported | Up to 6TB 7200 rpm 3.5",Up to 1TB 7200 rpm 2.5" |
| Interfaces/Ports | |
| Drive Interface | Serial ATA/600 |
| Physical Characteristics | |
| Drive Width | 2.5",3.5" |
| Height | 1.10" (27.94 mm) |
| Width | 3" (76.20 mm) |
| Depth | 5.10" (129.54 mm) |
| Weight (Approximate) | 12.35 oz (350 g) |
| Miscellaneous | |
| Package Contents | 1:1 HDD/SSD Duplicator 1 x Long SATA Cable 2 x Short SATA Cable 1 x eSATA + 12V Power Cable (Type M Power Connector) 1 x eSATA + 5V Power Cable (Type F Power Connector) 2 x HDD/SSD Pads 1 x Universal Power Adapter (UK/NA/EU) 1 x Instruction Manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What types of drives does this duplicator support?
The SATDUP11IMG supports both hard disk drives (HDDs) and solid-state drives (SSDs) with Serial ATA/600 interfaces. It accommodates 2.5-inch and 3.5-inch form factors, compatible with SATA revision I, II, and III drives operating at 1.5, 3.0, and 6.0 Gbps speeds. Capacity support extends up to 6TB for 7200 RPM 3.5-inch drives and up to 1TB for 7200 RPM 2.5-inch drives.
Does this duplicator require a computer to operate?
No, this is a standalone duplicator that operates independently without a computer connection. All cloning functions are controlled directly through the device interface, and it includes built-in disk image library management for storing multiple drive images internally. This makes it ideal for field use or environments where computer access is limited.
What duplication modes are available?
The duplicator offers three copying modes, including sector-by-sector duplication that transfers data at rates up to 6 GB per minute. This mode creates exact bit-for-bit copies of source drives, making it suitable for forensic applications and complete data migration. The device also provides other duplication methods optimized for different workflow requirements.
Is this duplicator suitable for government procurement?
Yes, the SATDUP11IMG is TAA (Trade Agreements Act) compliant, meeting requirements for U.S. government purchasing. This compliance ensures the product adheres to trade agreement standards, making it eligible for contracts with federal agencies and other organizations that mandate TAA-compliant equipment.
What power options are included?
The package includes a universal power adapter with interchangeable plugs for UK, NA, and EU regions, allowing deployment in multiple countries without additional adapters. The duplicator also comes with both eSATA + 12V and eSATA + 5V power cables with Type M and Type F connectors to accommodate different drive power requirements.
What warranty coverage is provided?
StarTech.com provides a two-year limited warranty for this duplicator, covering defects in materials and workmanship under normal use. The device is also manufactured with environmentally friendly processes and materials, aligning with sustainable IT practices while delivering reliable performance for drive cloning operations.
