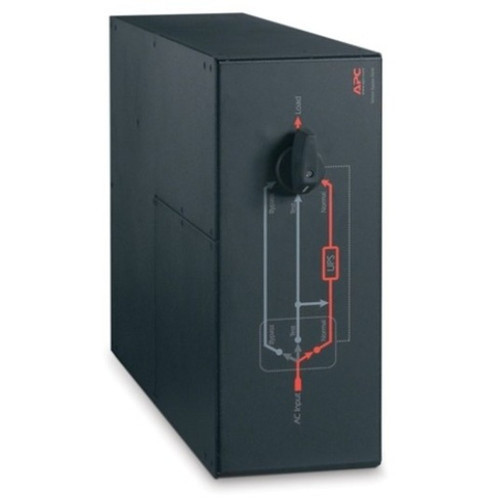

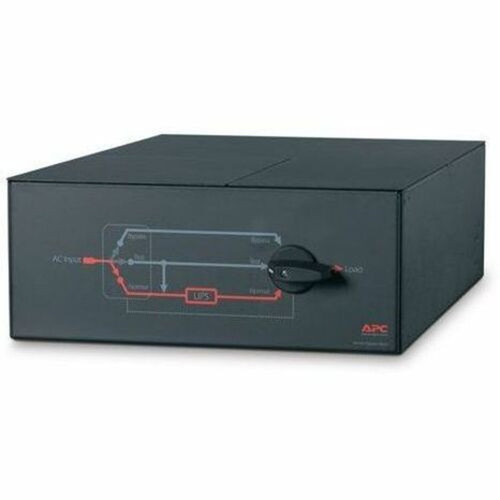

APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output - 20kVA (SBP16KP)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 20 kVA Rack Mountable Maintenance Bypass Switch
- Installation guide
- Rack mounting brackets
- User manual
Receptacles: 1 x Hard Wire 3-wire (H+N+E),1 x Hard Wire 3-wire (2PH + G),1 x Hard Wire 4-wire (2PH+N+G)
Protection Type: Overload
Load Capacity (VA): 20 kW
Input Voltage: 200 V AC,208 V AC,230 V AC,480 V AC
Output Voltage: 120 V AC,200 V AC,208 V AC,230 V AC
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 4U
Height: 7.01" (178 mm)
Width: 17.01" (432 mm)
Depth: 25.98" (660 mm)
Weight (Approximate): 47.09 lb (21359.66 g)
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Supports up to 100A, suitable for large-scale applications
- Compatible with various input and output voltages
- Includes a bypass switch for seamless maintenance
- Designed for rack installation, saving space in data centers
[custom-specifications]
| Specifications | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SBP16KP |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Model | SBP16KP |
| Product Name | 20 kVA Rack Mountable Maintenance Bypass Switch |
| Packaged Quantity | 1 Each |
| Product Type | Bypass Switch |
| Technical Information | |
| Receptacles | 1 x Hard Wire 3-wire (H+N+E),1 x Hard Wire 3-wire (2PH + G),1 x Hard Wire 4-wire (2PH+N+G) |
| Protection Type | Overload |
| Power Description | |
| Load Capacity (VA) | 20 kW |
| Input Voltage | 200 V AC,208 V AC,230 V AC,480 V AC |
| Output Voltage | 120 V AC,200 V AC,208 V AC,230 V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 7.01" (178 mm) |
| Width | 17.01" (432 mm) |
| Depth | 25.98" (660 mm) |
| Weight (Approximate) | 47.09 lb (21359.66 g) |
| Miscellaneous | |
| Package Contents | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
