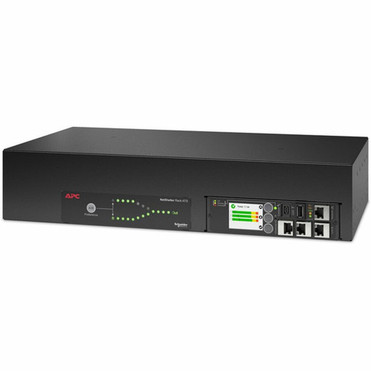

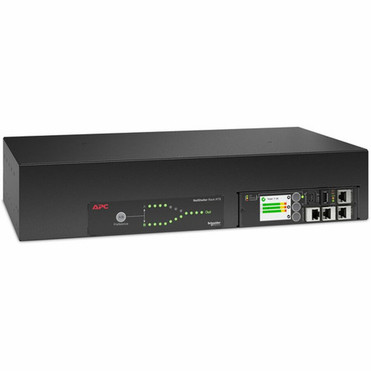

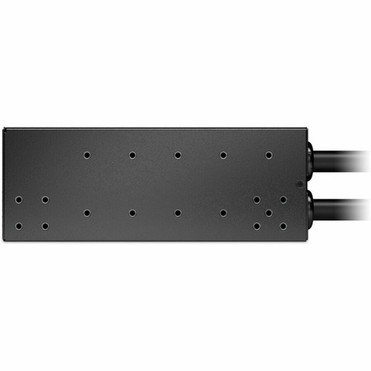

Schneider Electric NetShelter Automatic Transfer Switch - 1 x NEMA L6-30R - 208 V AC - 30 A (AP4431A)

Marketing Information: APC NetShelter Rack Automatic Transfer Switch (ATS) AP4431A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4431A is single phase 2U Rack ATS with 30A rated current, 208V rated voltage and 4992VA load capacity. For North America region, the Regulatory Derated Input Current is 24A. It comes with 2 NEMA L6-30P inlet and 1 NEMA L6-30R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Plug/Connector Type: NEMA L6-30P 24A (2P + E)

Receptacles: 1 x NEMA L6-30R

Input Voltage: 208 V AC

Output Voltage: 208 V AC

Current: 30 A

Color Family: Black

Product Color: Black

Form Factor: Rack-mountable

Rack Height: 2U

Height: 3.46" (88 mm)

Width: 17.01" (432 mm)

Depth: 9.29" (236 mm)

Weight (Approximate): 6.50 kg

Package Contents:

• NetShelter Automatic Transfer Switch
• Mounting Hardware
• Rack Mounting Brackets
• Serial Configuration Cable

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year

Additional Warranty Information: 2 years repair or replace
