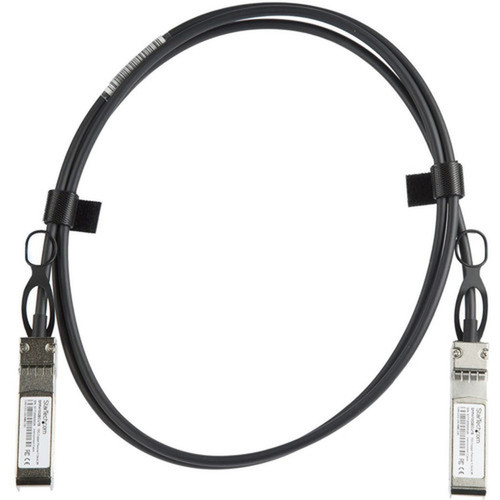

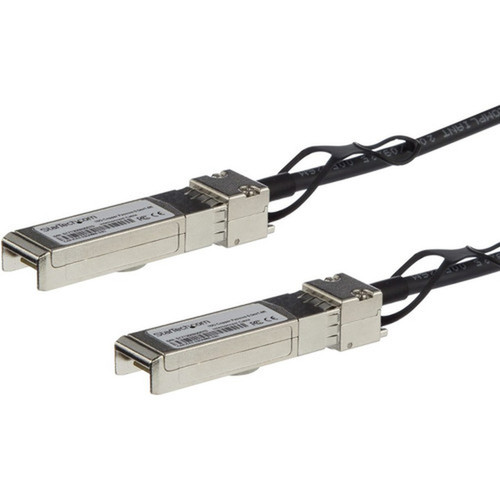

StarTech.com 1.5m 10G SFP+ to SFP+ Direct Attach Cable for Cisco SFP-H10GB-CU1-5M 10GbE SFP+ Copper DAC 10Gbps Passive Twinax - 100% | (SFPH10GBCU15)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- FirePOWER Firewall
- ASR9000 Router
- ASR1000 Router
- C9300 Switch
- C3850 Switch
Cable Type: Twinaxial
Cable Length: 4.9 ft (1.50 m)
Connector Type on First End: SFP+ Network - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x SFP+ Network - Male
Connector Type on Second End: SFP+ Network - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x SFP+ Network - Male
Device Supported: Network Device,Switch,Server,Router,Transceiver,Network Firewall,Rack Server
American Wire Gauge: 30 AWG
Data Transfer Rate: 10 Gbit/s
Features: Passive,Hot-swappable
Product Color: Black
Product Material: Copper
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 3.14 oz (89 g)
Compatibility: Cisco:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Limited Warranty: Lifetime
- 100% CISCO SFP-H10GB-CU1-5M COMPATIBLE: Works with Cisco switches like Firepower, ASR9000, ASR1000, C9300, C3850 and others
- TECHNICAL SPECS: 1.5m (4.9ft)
10 Gbps
Passive Twinax (Copper)
2x SFP+ Pluggable Connector
100 Ohm Impedance
30 AWG Wire Gauge
PVC Cable Jacket
Hot swappable
MSA Compliant - TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24.
- Hot-swappable
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 10GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SFPH10GBCU15 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | SFP+ Direct Attach Cable - 1.5 m (4.9 ft.) |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Twinaxial |
| Cable Length | 4.9 ft (1.50 m) |
| Connector Type on First End | SFP+ Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x SFP+ Network - Male |
| Connector Type on Second End | SFP+ Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x SFP+ Network - Male |
| Device Supported | Network Device,Switch,Server,Router,Transceiver,Network Firewall,Rack Server |
| American Wire Gauge | 30 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Features | Passive,Hot-swappable |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Copper |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 3.14 oz (89 g) |
| Miscellaneous | |
| Compatibility | Cisco:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
