StarTech.com SM2NGFFMBU33 M. 2 SATA SSD Enclosure - USB 3.0 (5Gbps) with UASP - Aluminum External Drive Case
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This drive enclosure features a SATA/600 interface that supports M.2 SATA SSDs with transfer speeds up to 6 Gbps, paired with a USB 3.0 Micro-B host interface delivering 5 Gbps connectivity. The implementation of USB Attached SCSI Protocol (UASP) support enables more efficient data transfers compared to standard USB mass storage protocols, reducing CPU utilization and improving overall system performance during file operations.
The enclosure maintains compatibility with SATA revisions I, II, and III, ensuring backward compatibility with older SATA M.2 drives while supporting the latest 6 Gbps SATA III standard. The single-drive configuration provides dedicated support for one M.2 SSD, with the external form factor eliminating the need for internal drive bays or specialized mounting hardware.
Relevant factors for this section include Number of Solid State Drive Supported, Number of Solid State Drive Installed, Number of Total Expansion Bays. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This M.2 SSD enclosure delivers practical advantages through its combination of performance features, build quality, and user-friendly design. The aluminum construction provides both thermal management and physical protection for your SSD, while the compact dimensions make it highly portable for field work or daily transport.
Broad Compatibility
Supports most common SATA M.2 SSD lengths including 30mm, 42mm, 60mm, and 80mm drives, with compatibility across SATA I, II, and III revisions for maximum flexibility with existing hardware.
- 30mm to 80mm drive lengths
- SATA I/II/III compatible
- B- and M-key SATA M.2 drives
Enhanced Performance
UASP support enables faster data transfers compared to traditional USB mass storage protocols, with reduced CPU overhead and improved efficiency for large file operations.
- UASP protocol support
- Reduced CPU utilization
- Optimized for large files
Simplified Deployment
Plug-and-play functionality works across major operating systems without additional drivers, while the included screw kit and mini screwdriver facilitate straightforward drive installation.
- No driver installation required
- Cross-platform compatibility
- Complete installation toolkit
Deployment / Use Cases
The SM2NGFFMBU33 enclosure serves multiple practical applications in business and professional environments. IT departments can utilize it for creating portable diagnostic drives with system recovery tools or for cloning drives during hardware upgrades. The compact form factor makes it particularly valuable for field technicians who need to transport data between sites or access drive contents without opening computer chassis.
Content creators and media professionals benefit from the high-speed USB 3.0 interface with UASP support when working with large video files, photography projects, or audio recordings. The enclosure also functions effectively as an external backup solution for critical data, providing a portable alternative to network-attached storage for smaller-scale backup requirements. Educational institutions and corporate training departments can use these enclosures to distribute standardized software images or training materials on reusable SSD media.
Physical Profile

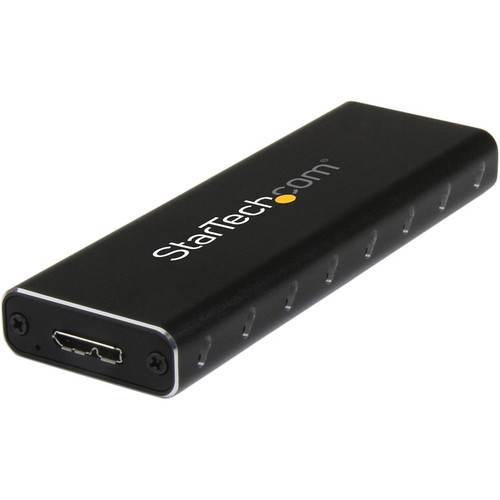

The enclosure features a sleek black aluminum chassis measuring just 0.60" × 1.40" × 3.90" (15.24 × 35.56 × 99.06 mm) and weighing only 1.76 ounces (50 grams). The aluminum construction provides excellent heat dissipation through specially engineered ventilation holes, helping maintain optimal operating temperatures for the enclosed SSD during extended use. The compact dimensions and lightweight design make it highly portable while the durable aluminum shell protects the drive from physical damage during transport.
- Width
- 1.40" (35.56 mm)
- Depth
- 3.90" (99.06 mm)
- Height
- 0.60" (15.24 mm)
- Weight
- 1.76 oz (50 g)
What's in the Box
The enclosure ships complete with all necessary components for immediate deployment, including the primary enclosure unit and essential installation accessories.
Highlights
- Converts M.2 SATA SSDs to portable USB 3.0 storage
- Aluminum construction with ventilation for thermal management
- UASP support for faster data transfers with reduced CPU load
- Compatible with 30mm, 42mm, 60mm, and 80mm SATA M.2 drives
- Supports SATA I, II, and III revisions (1.5/3.0/6.0 Gbps)
- Plug-and-play operation with no drivers required
- Compact dimensions: 0.60" × 1.40" × 3.90" (15.24 × 35.56 × 99.06 mm)
- Includes complete installation toolkit with screwdriver
- 2-year limited warranty for peace of mind
- TAA compliant and meets EU RoHS environmental standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SM2NGFFMBU33 |
| Brand Name | StarTech.com |
| Product Name | USB 3.0 to M.2 SATA External SSD Enclosure with UASP |
| Packaged Quantity | 1 Each |
| Product Type | Drive Enclosure |
| Technical Information | |
| Number of Solid State Drive Supported | 1 |
| Number of Solid State Drive Installed | No |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Network & Communication | |
| Wireless LAN | No |
| UASP Support | Yes |
| Interfaces/Ports | |
| Drive Interface | SATA/600,M.2 |
| Host Interface | USB 3.0 Micro-B |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Aluminum |
| Form Factor | External |
| Height | 0.60" (15.24 mm) |
| Width | 1.40" (35.56 mm) |
| Depth | 3.90" (99.06 mm) |
| Weight (Approximate) | 1.76 oz (50 g) |
| Miscellaneous | |
| Package Contents | USB 3.0 to M.2 SATA External SSD Enclosure with UASP 1 x USB 3.0 Cable 1 x SSD screw kit 1 x Mini Screw Driver 1 x Instruction Manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What types of M.2 SSDs are compatible with this enclosure?
This enclosure is specifically designed for M.2 SATA SSDs that use the SATA interface. It supports B-key and M-key SATA M.2 drives in common lengths including 30mm, 42mm, 60mm, and 80mm. The enclosure is not compatible with M.2 NVMe SSDs or AHCI PCI-Express SSDs, so you must verify your drive uses the SATA interface before purchasing.
What is UASP support and how does it benefit performance?
UASP (USB Attached SCSI Protocol) is an advanced transfer protocol that improves data transfer efficiency compared to standard USB mass storage protocols. With UASP support, this enclosure can achieve faster file transfers, particularly with large files, while reducing CPU utilization during data operations. This results in quicker backup times and more responsive performance when accessing files on the external drive.
What operating systems does this enclosure support?
The enclosure offers plug-and-play compatibility with major operating systems including Windows, macOS, and Linux distributions. No additional drivers or software installation is required for basic functionality. The enclosure appears as a standard external storage device once connected via USB 3.0, allowing immediate file access and transfer capabilities across supported platforms.
What is included in the package for drive installation?
The package includes a complete installation toolkit consisting of the aluminum enclosure, a USB 3.0 cable for connectivity, an SSD screw kit with the necessary mounting hardware, a mini screwdriver for installation, and a comprehensive instruction manual. These components provide everything needed to securely install your M.2 SATA SSD into the enclosure and begin using it immediately.
What are the physical dimensions and weight of this enclosure?
The enclosure measures 0.60 inches in height, 1.40 inches in width, and 3.90 inches in depth (15.24 × 35.56 × 99.06 mm). It weighs approximately 1.76 ounces (50 grams). These compact dimensions make it highly portable while the aluminum construction provides durability and thermal management for the enclosed SSD during operation.
What warranty and compliance certifications does this product have?
This enclosure comes with a 2-year limited warranty from StarTech.com. It is TAA (Trade Agreements Act) compliant and meets EU RoHS (Restriction of Hazardous Substances) environmental standards. The product also complies with REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) and WEEE (Waste Electrical and Electronic Equipment Directive) regulations, ensuring responsible manufacturing and disposal practices.
