APC by Schneider Electric SMT2200RM2UC APC Smart-UPS 2200VA Line Interactive Rackmount UPS - 2U - 1920VA/1980W - 120V - 8 Outlets - SmartConnect - AVR
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The APC Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect is a line-interactive UPS engineered for rackmount deployment in server rooms, network closets, and business-critical environments. This 2U rackmount unit delivers 1920VA/1980W of pure sine wave power protection with automatic voltage regulation (AVR) to correct utility voltage fluctuations without switching to battery.

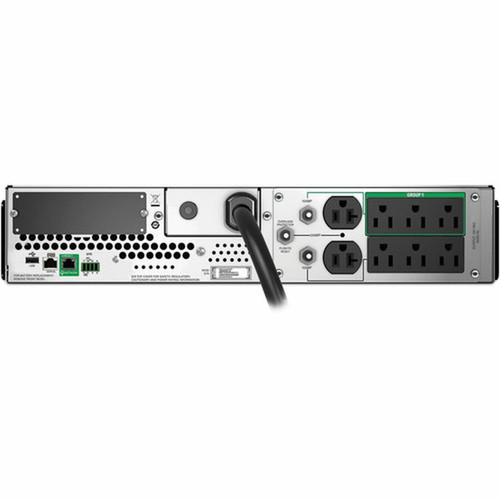

Featuring eight NEMA outlets—six 5-15R and two 5-20R—this UPS supports a mix of equipment loads. The integrated SmartConnect Ethernet port enables cloud-based remote power monitoring and management, while hot-swappable battery design allows for maintenance without downtime. Built with a black finish, it includes rack mounting brackets and support rails for secure installation in standard 19-inch racks.
Relevant product facts for this section include Plug/Connector Type: NEMA 5-20P, Receptacle Type: NEMA 5-20P, Receptacle Detail: 2 x NEMA 5-20R,6 x NEMA 5-15R, Load Capacity (VA): 1.92 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Technical Overview
This Smart-UPS operates on a single-phase, line-interactive topology with a 10 ms typical transfer time. It accepts input voltage from 75 V AC to 154 V AC and delivers regulated 120 V AC output. The sine wave output ensures compatibility with sensitive electronic equipment, including servers, storage arrays, and networking gear.
The unit incorporates a 530 J surge energy rating for protection against power spikes. Battery chemistry is lead acid, with a typical recharge time of three hours. Management is handled through the SmartConnect port, which provides remote monitoring capabilities without additional management cards. The line-interactive design includes Automatic Voltage Regulation (AVR) that corrects minor voltage fluctuations without switching to battery, preserving battery life and maintaining consistent power delivery. This topology balances efficiency with robust protection, making it suitable for environments where power quality varies but extended runtime demands are moderate.
Key Product Advantages
This UPS combines high power capacity with rack-optimized design and intelligent management features. Automatic Voltage Regulation maintains stable output during brownouts and overvoltages, extending battery life and reducing wear. The hot-swappable battery system allows for replacement without powering down connected equipment, ensuring continuous uptime.
SmartConnect Remote Management
The integrated SmartConnect Ethernet port enables cloud-based monitoring of power status, battery health, and environmental conditions via a web interface or mobile app, providing alerts and historical data without on-site visits.
- Cloud-based monitoring
- Remote alerts
- Historical data logging
Graceful Shutdown Support
Includes PowerChute Serial Edition software for graceful shutdown of connected systems via serial or USB cables, protecting data and hardware during extended outages.
- PowerChute Serial Edition included
- Serial and USB connectivity
- Automatic system shutdown
Deployment / Use Cases

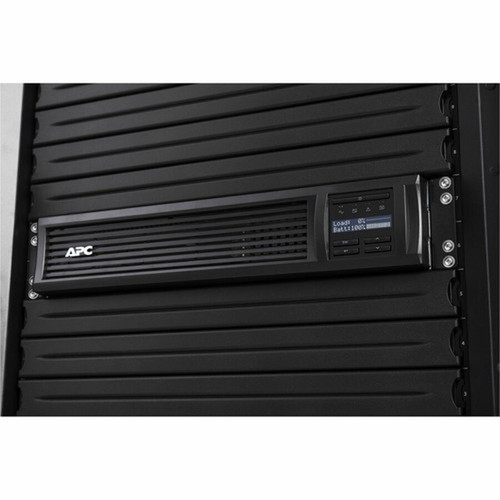

This 2200VA rackmount UPS is designed for environments where space efficiency and reliable power protection are critical. Its 2U form factor makes it suitable for standard server racks, network cabinets, and telecom closets where vertical space is at a premium.
Ideal applications include protecting rack-mounted servers, storage arrays, network switches, and business VoIP systems in small to medium-sized server rooms. The outlet mix supports both standard and high-draw equipment, while the pure sine wave output ensures safe operation with active PFC power supplies common in modern IT hardware.
Server Room & Network Closet
Provides backup power for rack-mounted servers, NAS devices, and network infrastructure, ensuring continuity during utility outages or voltage irregularities.
Business VoIP & Retail POS
Protects voice-over-IP phone systems and point-of-sale terminals from power disruptions that could interrupt communications or transactions.
Physical Profile
The UPS features a black rackmount chassis measuring 3.39" (86 mm) in height, 17.01" (432 mm) in width, and 26.89" (683 mm) in depth, occupying 2U of rack space. Weighing approximately 93.28 lb (42.3 kg), it includes rack mounting brackets and support rails for secure installation in standard 19-inch racks. The 8 ft (2.44 m) power cord provides flexibility in rack placement.
- Width
- 17.01" (432 mm)
- Depth
- 26.89" (683 mm)
- Height
- 3.39" (86 mm)
- Weight
- 93.28 lb (42311.10 g)
- Length
- 8 ft (2.44 m)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights
- 1920VA/1980W line-interactive pure sine wave UPS
- 2U rackmount form factor for space-efficient deployment
- Eight outlets: six NEMA 5-15R and two NEMA 5-20R
- SmartConnect Ethernet port for cloud-based remote monitoring
- Automatic Voltage Regulation (AVR) corrects utility voltage
- Hot-swappable battery for maintenance without downtime
- Includes PowerChute Serial Edition for graceful shutdown
- Energy Star certified for energy efficiency
- RoHS compliant and environmentally friendly
- 3-year UPS warranty with 2-year battery warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT2200RM2UC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail | 2 x NEMA 5-20R,6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 10 ms |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 1.92 kVA |
| Load Capacity (Watt) | 1.98 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 154 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 530 J |
| Management | |
| Network Management | SmartConnect |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 6.60 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 26.89" (683 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 93.28 lb (42311.10 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect Rack mounting brackets Rack mounting support rails Smart UPS signalling RS-232 cable USB cable |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This UPS delivers 1.92 kVA (1920VA) and 1.98 kW (1980W) of pure sine wave power protection. This capacity supports rack-mounted servers, storage arrays, network switches, and other critical equipment in small to medium-sized server rooms or network closets.
How long does this UPS provide backup power at full load?
At full load, the backup runtime is 6.6 minutes. This provides sufficient time for connected systems to perform graceful shutdowns during power outages, protecting data and hardware integrity. The line-interactive design with Automatic Voltage Regulation helps preserve battery life by correcting minor voltage fluctuations without switching to battery.
What types and how many outlets does this UPS include?
This unit includes eight NEMA outlets: six 5-15R outlets for standard equipment and two 5-20R outlets for higher-draw devices. This mix supports a variety of rack-mounted servers, storage, networking gear, and business VoIP systems, allowing flexible power distribution in rack environments.
What input and output voltage does this UPS support?
The UPS accepts 120V AC input with a wide range of 75V to 154V AC, and delivers regulated 120V AC output. This single-phase, line-interactive design with pure sine wave output ensures compatibility with sensitive electronic equipment, including servers with active PFC power supplies.
Is this UPS designed for rack or tower deployment?
This is a rackmount UPS with a 2U form factor, designed for installation in standard 19-inch server racks. It includes rack mounting brackets and support rails for secure deployment. The 2U height makes it space-efficient for server rooms, network cabinets, and telecom closets where vertical space is limited.
What management and connectivity options are available?
The integrated SmartConnect Ethernet port enables cloud-based remote monitoring of power status, battery health, and environmental conditions. The unit also includes PowerChute Serial Edition software for graceful shutdown via serial or USB connections. Hot-swappable battery design allows maintenance without downtime, and the 530 J surge energy rating provides protection against power spikes.
