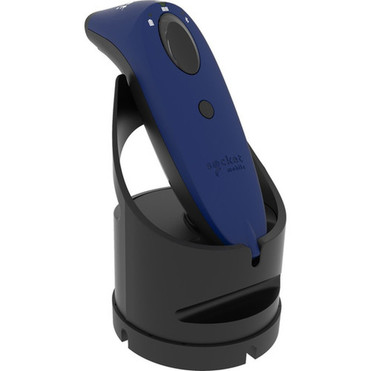

Socket Mobile SocketScan S720, Linear Barcode Plus QR Code Reader, Blue & Black Dock - Wireless Connectivity - 14.96" (380 mm) Scan - (CX3985-3042)
Write a Review
Socket Mobile
Socket Mobile SocketScan S720, Linear Barcode Plus QR Code Reader, Blue & Black Dock - Wireless Connectivity - 14.96" (380 mm) Scan - (CX3985-3042)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- SocketScan S720, Linear Barcode Plus QR Code Reader, Blue
- Black Dock

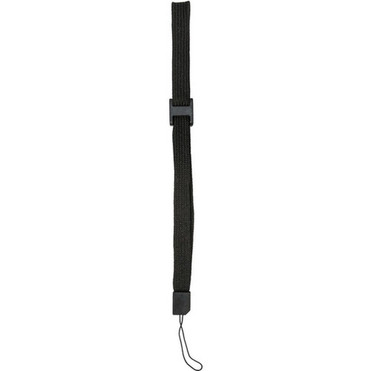

- Wrist strap
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported: 1D Symbologies: Codabar, Code 39, Code 93, Code 128, EAN-13, EAN-8, Interleaved 2 of 5, ISBT 128, UPC A, UPC E1, Chinese 2 of 5, Codabar, Code 11, Code 16KCode 39, Code 93, Code 128, Discrete 2 of 5, EAN-13, EAN-8, GS1 Databar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, UPC A, UPC E1, Standard 2 of 5, UK Plessey
2D Symbologies: Data Matrix, Micro QR Code, PDF417, QR Code, Aztec, Data Matrix, Han Xin, Micro PDF417, Micro QR Code, PDF417, QR Code
Light Source: LED
Image Sensor Type: Linear
Scanning Distance: 14.96" (380 mm)
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Maximum Ambient Light: 100000 lux
Drop Specification: 4 ft. drop to linoleum
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Image Sensor Resolution: 1280 x 960
Features: Notification LED
Bluetooth: Yes
Battery Chemistry: Nickel Metal Hydride (NiMH)
Battery Capacity: 2000 mAh
Maximum Battery Run Time: 16 Hour
Maximum Battery Recharge Time: 6 Hour
Operating Temperature: 32°F (0°C) to 113°F (45°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Form Factor: Handheld
Color Family: Blue
Product Color: Blue
Cradle Color: Black
Weight (Approximate): 4.13 oz (117 g)
Package Contents:
Application/Usage: Ticketing,Asset Tracking,Transportation,Delivery,Loyalty Program,Inventory,Hospitality
Platform Supported: PC,Mac,iOS,Android
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 1 Year
Additional Warranty Information: optional extended warranty available.
- Laser-free design provides high-performance scanning without the risk of eye injury
- Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
- Bluetooth technology - Allows compatibility with most of your smart devices
[custom-specifications]
| Specifications | |
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX3985-3042 |
| Manufacturer Website Address | http://www.socketmobile.com |
| Brand Name | Socket Mobile |
| Product Line | SocketScan |
| Product Series | 700 |
| Product Model | S720 |
| Product Name | SocketScan S720, Linear Barcode Plus QR Code Reader, Blue & Black Dock |
| Packaged Quantity | 1 |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D Symbologies: Codabar, Code 39, Code 93, Code 128, EAN-13, EAN-8, Interleaved 2 of 5, ISBT 128, UPC A, UPC E1, Chinese 2 of 5, Codabar, Code 11, Code 16KCode 39, Code 93, Code 128, Discrete 2 of 5, EAN-13, EAN-8, GS1 Databar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, UPC A, UPC E1, Standard 2 of 5, UK Plessey 2D Symbologies: Data Matrix, Micro QR Code, PDF417, QR Code, Aztec, Data Matrix, Han Xin, Micro PDF417, Micro QR Code, PDF417, QR Code |
| Light Source | LED |
| Image Sensor Type | Linear |
| Scanning Distance | 14.96" (380 mm) |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | 4 ft. drop to linoleum |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 960 |
| Features | Notification LED |
| Network & Communication | |
| Bluetooth | Yes |
| Battery Information | |
| Battery Chemistry | Nickel Metal Hydride (NiMH) |
| Battery Capacity | 2000 mAh |
| Maximum Battery Run Time | 16 Hour |
| Maximum Battery Recharge Time | 6 Hour |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 113°F (45°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Blue |
| Product Color | Blue |
| Cradle Color | Black |
| Weight (Approximate) | 4.13 oz (117 g) |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Ticketing,Asset Tracking,Transportation,Delivery,Loyalty Program,Inventory,Hospitality |
| Platform Supported | PC,Mac,iOS,Android |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | optional extended warranty available. |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Information
1 Year
