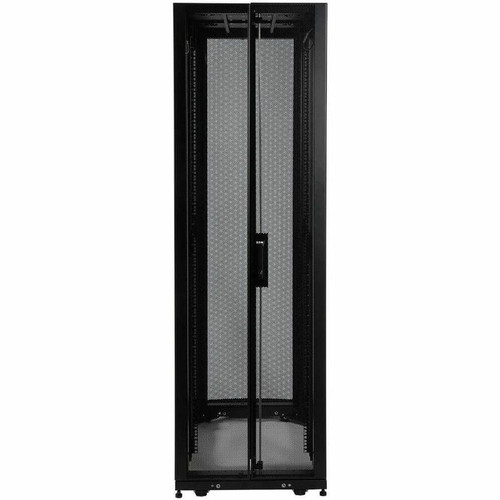

Tripp Lite series 42U Mid-Depth SmartRack Expansion Rack (No Side Panels Included) - 42U Rack Height x 19" (482.60 mm) Rack Width - - (SR42UBMDEXP)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 42U Mid-Depth SmartRack Expansion Rack (No Side Panels Included)
- 50 x M6 Cage Nuts
- 50 x M6 Screws
- Stabilizing Brackets
- 2 x Door keys
- 50 x M6 Washers
- Owner's Manual
Color Family: Black
Product Color: Black
Dynamic/Rolling Weight Capacity: 2250 lb (1020582.83 g)
Static/Stationary Weight Capacity: 3000 lb (1360777.11 g)
Height: 78.50" (1993.90 mm)
Width: 26.63" (676.40 mm)
Depth: 36" (914.40 mm)
Rack Height: 42U
Rack Width: 19" (482.60 mm)
Weight (Approximate): 186 lb (84368.18 g)
Package Contents:
Assembly Required: No
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- 42U SmartRack enclosure with doors and NO side panels. 'EXP' version is an expansion model for when several cabinets are bayed together
- 36" (927mm) depth (with mounting depth increments from 4 to 31") and standard 24" (600mm) width
- 4 interior vertical posts with unthreaded square hole openings
- Ships fully assembled
- Massive front to rear ventilation capacity
- 3000 lb stationary / 2250 lb rolling load capacity
- Locking, removable, reversible front and rear doors
- Rolls through standard 7 foot doorways
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SR42UBMDEXP |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SR42UBMDEXP |
| Product Name | 42U Mid-Depth SmartRack Expansion Rack (No Side Panels Included) |
| Product Type | Rack Cabinet |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Dynamic/Rolling Weight Capacity | 2250 lb (1020582.83 g) |
| Static/Stationary Weight Capacity | 3000 lb (1360777.11 g) |
| Height | 78.50" (1993.90 mm) |
| Width | 26.63" (676.40 mm) |
| Depth | 36" (914.40 mm) |
| Rack Height | 42U |
| Rack Width | 19" (482.60 mm) |
| Weight (Approximate) | 186 lb (84368.18 g) |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite series SmartRack 4POSTRAILKIT1U Rack Mount for UPS - Silver - 150 lb (68038.86 g) Load Capacity |
| SKU | 4POSTRAILKIT1U |
| Sale Price | $113.95 |
| Product | Tripp Lite 3U Fan Panel - 3 Fan - 120 V AC - 3U - Black |
| SKU | SRFAN3U |
| Sale Price | $292.95 |
| Product | Tripp Lite SRBOLTDOWN - Aluminum |
| SKU | SRBOLTDOWN |
| Sale Price | $55.95 |
| Product | Tripp Lite series Heavy-Duty Rolling Caster Kit (includes 4 Casters) - 750 lb (340194.28 g) Load Capacity |
| SKU | SRCASTERHDKIT |
| Sale Price | $213.95 |
| Product | Tripp Lite SRSHELF4PSLHD Rack Shelf - Black - Cold-rolled Steel (CRS) - 100 lb (45359.24 g) Maximum Weight Capacity - 5 Year Warranty |
| SKU | SRSHELF4PSLHD |
| Sale Price | $634.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Manufacturer-Brochure
[/custom-user-manual]
