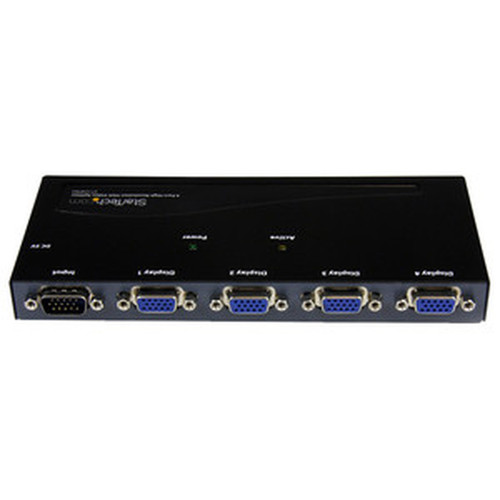

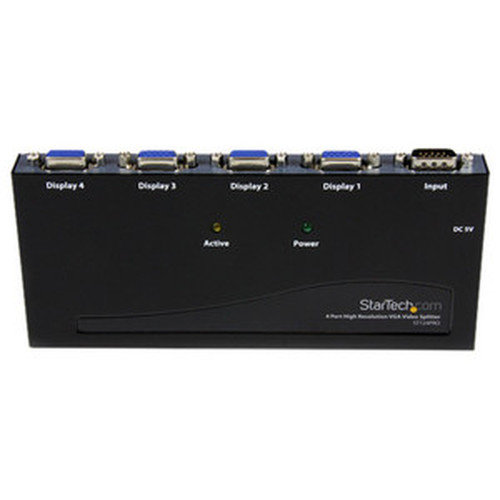

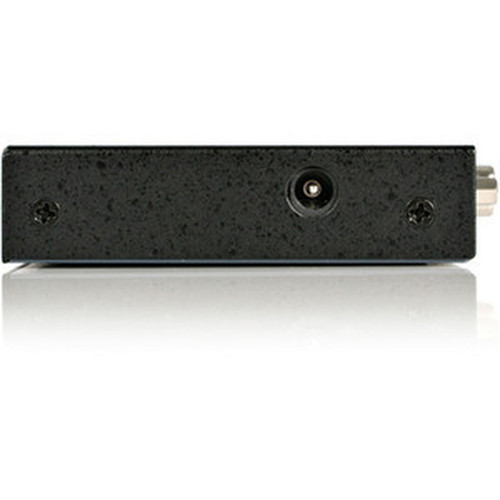

StarTech.com ST124PRO 4-Port VGA Video Splitter - 350 MHz Bandwidth - 2048 x 1536 Resolution - Daisy Chainable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The StarTech.com ST124PRO 4-Port High Resolution VGA Video Splitter delivers professional-grade video distribution for business and commercial environments. This signal splitter enables a single VGA video source to simultaneously display identical content across up to four different monitors, maintaining high-quality video integrity across all outputs.
Engineered with a robust 350 MHz video bandwidth, the splitter supports resolutions up to 2048x1536 at 80Hz refresh rates, ensuring crisp, clear visuals for presentations, digital signage, control rooms, and training facilities. The compact steel enclosure provides durability while maintaining a low-profile footprint suitable for rack mounting or desktop placement.
Relevant factors for this section include Maximum Video Resolution, Maximum Video Bandwidth, VGA In, VGA Out. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
The ST124PRO utilizes advanced video amplification technology to maintain signal strength across extended distances, supporting maximum VGA cable lengths up to 213 feet (65 meters) without signal degradation. This makes it ideal for installations where displays are positioned at varying distances from the video source.
The splitter features DDC (Display Data Channel) compatibility, allowing connected monitors to communicate their display capabilities to the source device for automatic configuration. This ensures optimal resolution and refresh rate settings without manual adjustment.
Relevant factors for this section include Maximum Video Resolution, Maximum Video Bandwidth, VGA In, VGA Out. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The ST124PRO offers several distinct advantages for professional video distribution applications. Its daisy-chain capability allows for virtually unlimited expansion by connecting multiple splitters in series, enabling distribution to dozens of displays from a single video source while maintaining signal quality.
High Bandwidth Performance
The 350 MHz bandwidth ensures minimal signal loss and maintains video quality even at maximum resolution settings, providing sharp text and detailed graphics across all connected displays.
- Supports 2048x1536 resolution
- Maintains 80Hz refresh rate
- Minimal signal degradation
Extended Distance Support
With support for cable lengths up to 213 feet, this splitter accommodates installations where displays are positioned far from the video source, eliminating the need for additional signal boosters.
- 65 meter maximum distance
- Uses standard VGA cables
- No additional amplification needed
Flexible Deployment Options
The compact design and included rubber feet allow for versatile placement options, while the steel construction ensures durability in commercial environments with continuous operation.
- Desktop or rack mounting
- Black steel enclosure
- Low-profile design
Deployment / Use Cases
The ST124PRO is specifically designed for scenarios requiring identical video content across multiple displays. Its high-resolution support and extended distance capabilities make it suitable for demanding commercial applications where visual quality and reliability are paramount.
In digital signage deployments, the splitter enables synchronized content display across multiple screens in retail environments, airports, or corporate lobbies. For training facilities and classrooms, it ensures all participants view identical instructional materials simultaneously without quality variation.
Control Room Monitoring
Ideal for security operations centers and industrial control rooms where operators need identical video feeds across multiple monitoring stations for situational awareness and redundancy.
Presentation Environments
Perfect for conference rooms, auditoriums, and event spaces where presenters need their content displayed on multiple screens throughout the venue without signal degradation.
Physical Profile
The splitter features a compact black steel enclosure measuring 7.20" (182.88 mm) in length, 3.10" (78.74 mm) in width, and just 0.80" (20.32 mm) in height. This low-profile design allows for discreet placement behind monitors or within equipment racks. The unit weighs approximately 13.83 ounces (392 grams), making it lightweight yet durable for professional installations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.80" (20.32 mm), 350 MHz, 13.83 oz (392 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 350 MHz
- Height
- 0.80" (20.32 mm)
- Weight
- 13.83 oz (392 g)
- Length
- 7.20" (182.88 mm)
What's in the Box
The package includes all necessary components for immediate deployment of the video splitter system.
Highlights
- Distributes one VGA source to four displays simultaneously
- Supports high-resolution video up to 2048x1536 @ 80Hz
- 350 MHz video bandwidth maintains signal quality
- Daisy-chain capable for unlimited display expansion
- Maximum operating distance of 213 feet (65 meters)
- Uses standard VGA extension cables
- DDC compatible for automatic display configuration
- Compact steel enclosure with black finish
- TAA compliant for government procurement
- 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST124PRO |
| Brand Name | StarTech.com |
| Product Name | 4 Port High Resolution VGA Video Splitter - 350 MHz |
| Packaged Quantity | 1 Each |
| Product Type | Signal Splitter |
| Video | |
| Maximum Video Resolution | 2048 x 1536 |
| Maximum Video Bandwidth | 350 MHz |
| Interfaces/Ports | |
| VGA In | Yes |
| VGA Out | Yes |
| Number of VGA Inputs | 1 |
| Number of VGA Outputs | 4 |
| Media & Performance | |
| Maximum Operating Distance | 213.25 ft (65000 mm) |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Steel |
| Height | 0.80" (20.32 mm) |
| Width | 3.10" (78.74 mm) |
| Length | 7.20" (182.88 mm) |
| Weight (Approximate) | 13.83 oz (392 g) |
| Miscellaneous | |
| Package Contents | 4 Port High Resolution VGA Video Splitter - 350 MHz 4 x Rubber Feet 1 x Power Adapter 1 x Instruction Manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum resolution supported by this VGA splitter?
The StarTech.com ST124PRO supports maximum video resolution of 2048 x 1536 at 80Hz refresh rate. This high-resolution capability ensures crisp, detailed visuals for presentations, digital signage, and monitoring applications while maintaining compatibility with a wide range of display devices.
How many displays can I connect to this video splitter?
This splitter provides four VGA outputs, allowing you to connect up to four displays simultaneously to a single VGA video source. For larger installations, multiple splitters can be daisy-chained together to support virtually unlimited display expansion while maintaining signal quality across all connected monitors.
What is the maximum cable distance supported?
The splitter supports maximum VGA cable lengths up to 213.25 feet (65 meters) without signal degradation. This extended distance capability accommodates installations where displays are positioned far from the video source, eliminating the need for additional signal boosters or repeaters in most deployment scenarios.
Can I use this splitter with standard VGA cables?
Yes, the ST124PRO uses standard VGA monitor extension cables for both input and output connections. The splitter is compatible with commonly available VGA cables, making it easy to integrate into existing installations or set up new deployments without requiring specialized cabling.
What does daisy-chain capability mean for this product?
Daisy-chain capability allows you to connect multiple ST124PRO splitters in series, enabling distribution from a single video source to dozens of displays. This expansion method maintains video quality across all connected monitors and provides flexible scalability for large-scale installations without complex signal distribution equipment.
What certifications and compliance does this product have?
The ST124PRO is TAA (Trade Agreements Act) compliant, making it suitable for government procurement. It also meets EU RoHS environmental standards and complies with REACH and WEEE directives. The product carries a 2-year limited warranty from StarTech.com, providing assurance of quality and reliability for professional deployments.
