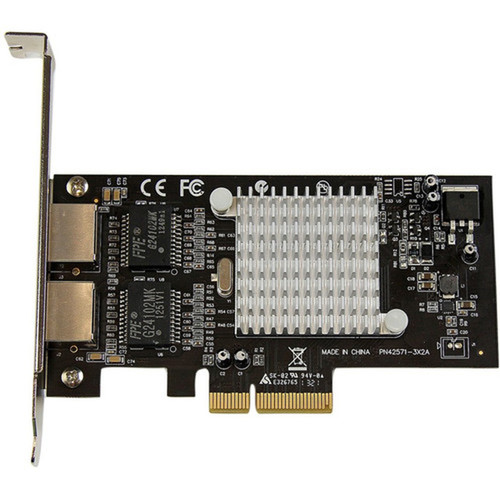

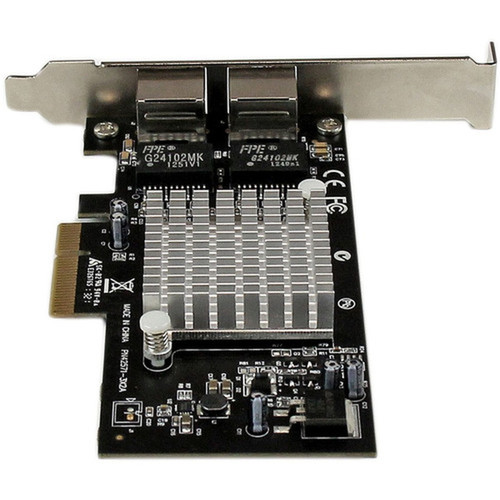

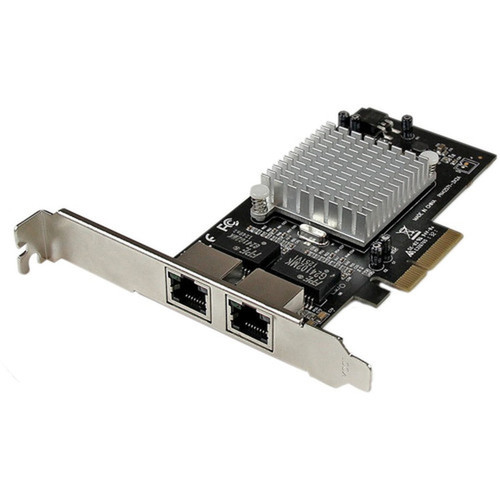

StarTech.com ST2000SPEXI Dual Port PCIe x4 Gigabit Ethernet Server Adapter - Intel i350 NIC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ST2000SPEXI implements a robust technical foundation with comprehensive protocol support and performance optimization features. The Intel i350-AM2 chipset provides enterprise-class reliability with hardware acceleration for virtualization workloads through Intel VT-c technology, including VMDq and SR-IOV capabilities for efficient virtual machine networking.
Network performance is enhanced through multiple offload engines, including Checksum Offload for IP, TCP, and UDP protocols, Transmit Segmentation Offload, and Large Send Offload. These features reduce CPU utilization during high-throughput network operations, freeing server resources for application processing. The adapter supports Jumbo Frames up to 9KB for improved efficiency in large data transfers.
Relevant factors for this section include Chipset Manufacturer, Chipset Model, Host Interface, Total Number of Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This adapter delivers enterprise networking capabilities with the reliability and feature set expected in professional server environments. The combination of Intel hardware and comprehensive standards compliance ensures stable operation across diverse network infrastructures.
Standards Compliance
Fully compliant with IEEE 802.3, 802.3u, 802.3ab, and 802.3ad (link aggregation) standards, with support for IEEE 802.1Q VLAN tagging for network segmentation and traffic management.
- Industry-standard interoperability
- Link aggregation for bandwidth combining
- VLAN support for network isolation
Virtualization Ready
Intel Virtualization Technology support enables efficient network resource allocation in virtualized environments, with SR-IOV allowing direct hardware access for virtual machines.
- Reduced virtualization overhead
- Improved VM network performance
- Hardware-assisted virtualization
Deployment / Use Cases
The ST2000SPEXI adapter serves multiple roles in modern IT infrastructure, from basic network expansion to advanced virtualization deployments. Its dual-port design and enterprise features make it suitable for various server and workstation applications.
In virtualization hosts, the adapter can dedicate one port to management traffic and another to VM data traffic, or utilize both ports in teaming configurations for increased bandwidth and redundancy. For file servers and backup systems, the dual ports enable separate connections to different network segments or storage networks. The included low-profile bracket allows installation in space-constrained 1U and 2U server chassis commonly found in data center environments.
Server Network Expansion
Add dedicated network interfaces for management, backup, or application traffic without consuming motherboard ports.
Virtualization Infrastructure
Provide hardware-accelerated networking for hypervisors with SR-IOV support for direct VM access to network resources.
Physical Profile

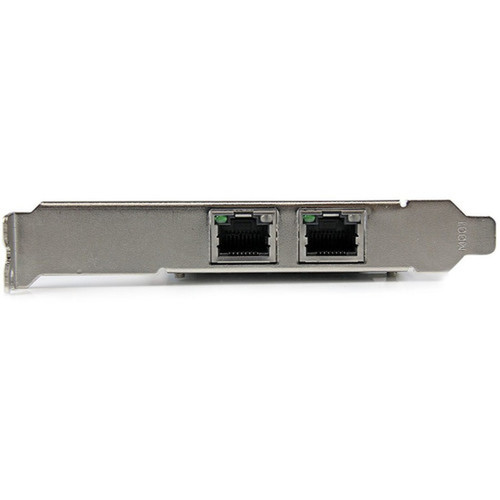

The adapter features a compact plug-in card design measuring 4.80" (121.92 mm) in height, 0.70" (17.78 mm) in width, and 2.60" (66.04 mm) in depth, with an approximate weight of 2.80 oz (79.38 g). This form factor fits standard PCI Express slots in tower servers, rackmount systems, and workstations. The card ships with both standard and low-profile brackets to accommodate full-height and half-height chassis configurations.
- Width
- 0.70" (17.78 mm)
- Depth
- 2.60" (66.04 mm)
- Height
- 4.80" (121.92 mm)
- Weight
- 2.80 oz (79.38 g)
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- Dual 10/100/1000Mbps RJ-45 Ethernet ports for network redundancy or bandwidth aggregation
- Intel i350-AM2 chipset delivers enterprise-grade reliability and performance
- PCI Express x4 interface compatible with x4, x8, and x16 slots
- Supports Intel Virtualization Technology (VT-c, VMDq, SR-IOV) for efficient VM networking
- Comprehensive standards compliance including IEEE 802.3, 802.3ad link aggregation, and 802.1Q VLAN
- Hardware offload engines reduce CPU utilization during network operations
- Jumbo Frame support up to 9KB for improved large data transfer efficiency
- Wake-on-LAN support for remote management capabilities
- Includes both standard and low-profile brackets for flexible installation
- Backed by a 2-year limited warranty from StarTech.com
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST2000SPEXI |
| Brand Name | StarTech.com |
| Product Name | 2 Port Network Card |
| Packaged Quantity | 1 Each |
| Product Type | Gigabit Ethernet Card |
| Technical Information | |
| Chipset Manufacturer | Intel |
| Chipset Model | I350-AM2 |
| Interfaces/Ports | |
| Host Interface | PCI Express x4 |
| Total Number of Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Data Transfer Rate | 8 Gbit/s |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 4.80" (121.92 mm) |
| Width | 0.70" (17.78 mm) |
| Depth | 2.60" (66.04 mm) |
| Weight (Approximate) | 2.80 oz (79.38 g) |
| Miscellaneous | |
| Package Contents | 2 Port Network Card 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual |
| Device Supported | Computer |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What type of PCI Express slot does this adapter require?
The ST2000SPEXI uses a PCI Express x4 interface but is physically and electrically compatible with x4, x8, and x16 PCIe slots. It complies with PCI Express Base Specification 2.1 and maintains backward compatibility with 1.0a and 1.1 specifications, ensuring broad compatibility with server and workstation motherboards.
Does this network adapter support link aggregation or teaming?
Yes, the adapter fully supports IEEE 802.3ad link aggregation (also known as port trunking or teaming). This allows both ports to be combined into a single logical interface for increased bandwidth or configured for failover redundancy. The feature works with compatible operating systems and network switches that support link aggregation protocols.
What virtualization features does the Intel i350 chipset provide?
The Intel i350-AM2 chipset includes Intel Virtualization Technology for Connectivity (VT-c), which encompasses Virtual Machine Device Queues (VMDq) and Single Root I/O Virtualization (SR-IOV). VMDq improves virtual machine network performance through hardware-assisted packet sorting, while SR-IOV allows direct hardware access for virtual machines, reducing virtualization overhead and improving network throughput in virtualized environments.
Can this adapter be installed in low-profile or half-height server chassis?
Yes, the adapter includes both a standard full-height bracket and a low-profile/half-height bracket in the package. The low-profile bracket allows installation in space-constrained 1U and 2U server chassis, workstations, and small form factor systems that require half-height expansion cards.
What offload capabilities does this network adapter support?
The adapter supports multiple hardware offload engines to reduce CPU utilization: Checksum Offload for IP, TCP, and UDP protocols; Transmit Segmentation Offload (TSO) for TCP and UDP; and Large Send Offload (LSO). These features enable the network controller to handle packet processing tasks that would normally burden the server CPU, improving overall system performance during network-intensive operations.
What is included in the warranty coverage for this product?
StarTech.com provides a 2-year limited warranty for the ST2000SPEXI network adapter. The warranty covers defects in materials and workmanship under normal use. The product also carries EU RoHS environmental certification and complies with Restriction of Hazardous Substances (RoHS 2), REACH, and WEEE directives for environmental responsibility.
