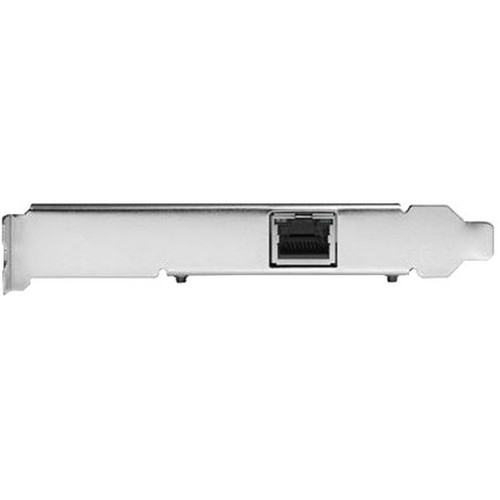

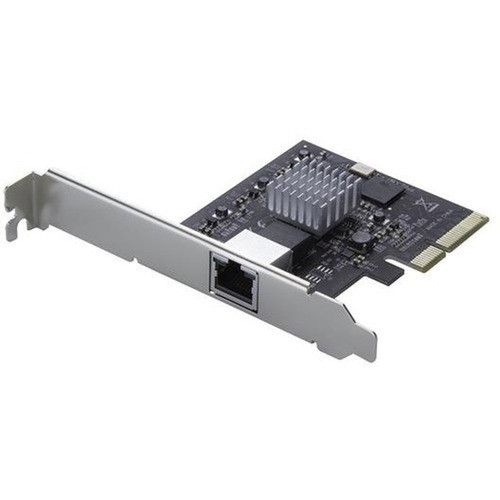

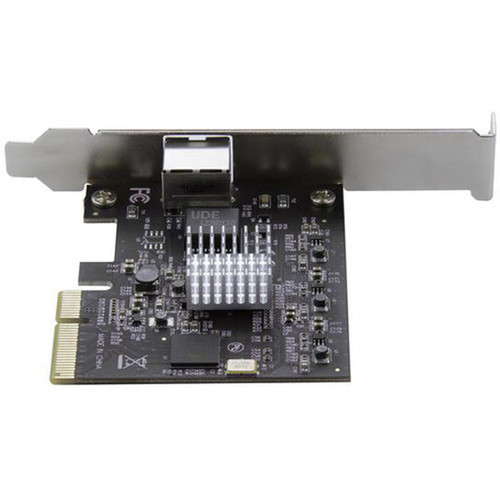

StarTech Multi Gigabit PCIe Network Card 1 Port StarTech.com Ethernet Provide Access NBASET And NIC ST5GPEXNB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 1 Port PCIe 4 Speed 5GBASE-T/NBASE T Ethernet Network Card
- 1 x Low-Profile Mounting Bracket
- 1 x Driver CD
- 1 x Instruction Manual
Host Interface: PCI Express x4
Total Number of Ports: 1
Number of Network (RJ-45) Ports: 1
Media Type Supported: Twisted Pair
Network Technology: 5GBase-T
Color Family: Black
Product Color: Black
Form Factor: Plug-in Card
Height: 0.80" (20.32 mm)
Width: 4.70" (119.38 mm)
Depth: 3.10" (78.74 mm)
Weight (Approximate): 4.90 oz (138.91 g)
Package Contents:
Device Supported: Server,Computer
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin: China
- 1 PORT 5GbE NETWORK CARD: Single port 5Gbps PCIe Network Adapter Card provides 5x speed of standard Gigabit Ethernet to desktop/server leveraging existing infrastructure of Cat5e, CAT6, or CAT6a cable
- TECH SPECS: 5 Gbps Multi-Gigabit
1x RJ45
5 / 2.5 / 1 Gbps
Tehuti - TN4010
NBASE-T & 5GBASE-T
PCIe 2.0 x4
9K Jumbo Frame
VLAN
Link Aggregation
IEEE 802.3az
Full & Low Profile - WIDE HYPERVISOR & OS COMPATIBILITY: Windows 7, 8, 8.1, 10; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions); MacOS (10.12 to 10.14); VMWare ESXi 5.0, 5.1+
- MULTI-GIGABIT CONNECTIVITY: 4-Speed Workstation NIC auto negotiates based on network configuration: 5G, 2.5G, 1G, 100Mbps; supports auto-MDIX, Wake-on-LAN (WoL), link aggregation, & VLAN tagging
- THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty and free lifetime 24/5 multilingual technical support based in North America on this PCI Express Network Interface Card
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST5GPEXNB |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 1 Port PCIe 4 Speed 5GBASE-T/NBASE T Ethernet Network Card |
| Packaged Quantity | 1 Each |
| Product Type | Gigabit Ethernet Card |
| Interfaces/Ports | |
| Host Interface | PCI Express x4 |
| Total Number of Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Network Technology | 5GBase-T |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Plug-in Card |
| Height | 0.80" (20.32 mm) |
| Width | 4.70" (119.38 mm) |
| Depth | 3.10" (78.74 mm) |
| Weight (Approximate) | 4.90 oz (138.91 g) |
| Miscellaneous | |
| Package Contents |
|
| Device Supported | Server,Computer |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
