StarTech. com C6ASPAT10BK 10ft CAT6A Shielded Ethernet Patch Cable - 10GbE Snagless RJ45100W PoE Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Cat6a cable delivers a data transfer rate of 10 Gbit/s, supporting high-bandwidth applications and future-proofing network infrastructure. The 26 AWG stranded copper conductors are UL rated (E132276-A) for safe Power over Ethernet operation up to 100W, compliant with IEEE 802.3bt and DTE power standards to prevent cable heating. The cable structure uses four twisted pairs with individual shielding to reduce Near-End Crosstalk (NEXT) and maintain signal integrity over the full 10-foot length.
Connectors are plated with 50-micron gold for optimal conductivity and corrosion resistance, ensuring long-term reliability in various environments. The CMG-rated PVC jacket provides durability and flexibility, while the black color offers a professional appearance. The cable is environmentally friendly, complying with RoHS 2, REACH, and WEEE directives, and backed by a lifetime warranty from StarTech.com.
Key Product Advantages
This cable combines advanced shielding, high-speed performance, and PoE support in a durable patch cord designed for professional networking. The shielded construction protects against electromagnetic interference, ensuring consistent 10GbE speeds even in electrically noisy environments. Gold-plated connectors and strain relief features enhance durability and prevent signal degradation over time.
High-Speed Connectivity
Supports 10 Gigabit Ethernet for fast data transfers, video streaming, and large file backups, meeting ANSI/TIA-568.2-D standards for reliable performance.
- 10 Gbit/s data rate
- ANSI/TIA-568-B.2-10 compliant
- ETL verified
Power over Ethernet Ready
Delivers up to 100W of power to connected devices, eliminating the need for separate power adapters and simplifying installations for VoIP systems and security cameras.
- IEEE 802.3bt compliant
- UL rated wiring
- Prevents cable heating
Durable Design
Features snagless boots for easy installation and removal, gold-plated connectors for corrosion resistance, and a CMG PVC jacket for long-lasting use in office or data center settings.
- Snagless boot
- Gold-plated connectors
- CMG jacket rating
Deployment / Use Cases
Ideal for upgrading existing networks to 10GbE standards, this cable is perfect for connecting switches to servers, routers to workstations, or patch panels to network devices in enterprise environments. Its PoE capability makes it suitable for deploying powered devices like IP phones, wireless access points, and surveillance cameras without additional power cables.
Use this shielded Cat6a patch cable in data centers, office networks, or home labs where reliable high-speed connections and interference protection are critical. The 10-foot length provides flexibility for rack-mounted equipment or desktop setups, while the black color blends seamlessly with most networking hardware.
Data Center Patching
Connect servers, storage arrays, and network switches in rack environments with shielded cables that reduce crosstalk and maintain 10GbE performance over short distances.
PoE Device Installation
Power and connect VoIP phones, security cameras, or Wi-Fi access points with a single cable, simplifying wiring and reducing clutter in office or commercial installations.
Physical Profile

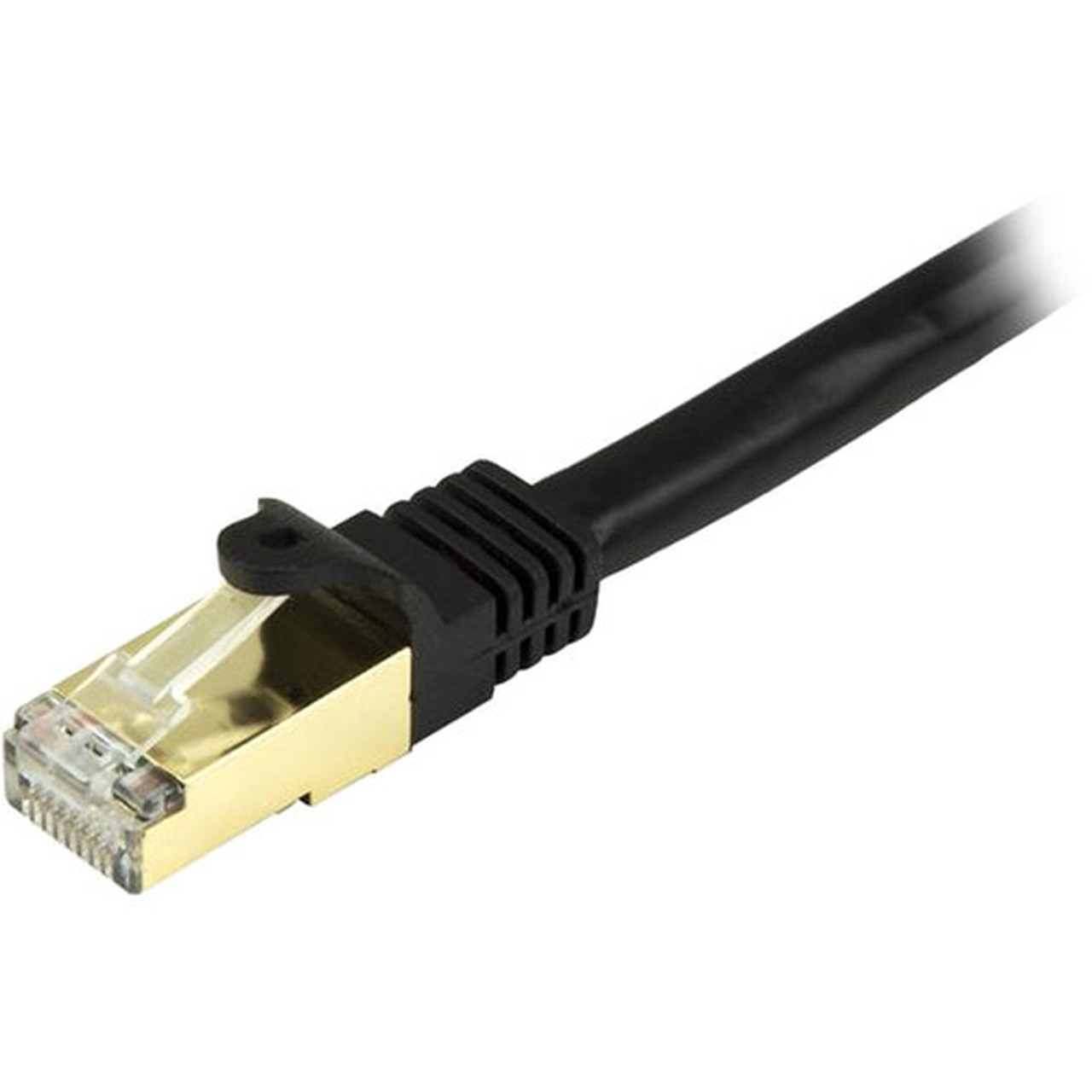

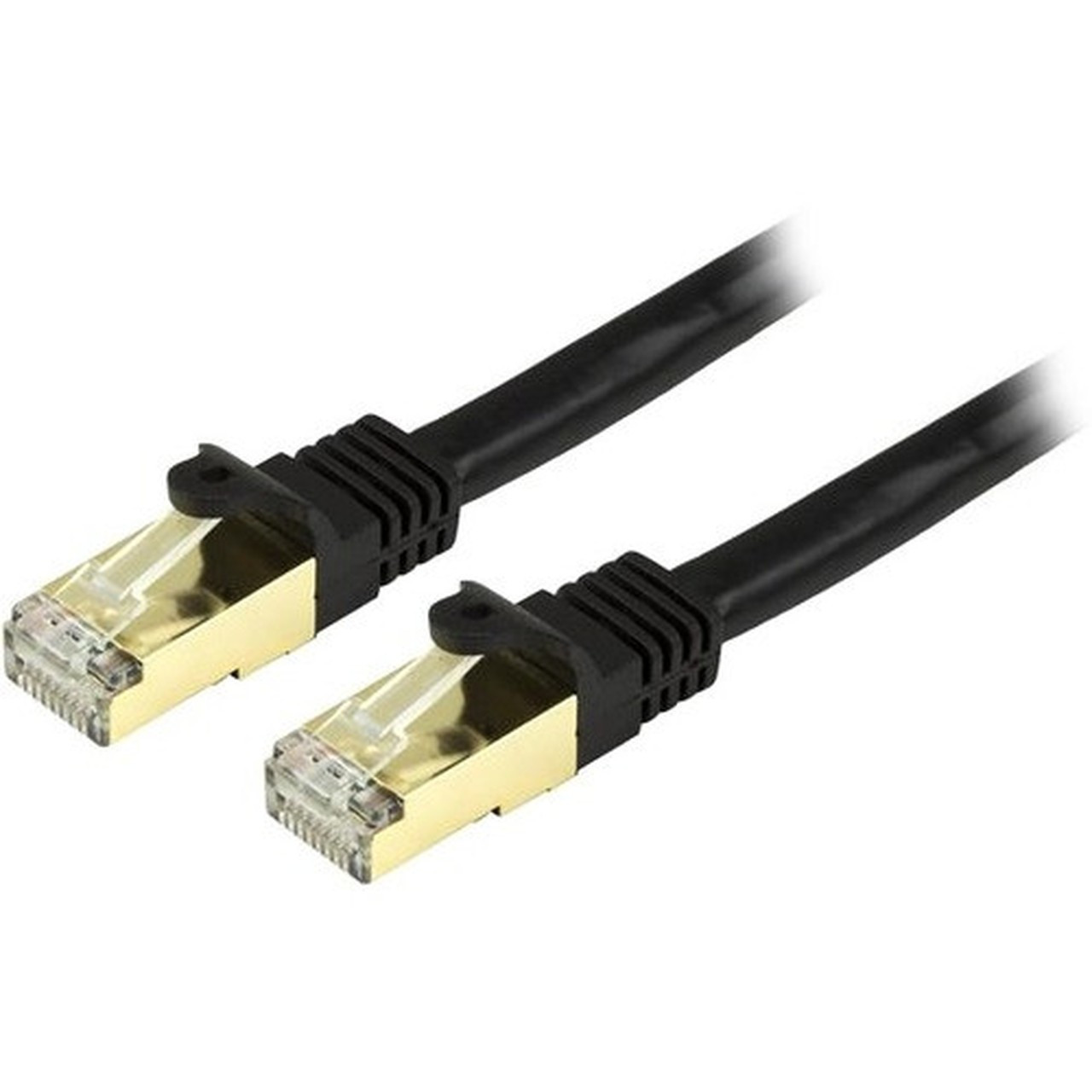

This patch cable has a length of 10 feet (3.05 meters) and weighs approximately 4.30 ounces (121.90 grams), making it easy to handle and install in tight spaces. The black PVC jacket is durable and flexible, suitable for routing through conduits or cable management systems. The snagless boots on both RJ45 connectors prevent catching on other cables or equipment during installation or maintenance.
- Weight
- 4.30 oz (121.90 g)
- Length
- 10 ft (3.05 m)
Highlights
- 10 Gigabit Ethernet performance for high-speed network connections
- Shielded twisted pair construction reduces EMI/RFI interference
- Supports Power over Ethernet up to 100W for powered devices
- Snagless boot design prevents accidental disconnection
- Gold-plated RJ45 connectors ensure reliable signal transmission
- CMG-rated PVC jacket for durability and flexibility
- Compliant with ANSI/TIA-568-B.2-10 Category 6a standards
- Lifetime warranty for long-term peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | C6ASPAT10BK |
| Brand Name | StarTech.com |
| Product Name | 10 ft Black Shielded Snagless 10 Gigabit Cat 6a STP Patch Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Characteristic | Patch Cable |
| Cable Length | 10 ft (3.05 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Jacket Type | CMG |
| Device Supported | Network Device,Hub,Switch,Router,Print Server,Patch Panel,Computer |
| American Wire Gauge | 26 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless |
| Features | EMI/RF Protection,PoE,Strain Relief,Minimized Near-End Crosstalk (NEXT),Rust Proof,Corrosion Resistant,Break Resistant |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 4.30 oz (121.90 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data speed supported by this Cat6a cable?
This cable supports data transfer rates up to 10 Gbit/s (10 Gigabit Ethernet), making it suitable for high-bandwidth applications like video streaming, large file transfers, and network backups. It complies with ANSI/TIA-568-B.2-10 standards for reliable 10GbE performance over its 10-foot length.
Does this Ethernet cable support Power over Ethernet (PoE)?
Yes, this cable supports Power over Ethernet up to 100W, compliant with IEEE 802.3bt and DTE power standards. The 26 AWG copper conductors are UL rated for safe PoE operation, allowing you to power devices like VoIP phones and security cameras directly through the network connection.
What does 'shielded' mean for this patch cable?
Shielded refers to the cable's construction, which includes individual shielding around each twisted pair to protect against electromagnetic interference (EMI) and radio frequency interference (RFI). This shielding minimizes Near-End Crosstalk (NEXT) and ensures stable network performance in environments with electrical noise.
What are the benefits of the snagless boot design?
The snagless boot prevents the connector's retention clip from catching on other cables, ports, or wiring conduits during installation or removal. This design makes it easier to connect and disconnect the cable in crowded network racks or patch panels without damaging the connector or surrounding equipment.
What devices can I connect with this patch cable?
This cable is designed to connect network devices such as switches, routers, hubs, print servers, patch panels, and computers. It uses standard RJ45 connectors on both ends, making it compatible with most Ethernet-enabled equipment for creating reliable wired network connections.
What warranty does StarTech.com offer for this cable?
StarTech.com provides a lifetime warranty for this Cat6a patch cable, covering defects in materials and workmanship for the product's lifespan. This warranty ensures long-term reliability and support for your networking investments.
